MVA to kVA Calculator: Formula, Sizing & Substation Guide

Quick answer: To convert MVA to kVA, multiply the power value by 1,000 (kVA = MVA × 1,000). Conversely, divide kVA by 1,000 to obtain MVA. This fundamental mathematical conversion scales apparent power between utility-scale transmission systems and plant-level distribution equipment without altering the circuit power factor.

In electrical power engineering, apparent power defines the absolute carrying requirement for magnetic cores, conductors, switchgear busbars, and protection apparatus. While utility interconnections, generation units, and transmission grid substations express operational capacity in megavolt-amperes (MVA), medium-voltage distribution networks, industrial plant panels, and factory-floor step-down units traditionally specify capacities in kilovolt-amperes (kVA). An engineer evaluating feeder interfaces or sizing primary transformers must move fluidly between these scales to prevent costly switchgear under-sizing or thermal overloading.

Converting between these units forms the baseline for calculating full-load line currents, prospective short-circuit currents, and protective relay settings. Using an analytical approach or an mva to kva calculator ensures that plant engineers, engineering, procurement, and construction (EPC) contractors, and panel builders translate system capacities accurately across every level of the electrical single-line diagram (SLD). For a broader foundation on rating principles, consult our kVA calculator substation sizing guide.

The MVA to kVA Conversion Formula and Fundamental Principles

The mathematical relationship governing an mva to kva conversion relies on the standard International System of Units (SI) metric prefixes, where kilo represents 10³ and mega represents 10⁶.

Apparent power, designated by the variable S, represents the product of the root-mean-square (RMS) voltage and RMS current in an alternating current (AC) circuit. Because apparent power encompasses both active power (P, measured in kW or MW) and reactive power (Q, measured in kVAR or MVAR), the conversion between MVA and kVA operates independently of load power factor ($\\cos \\phi$). Per IEC 60076-1 clause 4.1, rated power refers to apparent power, meaning transformer nameplates express total capacity rather than purely resistive thermal dissipation.

The exact mathematical formulas are:

$$\\text{Apparent Power (kVA)} = \\text{Apparent Power (MVA)} \\times 1,000$$

$$\\text{Apparent Power (MVA)} = \\frac{\\text{Apparent Power (kVA)}}{1,000}$$

Confusion frequently arises when engineers conflate apparent power ratings with active power demands. A 5 MVA grid connection delivering power to an industrial site operating at an inductive power factor of 0.85 supplies 5,000 kVA of apparent power, but only 4,250 kW of active mechanical and thermal work. Equipment such as power transformers and switchgear must be physically sized to withstand the full 5,000 kVA of thermal and magnetic stress. Understanding that transformers are rated by their capacity in kVA clarifies why an accurate unit transition is critical for specifying conductor cross-sections and busbar profiles.

Step-by-Step Guide: How to Use an MVA to kVA Calculator

Using an mva to kva calculator or performing the calculation manually requires a structured procedure to translate baseline nameplate values into practical line parameters for equipment specification.

1. Identify the system apparent power: Extract the continuous rated apparent power in MVA from the utility interconnect agreement, generation schedule, or front-end engineering design (FEED) study.
2. Execute the base conversion: Multiply the MVA figure by 1,000 to determine the total capacity in kVA (e.g., $12.5 \\text{ MVA} \\times 1,000 = 12,500 \\text{ kVA}$).
3. Determine operating line-to-line voltages: Record the primary line-to-line voltage ($V_{\\text{HV}}$) and secondary line-to-line voltage ($V_{\\text{LV}}$) in kilovolts (kV).
4. Calculate rated full-load currents: Apply the three-phase current formula to derive the rated operational currents for both winding configurations:$$I_{\\text{FLA}} = \\frac{S_{\\text{kVA}}}{\\sqrt{3} \\times V_{\\text{LL(kV)}}}$$
5. Verify short-circuit duty: Obtain the transformer percentage impedance (%Z) from the factory test certificate or design specification per IEEE C57.12.00 Table 5. Calculate prospective symmetrical fault levels by dividing converted kVA by per-unit impedance ($Z_{\\text{pu}} = \\%Z / 100$).
6. Check equipment compatibility: Cross-reference the resulting secondary kVA and current values against the continuous thermal ratings of outgoing HV/LV switchgear panels.

MVA to kVA Conversion Table for Standard Substation Ratings

Standard utility distribution substations and industrial intake stations operate across fixed ratings established by international manufacturing conventions. The following table provides direct mva to kva conversion figures alongside full-load currents across standard operating voltages (33 kV primary and 11 kV or 415 V secondary), enabling rapid cross-referencing during network design.

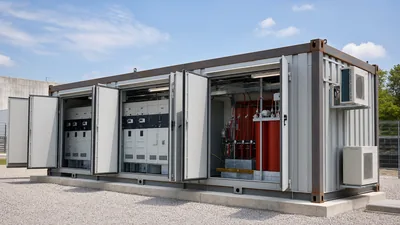

As demonstrated in the table, ratings above 5,000 kVA (5 MVA) are rarely stepped down directly to 415 V due to busbar thermal dissipation limits and the extreme fault-current interruption thresholds required for low-voltage breakers. Instead, large industrial setups deploy a unit substation engineering guide approach, stepping down 33 kV to intermediate 11 kV or 6.6 kV distribution networks before final transformation.

Worked Engineering Example: Substation Transformer and Switchgear Sizing

A worked engineering calculation demonstrates how converting MVA to kVA governs downstream apparatus selection for an industrial processing facility.

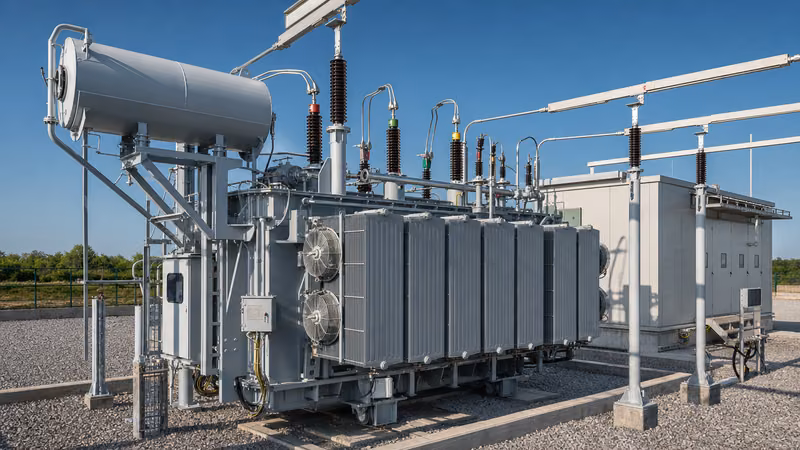

Consider an intake substation supplied by a 132 kV transmission line stepping down to a 33 kV internal distribution busbar. The plant demands a maximum continuous operational capacity of 20 MVA. The specified oil-immersed transformer has a nameplate impedance of $Z = 10.0\\%$ on its 20 MVA base, constructed in accordance with IEC 60076-1.

Step 1: Apparent Power Conversion
Convert the primary MVA rating into kVA:$$S = 20 \\text{ MVA} \\times 1,000 = 20,000 \\text{ kVA}$$

Step 2: Primary and Secondary Full-Load Amperage (FLA)
Calculate the primary (132 kV) full-load current:$$I_{\\text{primary}} = \\frac{20,000 \\text{ kVA}}{\\sqrt{3} \\times 132 \\text{ kV}} = \\frac{20,000}{228.63} = 87.48 \\text{ A}$$Calculate the secondary (33 kV) full-load current:$$I_{\\text{secondary}} = \\frac{20,000 \\text{ kVA}}{\\sqrt{3} \\times 33 \\text{ kV}} = \\frac{20,000}{57.16} = 349.91 \\text{ A}$$

Step 3: Fault Level Calculation
Assuming an infinite grid bus at the 132 kV utility connection point, the symmetrical short-circuit apparent power ($S_{\\text{sc}}$) is governed strictly by the transformer percentage impedance ($Z_{\\text{pu}} = 0.10$):$$S_{\\text{sc}} = \\frac{S_{\\text{kVA}}}{Z_{\\text{pu}}} = \\frac{20,000 \\text{ kVA}}{0.10} = 200,000 \\text{ kVA} = 200 \\text{ MVA}$$Now calculate the secondary symmetrical short-circuit current ($I_{\\text{sc}}$):$$I_{\\text{sc}} = \\frac{I_{\\text{secondary}}}{Z_{\\text{pu}}} = \\frac{349.91 \\text{ A}}{0.10} = 3,499.1 \\text{ A} \\approx 3.50 \\text{ kA}$$

Step 4: Switchgear Specification
Using these derived parameters, the design engineer specifies a 33 kV indoor vacuum switchboard. The circuit breaker continuous current rating must exceed 349.91 A under de-rated ambient conditions (selecting a standard 630 A or 1,250 A frame). The breaking capacity must exceed 3.50 kA; standard switchgear ratings of 16 kA or 25 kA per IEC 62271-100 will comfortably clear the fault energy. For comprehensive breaker sizing methodologies, review our circuit breaker ratings substation guide.

Specification Pitfalls: When MVA and kVA Misalign with System Realities

Failure to correctly evaluate MVA and kVA relationships during design leads to operational failures, nuisance tripping, and rejected equipment at site acceptance testing (SAT).

A widespread specification error involves ignoring transformer thermal cooling stages. Dual-rated transformers feature progressive capacities based on cooling modes, typically marked on nameplates as ONAN/ONAF (Oil Natural Air Natural / Oil Natural Air Forced). A unit rated at 15/20 MVA operates as a 15,000 kVA unit under passive convective cooling, only achieving its 20,000 kVA rating when auxiliary fans engage. If the intake switchgear and incomer cables are sized purely for 15,000 kVA, engaging the forced-air cooling stage overloads the balance-of-plant conductors and trips incomer protection relays.

Another common mistake relates to site derating factors. Under IEC 60076-1 clause 5.1.2, standard transformer capacity assumes an ambient temperature not exceeding 40°C and an installation altitude below 1,000 metres above sea level. If an EPC specifies a standard 2,500 kVA (2.5 MVA) unit for an arid mining environment at 1,800 metres with 45°C ambient peaks, its effective continuous capacity drops significantly due to lower air density and diminished cooling efficiency. The factory must engineer a unit with larger cooling radiators and upgraded core configurations to guarantee an actual 2,500 kVA throughput on site.

Next steps: specifying and sourcing

Accurate apparent power calculations form the bedrock of robust electrical infrastructure procurement. When preparing a request for quotation (RFQ) for utility or industrial projects, include your primary single-line diagram, nominal operating voltages, required continuous MVA or kVA capacity, winding vector groups, and site environmental constraints. Explore our engineered transformer substations and high-reliability power transformers built to IEC and IEEE standards. You can submit your site data and technical specifications directly via our substation quote portal to receive factory-direct engineering review and equipment schedules.
