Transformer Relay Guide: Protection Schemes & Sizing

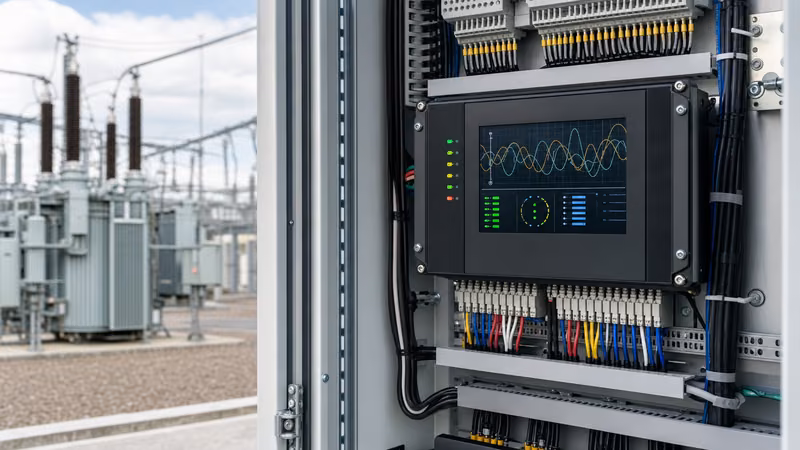

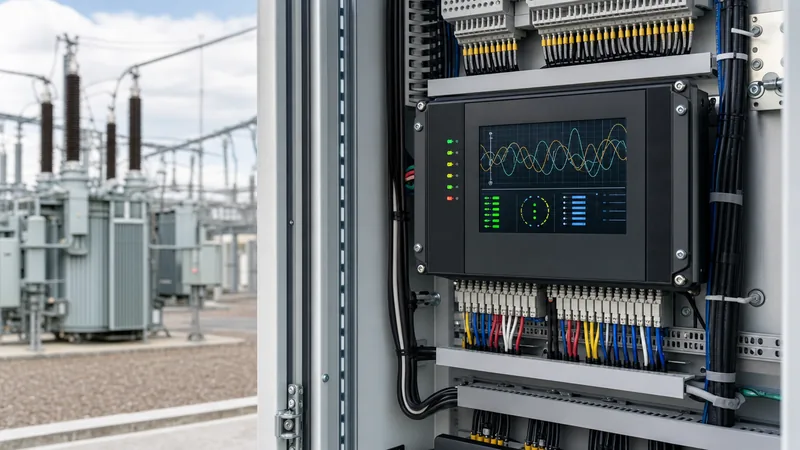

Quick answer: A transformer relay is an intelligent electronic device (IED) or electromechanical mechanism that continuously monitors voltages, currents, temperatures, and internal tank pressures to protect power and distribution transformers from internal faults, system disturbances, and thermal damage. It coordinates instantaneous isolation via upstream and downstream circuit breakers within tens of milliseconds.

Industrial plants, utility substations, and commercial distribution networks rely on transformers as capital-intensive, critical infrastructure. When an insulation breakdown, inter-turn winding fault, or sustained through-fault develops, the physical forces and thermal energy can rupture tanks, destroy laminations, and cause catastrophic fire hazards. Selecting, configuring, and commissioning the proper transformer protection relay architecture is the primary defense against prolonged downtime and equipment loss. For broader substation architectures, refer to our comprehensive transformer protection engineering guide.

Transformer Protection Relay Working Principles and ANSI Codes

A modern numerical transformer protection relay aggregates multiple discrete sensing functions into a single multifunction platform governed by international standards such as IEEE C37.91 and IEC 60255-151.

Unlike simple feeder protection, a transformer relay must accommodate physical realities unique to magnetic circuits: unequal voltage ratios across primary and secondary windings, transformer winding phase shifts (such as Dyn11 or Yd1), magnetising inrush currents drawing up to 8 to 12 times rated current upon energisation, and on-load tap changer (OLTC) ratio variations. Modern digital relays sample analogue current and voltage signals via high-speed analogue-to-digital converters, compute discrete Fourier transform (DFT) phasors, and execute mathematical protection algorithms in real time.

Key ANSI protection functions integrated into an industrial or utility transformer relay scheme include:

• ANSI 87T (Restrained Differential Protection): The primary high-speed protection for internal phase-to-phase and phase-to-earth faults within the zone bounded by current transformers.
• ANSI 87N / 64R (Restricted Earth Fault): High-sensitivity zero-sequence protection covering earth faults close to the transformer winding neutral point where differential sensitivity drops.
• ANSI 50/51 & 50N/51N (Overcurrent & Earth Fault): Instantaneous and time-delayed backup protection against external through-faults and severe busbar short circuits, discussed further in our guide to transformer overcurrent protection.
• ANSI 49 (Thermal Overload): Mathematical thermal replica modelling based on IEC 60076-7, estimating winding hot-spot temperatures from measured load current and ambient temperature sensors.
• ANSI 24 (Volts-per-Hertz / Overexcitation): Protects magnetic cores from flux saturation, overheating, and eddy-current burning caused by excessive voltage or depressed system frequency.
• ANSI 63 (Buchholz / Sudden Pressure Relay): Mechanical fault detection detecting gas accumulation and oil surge pulses from arcing inside liquid-filled tanks.

Differential Protection (ANSI 87T) Slope Sizing and Setting Calculation

Biased percentage differential protection forms the core algorithm of any main transformer relay, calculating a differential operating current ($I_{diff}$) and a restraining current ($I_{rest}$) across all transformer terminals.

To prevent false tripping during external through-faults—where high currents cause dissimilar current transformer (CT) saturation—relays apply a dual-slope, dual-breakpoint characteristic. Below is a worked engineering calculation for a 20 MVA, 33/11 kV, Dyn11 oil-immersed transformer fitted with an OLTC having a regulation range of $\pm 10\%$ in 16 steps.

Step 1: Calculate Rated Primary Currents

$$I_{rated, HV} = \frac{S}{\sqrt{3} \times V_{HV}} = \frac{20{,}000\text{ kVA}}{\sqrt{3} \times 33\text{ kV}} = 349.9\text{ A}$$

$$I_{rated, LV} = \frac{S}{\sqrt{3} \times V_{LV}} = \frac{20{,}000\text{ kVA}}{\sqrt{3} \times 11\text{ kV}} = 1049.7\text{ A}$$

Step 2: Select Current Transformer Ratios

To avoid saturation at continuous overload ratings (120% of nominal rating), standard CT ratios are chosen:

• HV CT Ratio: 400/1 A (giving nominal secondary current $I_{sec, HV} = 349.9 / 400 = 0.875\text{ A}$)
• LV CT Ratio: 1200/1 A (giving nominal secondary current $I_{sec, LV} = 1049.7 / 1200 = 0.875\text{ A}$)

The relay automatically normalises these secondary values to 1.0 per unit ($I_{pu}$) using software scaling factors.

Step 3: Determine Minimum Pick-up ($I_{s1}$)

The minimum differential pick-up current must exceed magnetising steady-state current and relay measurement errors. Set $I_{s1} = 0.20\text{ pu}$ (20% of nominal transformer current).

Step 4: Calculate Slope 1 ($K_1$) Setting

Slope 1 covers normal operating conditions including steady-state CT errors, relay tolerances, and the full range of the tap changer:

• OLTC maximum excursion error: $\pm 10\% = 0.10\text{ pu}$
• Class 5P20 CT steady-state ratio error: $3\% = 0.03\text{ pu}$ per side ($0.06\text{ pu}$ total)
• Relay measurement error margin: $0.04\text{ pu}$
• Safety contingency margin: $0.05\text{ pu}$

$$\text{Slope } 1 = 0.10 + 0.06 + 0.04 + 0.05 = 0.25\text{ (or } 25\%)$$

Breakpoint 1 ($I_{b1}$) is typically established at $1.0\text{ pu}$ or $1.25\text{ pu}$ to transition into high-fault restraint.

Step 5: Calculate Slope 2 ($K_2$) Setting

Slope 2 addresses severe external through-faults exceeding twice rated current ($I_{rest} > 2.0\text{ pu}$), where asymmetrical fault DC offsets drive CT cores toward deep saturation. Standard practice sets Slope 2 between $50\%$ and $70\%$. Setting $\text{Slope } 2 = 60\%$ guarantees stability under maximum prospective busbar through-fault levels.

Step 6: Harmonic Restraint Thresholds

To block operation during energisation inrush, activate cross-blocking 2nd harmonic filtering set at $15\%$ of fundamental current. For overfluxing conditions, configure 5th harmonic blocking set at $35\%$ in accordance with IEEE C37.91 Clause 8.4.

Mechanical vs Electrical Transformer Relay Schemes

A dependable protection scheme pairs electrical multifunction relays with mechanical, tank-mounted instruments to deliver comprehensive fault isolation across all failure modes.

While electrical relays sample secondary current and voltage signals, mechanical protective relays detect the physical byproducts of an insulation fault: gas evolution, rapid pressure waves, liquid displacement, and thermal expansion. Neither category alone provides full protection; for instance, high-impedance inter-turn winding faults generate negligible current changes detectable by an 87T electrical element, but generate immediate gas bubbles captured by a Buchholz relay.

To examine standard relay types and internal hardware layouts, explore our practical guide to protector relay selection.

Current Transformer Sizing and CT Matching for Transformer Relays

Correct current transformer specification prevents false differential relay operations caused by saturation or ratio mismatches under external short circuits.

When modernising installations or specifying new high-voltage substations, engineers must address three primary CT matching criteria:

• Software Ratio and Phase Compensation: Legacy electromechanical relays required physical delta-connected auxiliary CTs on star windings (and vice versa) to balance secondary currents and cancel phase shifts. Modern numerical relays execute phase angle correction (e.g., $30^\circ$ displacement for Dyn11) and magnitude balancing directly inside the firmware algorithm, allowing all primary CTs to be connected in star (wye).
• CT Knee-Point Voltage ($V_k$): In accordance with IEC 61869-2 Class PX or IEEE C57.13 Class C ratings, the CT knee-point voltage must be sized to withstand the maximum DC offset during an external fault without saturating during the first few cycles. The required knee-point voltage is calculated as: $$V_k \ge 2 \times I_{f,max} \times (R_{ct} + 2R_l + R_b)$$ where $I_{f,max}$ is secondary fault current, $R_{ct}$ is internal CT secondary resistance, $R_l$ is one-way lead resistance, and $R_b$ is the relay input burden.
• Polarity Verification: Inverted CT secondary wiring on either side of the transformer inverts the current vector. This creates a virtual internal fault equal to twice the load current, resulting in instantaneous tripping upon initial energisation. Primary-to-secondary polarity marks ($P_1/P_2$ or $H_1/H_2$) must face consistently toward or away from the protected zone.

Step-by-Step Commissioning and Testing Procedure for a Transformer Relay

A disciplined commissioning procedure confirms relay algorithm logic, wiring integrity, trip circuit paths, and CT circuit health prior to primary energisation.

1. Secondary Injection and Ratio Verification: Verify the secondary scaling of the transformer relay by injecting single-phase and three-phase currents via a calibrated secondary test set. Confirm that measured secondary currents, calculated primary engineering units, and phase angle readouts precisely match test injection vectors.
2. Slope 1 and Slope 2 Pickup Testing: Inject steady restraint currents while slowly ramping differential currents to chart the operating boundary. Verify that pick-up points match the calculated settings ($I_{s1}$, Slope 1, Breakpoint, and Slope 2) within manufacturer tolerances (typically $\pm 5\%$).
3. Harmonic Restraint Validation: Inject a composite waveform containing fundamental ($50\text{ Hz}$ or $60\text{ Hz}$) and $100\text{ Hz}$ / $120\text{ Hz}$ components. Confirm that the differential element is restrained from operating when the 2nd harmonic content reaches or exceeds the configured setpoint (e.g., $15\%$), proving inrush stability.
4. Trip Circuit Supervision and Breaker Interlock Checks: Verify binary input and output matrix mappings. Inject an artificial fault to trip both primary and secondary circuit breakers simultaneously, ensuring breaker failure initiation (ANSI 50BF) and lockout relay (ANSI 86) operation.
5. Primary On-Load Stability Measurement: Following initial system energisation without load, apply balanced low-voltage circulating currents or modest actual feeder load. Read the differential current on the relay display interface; the operating current ($I_{diff}$) must register near zero (typically $< 0.02\text{ pu}$), confirming correct CT polarity and vector group software settings.

Specification Checklist for RFQs and Engineering Design

Engineers preparing technical specifications for equipment tenders should include unambiguous relay parameters to avoid procurement variations and field commissioning delays.

To align relay parameters with wider switchgear schemes, review our guide on substation protection schemes.

Next steps: specifying and sourcing

When specifying or retrofitting a transformer protection relay, providing precise transformer rating plates, prospective fault levels, and CT secondary parameters ensures factory configurations match your system characteristics. Whether sourcing medium-voltage protection cabinets or turnkey power transformers, matching protective IEDs with robust transformer substations and high-reliability oil-immersed transformers delivers dependable operational safety. Contact our factory application engineers directly through our request a quote page to discuss custom relay panels, scheme calculations, and factory acceptance testing protocols.
