What is a Utility Transformer and How Does It Operate?
A utility transformer is an electromagnetic device that converts medium-voltage distribution electricity into a usable, lower voltage through mutual inductive coupling between isolated primary and secondary windings. In a typical electrical utility distribution network, electricity travels across primary distribution lines at medium voltages (MV)—commonly 11 kV, 13.8 kV, 22 kV, or 34.5 kV—to minimise resistance-induced $I^2R$ power losses across vast distribution radii.
The transformer core, manufactured from high-permeability, cold-rolled grain-oriented (CRGO) silicon steel or amorphous metal alloys, provides a low-reluctance path for alternating magnetic flux. When medium-voltage alternating current excites the primary winding, it induces a time-varying magnetic field in the core per Faraday's law of electromagnetic induction ($e = -N \frac{d\Phi}{dt}$). This flux links with the secondary winding, producing a proportional secondary voltage based on the turns ratio ($N_p / N_s = V_p / V_s$).
For residential service, single-phase transformers often feature a centre-tapped secondary winding that provides three-wire service: two 120V line-to-neutral legs and one 240V line-to-line phase for heavy appliances. In three-phase utility systems, vector groups such as Dyn11 or YNyn0 step down three-phase distribution lines to 400V/230V or 480V/277V supplies. Reliable continuous operation depends on precise design parameters, including impedance voltage ($%Z$), thermal insulation class, and liquid dielectric insulation to handle daily cycling loads defined by grid transmission and distribution standards.
Utility Transformer Types: Overhead Pole-Mounted vs Pad-Mounted Substations
Utility transformers are classified primarily by their mechanical construction and mounting method: overhead pole-mounted units for aerial distribution lines, and ground-level pad-mounted compartmental transformers for underground residential distribution (URD) circuits.
Overhead pole-mounted designs house the active core-and-coil assembly in a cylindrical, sealed steel tank suspended from wooden, concrete, or steel utility poles. Because these units operate in open air, they use natural air convective cooling across the tank surface. They are suited for rural and semi-urban distribution grids with aerial conductors, offering low installation costs and simple visual inspection. However, pole-mounted units remain exposed to lightning strikes, vehicle impacts, avian interference, and high winds.

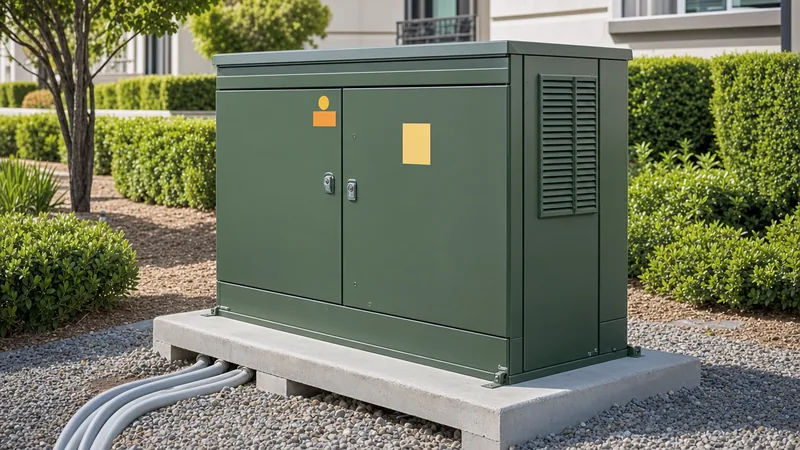

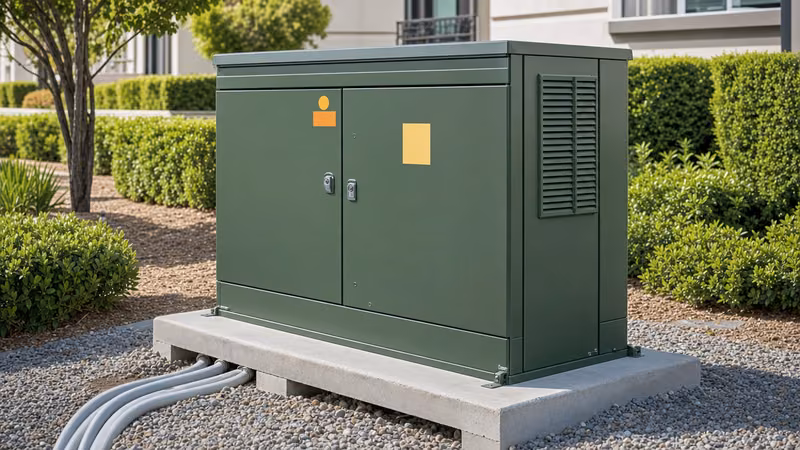

In contrast, pad-mounted transformers are installed at ground level on concrete pads, completely enclosed within tamper-resistant, grounded steel enclosures divided into distinct high-voltage and low-voltage compartments. These compartmental designs comply with strict security requirements (such as IEEE C57.12.28 for enclosure integrity), preventing unauthorised public access. They integrate dead-front primary bushings, elbow arresters, and internal loop-feed switching, making them the industry standard for modern suburban housing estates, shopping centres, and commercial parks.
| Engineering Parameter | Pole-Mounted Transformer | Pad-Mounted Compartmental | Substation Base-Mounted |
|---|---|---|---|
| Standard Rating Range | 5 kVA to 500 kVA | 45 kVA to 5,000 kVA | 500 kVA to 31,500 kVA |
| Primary Voltage Range | 2.4 kV to 34.5 kV | 4.16 kV to 34.5 kV | 11 kV to 110 kV+ |
| Secondary Voltage | 120/240V, 240/480V, 415/240V | 208Y/120V, 480Y/277V, 415Y/240V | 400V to 34.5 kV |
| Cooling Class (IEC / IEEE) | ONAN | ONAN / KNAN | ONAN / ONAF / OFAF |
| Standard Enclosure / Tank | Sealed round tank (IP55) | Tamper-resistant cabinet (IP54) | Heavy-gauge tank with conservator |
| Primary Connection Interface | Live-front / exposed porcelain | Dead-front shielded elbow (IEEE 386) | Air terminal box / outdoor bushings |
| Typical Applications | Rural grids, aerial urban feeders | Underground residential, commercial | Utility intake, heavy industrial |
To view standard manufactured configurations, examine our dedicated range of pad-mounted transformers and heavy-duty pole-mounted transformers built for international grid operators.
Household Transformer Sizing and Residential Load Calculations
Sizing a household transformer or collective residential supply bank requires calculating the aggregated maximum demand of all connected residences while applying a verified diversity factor.
A single home transformer does not need to equal the arithmetic sum of every household's main service breaker rating. Because residential appliances do not run concurrently at full nameplate draw, engineers apply diversity factors ($DF$) and coincidence factors per regional distribution standards or IEC 60076 loading guides. To correctly size an electrical transformer residential distribution node, engineers follow this standard procedure:
- Determine Individual Dwelling Load: Compute the diversified demand per dwelling based on heating, ventilation, air conditioning (HVAC), continuous baseload, cooking appliances, and electric vehicle supply equipment (EVSE), typically yielding 8 kVA to 15 kVA per modern household.
- Aggregate Connected Dwellings: Multiply the single-dwelling demand by the total number of connected homes ($N$). For instance, 10 homes at 12 kVA base demand yield 120 kVA total connected load.
- Apply Coincidence Factor: Apply a standard coincidence factor ($CF$) based on customer count (for $N = 10$, $CF$ typically ranges from 0.35 to 0.45), reducing the effective simultaneous peak: $S_{\text{peak}} = 120 \times 0.40 = 48\text{ kVA}$.
- Account for EV and Photovoltaic Penetration: Add dedicated continuous charging allowances (typically 7.2 kW per Level-2 EVSE) adjusted for coincident charging windows.
- Select Standard Nameplate Rating: Choose the nearest standardised kVA rating that provides a 15% to 25% reserve capacity margin for load growth, selecting a 75 kVA or 100 kVA unit rather than operating at nominal limit.
Detailed worked sizing examples, load curves, and loss evaluations can be cross-referenced in our residential transformer sizing and costing guide.
Technical Specifications and Grid Compliance Standards
Utility transformers must comply with international performance standards, including IEC 60076, IEEE C57.12.00, and regional efficiency frameworks such as the European Ecodesign Directive (EN 50588-1) or US DOE 10 CFR Part 431.
Dielectric withstand capability is defined by the Basic Impulse Insulation Level (BIL), which specifies the transformer winding's ability to resist lightning impulses and transient switching surges. For example, on a 15 kV distribution class system, the primary windings require a minimum BIL rating of 95 kV (or 110 kV in severe lightning zones), whereas the secondary winding operates with a 30 kV BIL withstand. Winding configurations are wound from high-conductivity electrolytic copper or electrical-grade aluminium, insulated with thermally upgraded Kraft paper (Class 105 or Class 120 systems).
Core and winding losses represent a significant ongoing operating cost for grid operators. No-load losses ($P_0$) occur continuously in the core due to hysteresis and eddy currents, while load losses ($P_k$) vary with the square of the load current ($I^2R$). Modern high-efficiency specifications demand optimized impedance voltage (typically 2.5% to 5.75% for distribution units) to balance low voltage drop under load against limited short-circuit fault levels ($I_{sc} = I_{rated} / \%Z$).
Insulating liquids also require careful engineering. While conventional inhibited mineral oil per IEC 60296 is standard, urban utilities increasingly specify less-flammable natural or synthetic ester fluids (fire point $> 300^\circ\text{C}$, IEC 62770 / ASTM D6871), eliminating fire barriers near civilian dwellings.
Installation, Protection, and Siting for Electrical Transformer Residential Units
Siting and protecting an electrical transformer residential asset demands strict adherence to physical clearances, short-circuit interruption guidelines, and low-impedance earthing systems.
Ground-mounted installations must be positioned safely away from building structures, window openings, and combustible walls per NFPA 70 (NEC Article 450) and local utility rules. Standard practices require a minimum radial clearance of 1.5 to 3.0 metres from building foundations, doors, and property boundaries to maintain clear access for utility maintenance personnel and fire crews. Mechanical bollards are required wherever pad-mount installations stand exposed to vehicular traffic.
Overcurrent protection within pad-mounted transformers combines series-coordinated devices. Primary protection uses an oil-immersed, field-replaceable bay-o-net expulsion fuse to clear secondary faults and overload conditions, paired in series with an internal, partial-range current-limiting fuse (such as an ELSP fuse). This current-limiting fuse operates safely during catastrophic high-current winding faults, interrupting fault currents up to 50,000 A symmetrical within a half-cycle to prevent tank rupture.
Effective grounding is paramount for personal safety and surge dissipation. The tank, neutral bushing, and lightning arresters must tie into a continuous buried earthing grid—typically consisting of copper-clad steel ground rods driven to achieve a system earthing resistance under 5 ohms. Review our structural installation recommendations in the electrical transformer box engineering guide.
Next steps: specifying and sourcing
Specifying the optimal utility transformer requires compiling complete network data before requesting bids. Ensure your technical inquiry package includes primary and secondary operating voltages, required kVA capacity, frequency (50 Hz or 60 Hz), winding connection vector group, maximum allowable no-load and load losses, ambient temperature extremes, and specific protection requirements such as dead-front loop feed or live-front radial feed. Explore our factory-tested oil-immersed transformers for long-term distribution performance, or contact our engineering department directly via our transformer quotation page to receive comprehensive submittal drawings, type-test certificates, and production schedules tailored to your network standards.
Frequently asked questions
What is the lifespan of a utility transformer?
A utility transformer has an average operational lifespan of 30 to 40 years when operated within standard thermal ratings. Regular oil quality testing, load management, and maintaining moisture levels below 20 ppm in the insulation paper are critical to achieving this service longevity.
How many homes can one utility transformer serve?
One utility transformer typically serves between 4 and 16 single-family homes, depending on climate, house size, and transformer capacity. A standard 50 kVA to 100 kVA pad-mounted or pole-mounted transformer easily supports this cluster by factoring in residential load diversity.
What is the difference between a utility transformer and a household transformer?
A utility transformer is the utility-owned asset stepping medium-voltage grid power down to residential service levels. The term household transformer colloquially refers either to this street-level distribution unit or to small indoor step-down appliances converting 230V to 110V inside the home.
Why do utility transformers hum during operation?
Utility transformers hum due to magnetostriction, an electromagnetic phenomenon where the silicon steel core laminations physically expand and contract twice per AC cycle. This continuous mechanical vibration at 100 Hz or 120 Hz transmits through the tank walls and cooling fins as audible acoustic noise.
What voltage does an electrical transformer residential unit provide?
An electrical transformer residential unit typically outputs single-phase 120/240V split-phase in North America or three-phase 400/230V in Europe, Australia, and Asia. This low utilisation voltage allows standard residential appliances and building distribution panels to operate safely.
How far must a residential utility transformer sit from a house?
A residential utility transformer must typically maintain a minimum clearance of 1.5 to 3.0 metres (5 to 10 feet) from building walls, doors, and windows. Exact spacing depends on local utility rules, wall fire ratings, and whether the unit contains mineral oil or ester fluid.
