Transformer Specification: Complete Engineering Sizing Guide

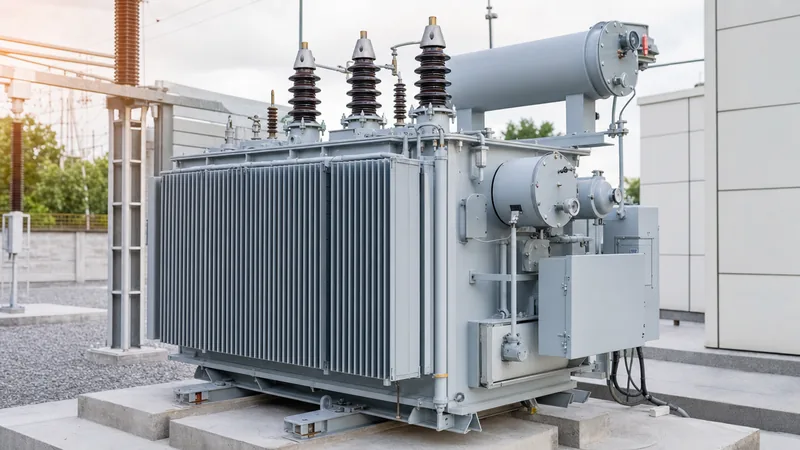

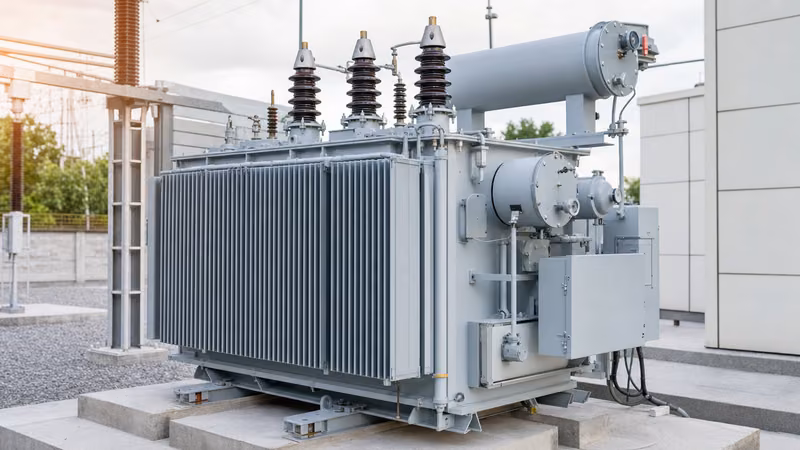

Quick answer: A complete transformer specification defines the mechanical, thermal, dielectric, and electrical parameters required to manufacture a transformer that meets system load, fault level, and environmental constraints. It establishes core ratings—including rated power (kVA/MVA), primary/secondary voltages, frequency, short-circuit impedance, insulation levels, vector group, and sound limits—in compliance with international standards such as IEC 60076 or IEEE C57.12.00.

Drafting an unambiguous transformer specification is essential for industrial plant designers, EPC contractors, and network operators. An omission or imprecise tolerance in the RFQ (request for quotation) can lead to mismatched impedance during parallel operation, excessive inrush currents, inadequate cooling under harmonic loading, or structural failure under short-circuit conditions. Comparing baseline values against standard transformer sizes allows design engineers to balance performance requirements against manufacturing lead times and lifecycle capital costs.

Core Electrical Parameters in a Transformer Specification

The core electrical parameters in a transformer specification establish continuous operating capacity, voltage ratio, and service frequency. System designers must clearly state whether nominal power ratings apply to continuous maximum rating (CMR) or multi-stage ratings governed by auxiliary cooling equipment. Ratings must reflect site-specific ambient conditions, as IEC 60076-1 clause 5.1 assumes an ambient air temperature not exceeding 40°C peak and a yearly average not exceeding 20°C; elevations exceeding 1,000 metres above sea level require dielectric clearance and thermal derating adjustments.

When compiling transformer specs, define the following fundamental ratings:

• Rated Power: Stated in kVA or MVA across cooling stages (for instance, 15/20 MVA for ONAN/ONAF ratings).
• Rated Voltages and Tappings: Nominal primary and secondary line-to-line voltages (e.g., 33 kV to 0.415 kV). Specify whether off-circuit tap changers (OCTC) or on-load tap changers (OLTC) are required, including the tapping range (such as ±2 × 2.5% or ±8 × 1.25%).
• Rated Frequency: Explicitly specify 50 Hz or 60 Hz, as core flux density calculations and magnetising losses depend heavily on system frequency.
• Number of Phases: Three-phase or single-phase units with internal phase connections.
• Basic Insulation Level (BIL): Peak lightning impulse withstand voltage (kV peak) and power frequency withstand voltage (kV RMS) per IEC 60076-3 Table 2.

Defining Impedance and Short-Circuit Performance

Short-circuit impedance dictates both downstream fault levels and steady-state voltage regulation across fluctuating loads. In any technical specification of transformer design, the short-circuit impedance percentage (%Z) represents the voltage drop across the transformer at rated full-load current, expressed as a percentage of rated primary voltage. Specifying too low a %Z increases symmetrical fault current, forcing downstream switchgear into higher interrupting ratings; specifying too high a %Z creates severe secondary voltage drop under inductive motor starting.

To evaluate prospective fault currents, apply the standard symmetrical three-phase short-circuit equation:

I_sc = I_rated / (%Z / 100)

For example, consider an 11 kV to 433 V, 2,000 kVA distribution unit specified with a %Z of 6.0%. The secondary full-load rated current is calculated as:

I_rated = 2,000 kVA / (√3 × 0.433 kV) = 2,666.7 A

The symmetrical fault current on the secondary busbars becomes:

I_sc = 2,666.7 A / (6.0 / 100) = 44,445 A (44.45 kA)

If the specifying engineer fails to set a strict impedance tolerance (IEC allows ±10% tolerance for two-winding transformers with %Z ≥ 10%, and ±15% when %Z < 10%), the resulting busbar fault level can easily exceed the withstand ratings of connected switchgear. Designers must integrate these boundaries during system studies to coordinate network protection relays accurately.

Cooling Classes, Temperature Rise, and Insulation Systems

Transformer cooling classes define the internal fluid circulation and external heat-dissipation mechanisms used to remove winding core losses. Under IEC 60076-2, cooling designations use four-letter codes: the internal cooling medium (e.g., O for mineral oil, K for less-flammable synthetic or natural ester, A for dry air), internal circulation mode (N for natural, F for forced, D for directed), external cooling medium (A for air, W for water), and external mechanism (N for natural, F for forced). A conventional substation unit is often specified as ONAN/ONAF, while dry-type indoor units follow AN or AF designations.

Thermal endurance and equipment life expectancy depend strictly on respecting winding temperature transformer limits. For standard mineral oil-immersed units with thermal Class A insulation (105°C limit), standard maximum allowable temperature rises per IEC 60076-2 Table 1 are:

• Top-oil temperature rise: 60 K (with conservator) or 55 K (without conservator).
• Average winding temperature rise (by resistance measurement): 65 K.
• Winding hot-spot temperature rise: 78 K.

For dry-type transformers built to IEC 60076-11, insulation classes span Class F (155°C limit, 100 K rise) and Class H (180°C limit, 125 K rise). When feeding non-linear loads with prominent harmonic spectrums (such as variable speed drives or UPS systems), the transformer specification must state the harmonic distortion or require an appropriate K-factor (e.g., K-4, K-13, or K-20 per IEEE C57.110) to prevent core saturation and localized winding overheating.

Vector Groups, Winding Configurations, and Tap Changers

Specifying the correct vector group determines the winding interconnection and angular phase displacement between high-voltage and low-voltage systems. The most common commercial and industrial distribution configuration is Dyn11, which indicates a delta-connected HV winding, star-connected LV winding with a neutral brought out, and a 30-degree lead phase displacement. Dyn11 traps third harmonics within the primary delta loop while providing a stable four-wire neutral on the secondary for phase-to-neutral loads.

When parallel operation is planned, transformers must share identical vector groups, identical phase displacement, and closely matched impedance to avoid circular currents that overheat windings even at zero load. When integrating secondary distribution networks or loop topologies, designers often weigh radial vs looped supply architectures, as explored in our guide on radial feed vs loop feed transformers.

Voltage regulation under varying system load profiles requires explicit tapping guidelines. Engineers should specify whether off-circuit tap switches (de-energised operation only) or on-load tap changers are needed, as detailed in our load tap changer engineering guide. For grid-tied transmission or critical manufacturing substations, automated OLTC mechanisms with AVR (automatic voltage regulation) relays are essential to counteract upstream utility voltage sags.

Technical Specification of Transformer: RFQ Data Schedule

A structured technical data sheet ensures manufacturers quote against identical criteria without unstated assumptions. Using a standardised schedule eliminates ambiguity regarding terminal configurations, loss evaluations, and environmental boundaries. The following table provides an engineering checklist for inclusion in tender documentation:

Incorporating loss capitalisation formulas (A and B factors) into your tender document forces suppliers to optimize silicon steel grades (such as laser-treated high-permeability grain-oriented CRGO) and conductor cross-sections, lowering total cost of ownership over a 30-year operational life.

Factory Acceptance Testing and Compliance Standards

Verifying performance against your transformer specification requires a comprehensive inspection and testing plan (ITP) enforced at the manufacturer's testing facility. Testing protocols are divided into routine, type, and special tests per IEC 60076-1 clause 3.11. Routine tests must be performed on every unit manufactured, while type and special tests are typically demonstrated on one unit per design family or proven via type-test certificates from an accredited laboratory.

1. Winding Resistance Measurement: Performed on all phases and tap positions to verify conductor continuity, balance, and calculate reference I²R losses.
2. Voltage Ratio and Vector Group Verification: Confirms correct turn ratios across all tap positions and validates phase angular displacement.
3. Measurement of Short-Circuit Impedance and Load Loss: Conducted at rated frequency with low-voltage sinusoidal current to prove compliance with specified impedance limits and loss guarantees.
4. Measurement of No-Load Loss and Excitation Current: Validates core construction, laminations, and core steel quality under 100% and 110% rated voltage.
5. Dielectric Routine Tests: Encompasses applied separate-source AC withstand tests and short-duration induced AC overvoltage tests (DVDF) to stress inter-turn and inter-winding insulation.
6. Insulation Resistance and Dissipation Factor: Core-to-frame, winding-to-winding, and winding-to-ground measurements using megohmmeters and tan-delta bridges to verify dryness and insulation integrity.

Special tests—such as temperature rise runs, lightning impulse tests, sound level surveys, and short-circuit withstand dynamic tests—should be specified during procurement. A full breakdown of these verification steps is available in our technical guide on power transformer testing.

Next steps: specifying and sourcing

When preparing to issue an RFQ, provide a complete data schedule that includes your single-line diagram, nominal operating voltages, fault level constraints, ambient site limits, and loss capitalisation figures. Sourcing equipment directly from an experienced engineering facility ensures custom designs align strictly with IEC, IEEE, or national regulatory standards. Explore our engineered ranges of power transformers, oil-immersed distribution transformers, and high-efficiency dry-type transformers built for industrial and utility installations. Submit your completed design schedule through our transformer quotation page or speak with our application engineers via the technical contact page to finalise your specification requirements.
