How to Determine kVA: Electrical Formulas & Sizing

Quick answer: To determine kVA in a single-phase system, multiply line voltage by current (amperes) and divide by 1,000. For a three-phase system, multiply line-to-line voltage by current, multiply by 1.732 (the square root of 3), and divide by 1,000. Converting real power (kW) to kVA requires dividing the active power by the electrical system power factor.

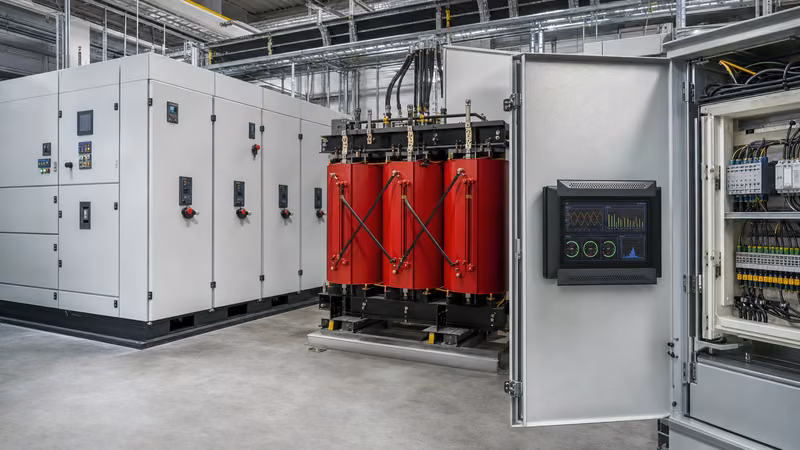

Apparent power, expressed in kilovolt-amperes (kVA), represents the total electrical load imposed on distribution equipment, including transformers, cables, switchgear, and protective devices. Calculating the exact kVA profile of an electrical network prevents equipment oversizing, capital expenditure waste, excessive thermal degradation, and nuisance breaker tripping. Whether you are engineering a distribution feed or evaluating switchgear busbars, precision in apparent power calculations is the baseline for all subsequent electrical infrastructure decisions.

The Core kVA Formula and Equation Explained

A kva formula calculates apparent power (S), which represents the vector sum of real power (P, measured in kilowatts) and reactive power (Q, measured in reactive kilovolt-amperes). In alternating current (AC) power systems, inductive loads such as induction motors, solenoid valves, and dry-type transformer cores create a phase displacement between the voltage waveform and current waveform. Because distribution equipment conductors and windings carry the total root-mean-square (RMS) current resulting from both vectors, assets must be sized using apparent power rather than real power alone.

The fundamental kva equation links active power and displacement power factor:

kVA = kW / Power Factor

Where power factor (PF) equals the cosine of the phase angle (cos φ) between system voltage and current. A purely resistive heating element operates with a unity power factor of 1.0, meaning active power in kW matches apparent power in kVA exactly. Conversely, standard industrial facilities running heavily loaded induction machinery often exhibit an uncompensated power factor between 0.80 and 0.85 lagging. Sizing your electrical infrastructure based purely on mechanical shaft output or kW ratings will leave switchgear assemblies and supply transformers undersized by 15% to 25%, producing excessive copper losses (I²R) and premature thermal breakdown of insulation systems per IEC 60076-2 thermal rise criteria.

How to Figure kVA for Single-Phase and Three-Phase Systems

Understanding how to figure kva depends strictly on whether the load connection is single-phase or three-phase. In single-phase circuits, calculating apparent power involves direct scalar multiplication of line-to-neutral (or line-to-line) RMS voltage by line current, scaled down by a factor of one thousand.

The mathematical representation for single-phase circuits is:

kVA (1Φ) = (V × I) / 1,000

For balanced three-phase systems, line-to-line potential is 120 electrical degrees out of phase across all three phase conductors. Determining apparent power requires the square root of three (√3 ≈ 1.73205) to reconcile line current and line-to-line voltage into total volumetric power throughput.

The three-phase mathematical relationship is expressed as:

kVA (3Φ) = (√3 × V_L-L × I_L) / 1,000

For detailed procedures on extracting phase currents directly from rated transformer nameplates, consult our guide on kVA to amperes current calculations. When calculating non-linear loads with high total harmonic distortion (THD), engineers must apply de-rating factors or use true RMS sensing instrumentation to capture harmonic heating components that basic sinusoidal formulas overlook.

Step-by-Step Guide: How to Compute kVA from Field Measurements

To establish how to compute kva accurately on active distribution boards or prospective installation drawings, follow this structured procedural sequence:

1. Determine the circuit configuration: Identify whether the electrical distribution infrastructure operates as single-phase two-wire, single-phase three-wire, three-phase three-wire delta, or three-phase four-wire wye.
2. Measure line voltage (V): Using a calibrated, true-RMS digital multimeter or power quality analyser, measure the line-to-line voltage across phase terminals (e.g., between each phase pair). Ensure the system is operating within statutory supply limits (such as ±5% per ANSI C84.1 or ±10% per IEC 60038).
3. Measure operating line current (I): Use a calibrated clamp meter to measure the line current in amperes across each individual phase conductor under peak operational duty. If phase currents are unbalanced, calculate the arithmetic mean of all three phases.
4. Execute the mathematical computation: Apply the three-phase formula: multiply line-to-line voltage by line current, multiply the product by 1.732, and divide by 1,000.
5. Apply duty cycle and continuous load multipliers: Under National Electrical Code (NEC) Article 215.2(A)(1) and IEC 61439-1 recommendations, continuous loads (those operating continuously for three hours or more) must incorporate a 125% factor to protect primary switchgear and thermal protection elements from continuous heating.

For additional details regarding equipment ratings and upstream capacity margins, review our comprehensive analysis of standard transformer sizes and kVA ratings.

Worked Engineering Example: Sizing a Factory Feeder Substation

A practical engineering calculation demonstrates how active power, inductive load characteristics, and future expansion requirements translate into a baseline equipment kVA rating. Consider an industrial manufacturing bay with the following design parameters:

• Total connected mechanical motor load: 450 kW
• Average operating motor displacement power factor: 0.82 lagging
• Auxiliary resistive lighting and controls: 40 kW (operating at 1.0 PF)
• Distribution voltage: 400 V three-phase, 50 Hz (line-to-line)
• Continuous operation profile: Yes (≥ 3 hours)
• Future expansion allowance: 20% spare capacity

First, calculate the individual apparent power for each load profile:

kVA (Inductive) = 450 kW / 0.82 = 548.78 kVA

kVA (Resistive) = 40 kW / 1.0 = 40.00 kVA

Using the vector breakdown: Active Power (P_total) = 450 kW + 40 kW = 490 kW. Reactive Power (Q_inductive) = √(548.78² - 450²) = 314.15 kVAR. Total Apparent Power = √(490² + 314.15²) = 582.02 kVA.

Applying the standard 125% continuous operation multiplier per electrical codes:

kVA (Design) = 582.02 kVA × 1.25 = 727.53 kVA

Incorporating the required 20% spare capacity for future expansion:

kVA (Required) = 727.53 kVA × 1.20 = 873.04 kVA

Because distribution transformers are manufactured in standardized capacity increments, the engineering team selects the next standard commercial size: a 1,000 kVA unit substation. You can explore complete plant infrastructure topologies in our guide to unit substation engineering and design.

Converting kVA to Power, Current, and System Voltages

Converting kva to power requires multiplying the apparent power by the system power factor (kW = kVA × PF). A common point of confusion for commissioning technicians and junior plant engineers is the physical relationship between kva voltage and current, particularly queries regarding converting 1000 kva to volts or general kva to volts calculations.

A kilovolt-ampere rating does not represent an isolated potential; it represents total throughput capacity. Voltage is determined by the electrical grid parameters and secondary winding turn ratios, not calculated in isolation from kVA. Instead, knowing the system voltage allows you to calculate full-load current (FLA) directly from apparent power using the transposed equation:

Line Current (I) = (kVA × 1,000) / (√3 × V_L-L)

For instance, an engineer evaluating a 1,000 kVA transformer operating across different international standard three-phase industrial distribution voltages will encounter radically different current magnitudes, directly impacting switchgear busbar dimensions, copper cross-sections, and circuit breaker interrupting capacities.

To verify that upstream protections and switchboard busbars remain safely within acceptable short-circuit limits during a thermal event, refer to our technical benchmark on transformer sizing calculator principles.

Factory Specification Checklist: kVA Selection Pitfalls

A frequent error during project procurement is sizing electrical equipment solely on initial full-load ampere calculations without factoring in field operational stressors. When finalizing the required kVA rating for commercial proposals, switchgear fabrication, or transformer purchase orders, engineers must evaluate these operational factors:

• Ambient Temperature De-rating: Standard distribution transformers conform to IEC 60076-2 or IEEE C57.12.00 temperature ceilings (typically 40°C ambient maximum, 30°C daily average). If ambient conditions exceed 40°C in desert or enclosed industrial locations, the effective kVA rating must be de-rated by approximately 1% for every 1°C above standard design thresholds.
• Altitude Constraints: Above 1,000 metres (3,300 feet), reduced air density degrades both dielectric insulation strength and natural convective cooling. Transformers and switchgear operating at higher elevations demand custom cooling designs or reduced kVA ratings.
• Motor Inrush Current (Locked Rotor Amperes): Large direct-on-line (DOL) squirrel-cage motors draw 6 to 8 times their full-load current during starting. If motor starting demand constitutes over 30% of transformer capacity, the transformer kVA must be expanded to prevent terminal voltage sag exceeding 10% to 15%, which causes motor contactor chatter and variable frequency drive (VFD) undervoltage trips.
• Harmonic De-rating (K-Factor): Non-linear loads—including rectifiers, uninterruptible power supplies (UPS), and variable speed drives—generate high-frequency eddy-current winding losses. These duty cycles require K-factor rated units (such as K-4, K-13, or K-20) or a standard unit oversized by 20% to 30%.

Next steps: specifying and sourcing

Accurately determining kVA is the critical initial stage in engineering robust industrial power infrastructure. Once your design team establishes peak apparent power, continuous duty margins, and harmonic de-rating factors, compile your detailed single-line diagrams (SLD) and technical tender specifications. High-efficiency primary equipment—such as an integrated prefabricated transformer substation, high-reliability oil-immersed distribution transformers, or low-maintenance cast resin dry-type transformers—should always be matched with certified medium and low voltage switchgear assemblies. For complete equipment sizing validation, tailored CAD drawing submittals, or factory-direct budgetary proposals, submit your requirements via our transformer quotation portal or connect with our application engineers on the engineering contact page.
