1kW Solar Power System: Sizing, Battery & Output Guide

Quick answer: A 1kw solar power system produces between 3.0 and 4.8 kilowatt-hours (kWh) of direct electrical energy per day under standard operating conditions. Comprising three to four modern photovoltaic modules, an MPPT charge controller, an inverter, and optional battery storage, it provides self-sufficient power for remote telecommunications, cabins, backup circuits, and light commercial loads.

Micro-generation arrays occupying less than six square metres of surface area serve as foundational power infrastructure across off-grid sites, industrial telemetry installations, and small domestic properties. Evaluating the technical feasibility of a 1kw solar power system requires understanding the relationship between solar irradiance, system efficiency coefficients, electrical balance-of-system (BOS) components, and storage integration. Engineers and project planners must design these systems with strict adherence to electrical protection standards, wire ampacity calculations, and duty cycles to prevent thermal degradation and premature component failure. For comprehensive system architecture comparisons across wider capacity classes, consult our Battery Storage Engineering Guide: Solar BESS Specs & Sizing.

Daily Yield and Power Output of a 1 kW Solar System

A 1 kw solar system yields an average of 3.2 kWh to 4.5 kWh of AC energy per day across moderate-to-high solar resource zones. Calculating realistic yields requires adjusting the rated peak DC output against environmental and electrical losses defined under IEC 61724-1 Class B monitoring protocols.

The standard nominal rating of photovoltaic modules is measured under Standard Test Conditions (STC): 1,000 W/m² irradiance, a cell temperature of 25°C, and an air mass spectral distribution of AM 1.5. In real-world deployments, elevated ambient temperatures trigger the module temperature coefficient of maximum power ($P_{max}$), typically reducing generation by 0.30% to 0.38% per degree Celsius above 25°C. Additional system losses include cable voltage drops (mandated below 3% by BS 7671 and NEC 210.19), dirt accumulation (soiling losses between 2% and 5%), inverter conversion dissipation (3% to 6%), and maximum power point tracking (MPPT) inefficiencies (1% to 2%).

To calculate practical daily production, apply the formula:

$$\text{Daily AC Energy (kWh)} = P_{DC} \times PSH \times PR$$

Where $P_{DC}$ is the nominal array power (1.0 kW), $PSH$ represents Peak Sun Hours (equivalent hours per day at 1,000 W/m²), and $PR$ is the Performance Ratio (system derate factor, conventionally 0.75 to 0.82). For an installation location receiving 4.5 PSH with a standard derate factor of 0.78:

$$1.0\text{ kW} \times 4.5\text{ h} \times 0.78 = 3.51\text{ kWh/day}$$

In high-irradiance desert environments with 6.0 PSH, yield reaches 4.68 kWh per day, whereas higher-latitude regions averaging 2.5 PSH in winter will see yields contract to approximately 1.95 kWh per day. For site calculations evaluating property-scale loads against seasonal irradiation swings, refer to our guide on what size solar system do I need.

System Architecture and Component Selection

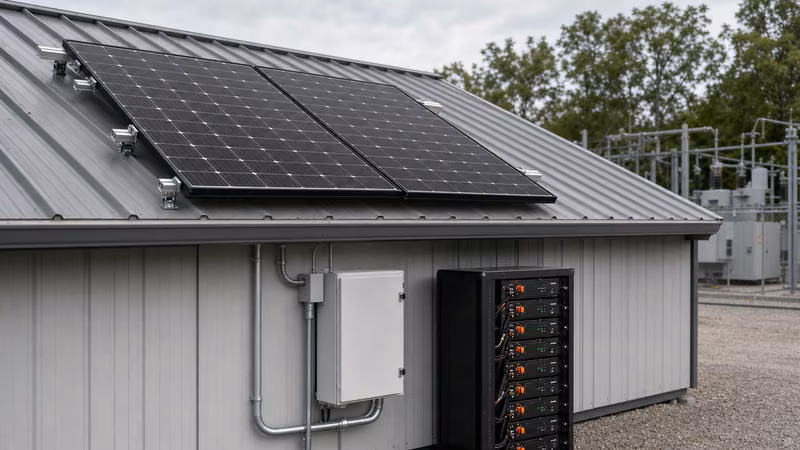

Component selection for a 1kw solar power system centres on three interconnected stages: the photovoltaic array, the conversion/regulation interface, and the storage or distribution busbar. The photovoltaic array generally comprises two 500W bifacial monocrystalline modules or three 340W–360W standard half-cut cell panels, requiring approximately 5.0 to 5.8 m² of roof or ground footprint.

The choice of DC busbar voltage dictates cable cross-sections, thermal stresses, and charge controller ratings. Deploying a 12V DC system architecture with a 1,000W PV array is an engineering anti-pattern: transferring 1,000W across a 12V nominal circuit results in currents exceeding 80A ($I = P/V$). High currents necessitate thick copper conductors (35 mm² to 50 mm²) to limit voltage drops and avoid substantial Joule heating losses ($P_{loss} = I^2R$). Modern best practice dictates stepping up to a 24V or 48V architecture.

As demonstrated in the comparison table, adopting a 48V busbar reduces current by 75% compared to a 12V architecture, significantly dropping component costs for switchgear, fusing, and cabling while boosting round-trip efficiency. If integrating the system alongside scalable low-voltage lithium infrastructure, see our technical specifications in the 48V solar battery engineering guide.

Battery Storage Sizing for a 1kw Solar Power System

Battery storage for a 1kw solar power system must be sized between 2.4 kWh and 5.12 kWh to store daytime surplus generation effectively without subjecting the battery chemistry to destructive cyclic overcharging or extreme depth of discharge (DoD). Stationary energy storage installations predominantly utilise lithium iron phosphate (LiFePO4) chemistry due to its thermal stability and high cycle life under standard IEC 62619 protocols.

To calculate storage capacity for an off-grid scenario, an engineer must establish daily consumption, target autonomy days ($N_{autonomy}$), maximum allowable DoD, and inverter/conversion efficiency ($\eta_{inv}$):

$$\text{Battery Capacity (kWh)} = \frac{\text{Daily Consumption (kWh)} \times N_{autonomy}}{\text{DoD} \times \eta_{inv}}$$

Assuming a critical baseline load consumption of 2.2 kWh/day, 1.5 days of autonomy, an 80% maximum DoD (0.80), and an inverter efficiency of 92% (0.92):

$$\text{Battery Capacity} = \frac{2.2 \times 1.5}{0.80 \times 0.92} = \frac{3.3}{0.736} = 4.48\text{ kWh}$$

A nominal 48V, 100Ah LiFePO4 rack provides a raw capacity of 5.12 kWh (48V × 100Ah = 4,800Wh to 5,120Wh depending on exact 51.2V nominal ratings). At 80% usable capacity, this battery provides 4.09 kWh of net usable energy, seamlessly buffering the 3.5 kWh average daily production of the array. Integrating an advanced industrial energy storage system or containerised auxiliary storage ensures integrated battery management system (BMS) telemetry, cell balancing, and over-current protection per UL 1973 standards.

What Electrical Loads Can a 1 kW Solar System Support?

A 1 kw solar system can support continuous low-to-medium power appliances, instrumentation, refrigeration, and communications equipment, provided the aggregate daily draw remains within the 3.0 to 4.5 kWh daily generation threshold. It cannot support continuous thermal loads such as central electric heating, whole-home ducted air conditioning, or on-demand electric water heaters.

When assessing load compatibility, designers must distinguish between continuous operating power (watts) and initial inductive inrush power (surge watts). Single-phase motor loads, such as hermetic refrigeration compressors or submersible water pumps, demand five to seven times their nominal rated current during locked-rotor startup per NEMA MG 1 guidelines. The system inverter must possess adequate surge capacity (typically rated for 5 to 10 seconds) to prevent DC bus undervoltage trips.

• Telecommunications & Remote Stations: SCADA remotes, CCTV cameras, cellular repeaters, and satellite modems running 24/7 (continuous 60W to 120W draw; ~1.5 kWh to 2.8 kWh/day).
• Off-Grid Living & Small Cabins: Energy-efficient 12V/24V DC or inverter-driven compressor refrigerator (400W–800Wh/day), LED illumination (50W total for 5 hours; 250Wh/day), laptop charging and consumer electronics (150Wh to 300Wh/day). See our operational layout for residential outbuildings in solar power for small house setups.
• Agricultural Infrastructure: Electric fencing energisers, intermittent automated livestock watering valves, and barn ventilation fans operating during daylight hours.

Engineering Checklist and Balance of System (BOS) Sizing

A durable 1kw solar power system requires correctly calculated balance-of-system switchgear, wire gauges, and overcurrent protective devices (OCPD) selected according to peak current and open-circuit voltage parameters. Neglecting balance-of-system margins introduces fire hazards and violates international safety norms such as IEC 62548.

1. Array Voltage Configuration: Determine whether panels are connected in series or parallel. For a 150V MPPT controller, stringing two 500W modules in series (each having an Open Circuit Voltage $V_{oc}$ of ~49.5V) yields an array $V_{oc}$ of 99V at STC. Adjusting for lowest design ambient temperature (-10°C) elevates $V_{oc}$ to approximately 112V, staying safely below the controller's 150V breakdown rating.
2. DC Isolator and Circuit Breaker Selection: The DC disconnecting switch positioned between the PV array and MPPT must be rated for DC operation (utilising arc chutes or magnetic blowouts) at 1.25 times the array short-circuit current ($I_{sc}$) and 1.2 times $V_{oc}$ per IEC 60947-3.
3. Surge Protection Devices (SPD): Install a Type II DC Surge Protective Device across the positive, negative, and earth terminals at the combiner enclosure to protect power electronics from induced lightning overvoltages according to EN 50539-11.
4. Battery Overcurrent Protection: Position an industrial-grade Class T or NH00 DC fuse immediately at the battery terminal. Standard AC breakers are unacceptable; high fault currents from low-internal-resistance lithium batteries can weld AC breaker contacts together.
5. Inverter Continuous Rating: Pair the array with an inverter rated between 1,000W and 1,500W continuous output. Oversizing the inverter excessively (e.g., placing a 5,000W inverter on a 1 kW array) leads to poor conversion efficiency during low-load periods, as internal inverter tare losses (standby consumption) can consume 25W to 50W continuously (600Wh to 1,200Wh/day).

Step-by-Step Installation, Grounding, and Commissioning

Commissioning a 1kw solar power system demands a rigorous sequential procedure to avoid arching, controller damage, or personal injury during startup. Follow these technical commissioning stages:

1. Mounting and Structural Verification: Secure the mounting rail system to the substrate using corrosion-resistant 304 or 316 stainless steel fasteners. Confirm that tilt angle and azimuth align with regional solar optimisation requirements, ensuring the framework is engineered for local wind-load classifications per AS/NZS 1170.2 or Eurocode 1.
2. Earthing and Bonding: Electrically bond all metal module frames, mounting racking, and inverter enclosures to a continuous copper equipment grounding conductor (PE). Route this conductor to the central earthing bar, confirming earth resistance is below 10 ohms per IEEE 142 standards.
3. Battery-to-Inverter Connection (First Power-Up): Connect the battery bank to the hybrid inverter/charge controller *before* connecting the solar PV strings. This sequence energises the internal logic board and allows the MPPT charge controller to identify the nominal DC bus voltage (24V or 48V) and establish BMS communications.
4. Polarity and Open-Circuit Verification: Measure the open-circuit voltage ($V_{oc}$) and short-circuit current ($I_{sc}$) of the isolated PV string using a calibrated digital multimeter and clamp meter. Verify that measured polarity precisely matches terminal markings before inserting fuses.
5. PV Array Energisation: Close the DC isolators connecting the solar array to the MPPT input. Monitor charge controller telemetry to verify the algorithm transitions from "Bulk" to "Absorption" charging mode without fault codes.
6. AC Load Circuit Verification: Inspect output voltage (230V single-phase ±2% or 120V ±2%) and frequency (50Hz/60Hz ±0.1Hz). Test residual current devices (RCDs) using an integrated test instrument to confirm disconnection times remain within 300 milliseconds under 30mA residual fault conditions.

Next steps: specifying and sourcing

When specifying a small commercial or micro-industrial solar power system, technical accuracy in your Request for Quotation (RFQ) prevents costly operational failures. Forward your peak sun hour data, target autonomy days, continuous load schedules, and environment classifications to our application engineers. For applications requiring industrial auxiliary power or larger modular microgrid capacity, explore our factory-integrated energy storage system platforms and utility-grade liquid-cooled ESS containers. Submit your single-line diagrams (SLD) and load requirements directly through our quote request page or contact our technical team via our engineering contact page for system validation.
