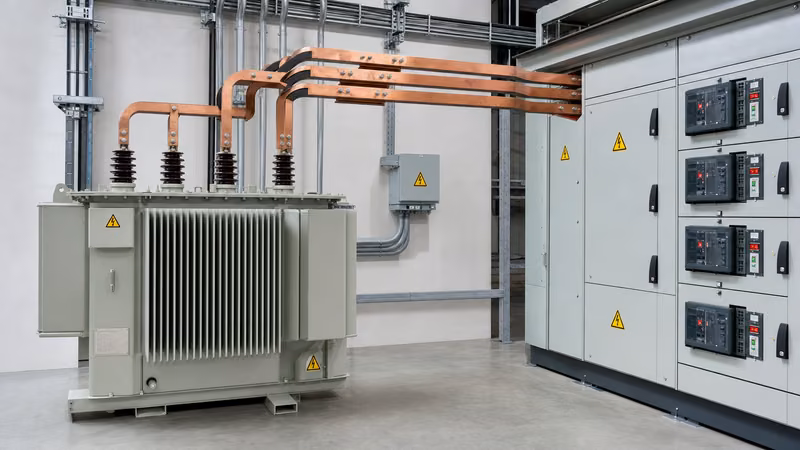

208V 3 Phase Power: Voltage, Wiring & Transformer Guide

Quick answer: A 208V 3 phase system is a four-wire wye (star) electrical distribution network that provides 208 volts line-to-line between any two phase conductors and 120 volts line-to-neutral for standard plug loads. It is widely used in commercial buildings, data centres, and light industrial facilities across North America to run heavy mechanical equipment alongside standard office branch circuits from a single transformer.

Understanding 208 volt 3 phase networks is essential for electrical consultants, plant engineers, and installation contractors. This configuration eliminates the need for separate single-phase lighting transformers while delivering balanced, continuous power to three-phase motors, pumps, and variable frequency drives (VFDs). In this technical engineering guide, we examine the vector geometry of three phase voltage, compare 208V wye against 240V delta networks, evaluate conductor sizing with the 3 phase power formula, and explain how to correctly step down voltages within distribution switchboards.

What Is a 3 Phase Power Supply and How Does 3 Phase Power Work?

A 3 phase power supply is an alternating current (AC) electrical generation and distribution method that transmits power using three separate sinusoidal voltages of equal magnitude, each displaced in time by one-third of an electrical cycle (120 electrical degrees or 2π/3 radians). Understanding how does 3 phase power work comes down to this geometric displacement: while single-phase AC drops to zero voltage twice every cycle, the instantaneous sum of voltages and power in a balanced three-phase system remains constant at every moment.

This continuous energy transfer explains how three phase electricity works so efficiently in mechanical and industrial environments. Because the instantaneous power never falls to zero, three phase voltage creates a naturally rotating magnetic field inside the stator windings of AC induction motors without requiring capacitors, centrifugal switches, or auxiliary starter windings. Furthermore, balanced three-phase systems require significantly less conductor material than single-phase circuits to transmit the identical electrical load over a given distance. For large facilities receiving medium-voltage power, downstream equipment such as unit substations steps utility voltages down to usable utilisation levels like 208Y/120V or 480Y/277V to serve both motor and plug demands simultaneously.

How Many Volts Is 3 Phase? Phase-to-Phase vs Phase-to-Neutral

The question of how many volts is 3 phase depends strictly on whether the measurement is taken between two hot phase conductors or between one hot conductor and the neutral point. In a balanced wye network, the 3 phase phase to phase voltage (line-to-line, or V_LL) is equal to the line-to-neutral voltage (V_LN) multiplied by the square root of three (√3 ≈ 1.73205).

When a transformer secondary delivers 120V from each phase coil to the grounded neutral terminal, the resultant 3 phase to phase voltage across any two phase conductors is:

V_LL = V_LN × √3 = 120 V × 1.73205 = 207.85 V ≈ 208 V

Under ANSI C84.1 Table 1 (Electric Power Systems and Equipment—Voltage Ratings), standard Service Voltage Range A permits a nominal tolerance of ±5% at the point of delivery, meaning a functional 208 three phase network normally operates reliably between 197V and 218V line-to-line. The table below details nominal line-to-line and line-to-neutral voltage relationships across common low-voltage industrial distribution systems.

208V 3 Phase vs 240 Three Phase Systems: Wye vs Delta

The core distinction between a 208v 3 phase system and a 240 three phase network lies in transformer coil geometry and the resulting neutral reference. A 208V system is universally derived from a wye (Y) secondary winding with a central neutral connection (designated 208Y/120V), whereas 240V three-phase is historically derived from a delta (Δ) secondary connection.

A critical source of field confusion is the 120 240v 3 phase configuration, formally known as a high-leg delta (or wild-leg delta). In a 3 phase 120 240 delta transformer bank, one of the three winding coils is centre-tapped to create a neutral for 120V single-phase loads. While phases A and C measure 120V to neutral, phase B exhibits an elevated potential of:

V_High-Leg = 120 V × √3 = 207.85 V ≈ 208 V to neutral

Per National Electrical Code (NEC / NFPA 70) Article 110.15, this high-leg conductor must be permanently identified with orange marking tape or finish. Accidentally connecting a 120V branch circuit to the 208V high leg instantly destroys connected electronics, office equipment, or lighting ballasts. In contrast, modern commercial facilities prefer standard 208Y/120V wye systems because every single phase provides an identical, safe 120V to neutral, making branch breaker allocation straightforward across IEC 61439 compliant low-voltage assemblies and panelboards.

3 Phase Wiring and Three Phase Connection Diagram Fundamentals

Implementing safe 3 phase wiring requires adhering to rigorous conductor colour coding, correct grounding-electrode bonding, and phase sequencing. A standard three phase wiring diagram for a 208Y/120V system comprises four current-carrying conductors (Phase A, Phase B, Phase C, and Neutral) plus an equipment grounding conductor (EGC).

When reviewing a three phase connection diagram for a 208V wye service panelboard, the neutral point (X0 terminal on the transformer secondary) must be bonded to the grounding electrode system at the first service disconnect per NEC Article 250.24. Standard North American commercial color conventions for 208Y/120V systems are:

• Phase A (L1): Black
• Phase B (L2): Red
• Phase C (L3): Blue
• Neutral (N): White
• Equipment Ground (G): Bare copper or Green with yellow stripe

For facilities operating legacy 240 3 phase wiring, the phase colours are typically Black, Orange (High Leg), and Blue, with White for Neutral. In modern mission-critical facilities, such as those evaluated in our guide to transformers for data centres, balancing load currents across all three phases within ±10% is mandatory. Severe phase unbalance induces excessive zero-sequence return currents through the shared neutral conductor, generating elevated operating temperatures, nuisance ground-fault trips, and increased core losses in upstream magnetic equipment.

The 3 Phase Power Formula: Worked Calculation for 208V Systems

Calculating electrical capacity in a 208V system requires applying the standard 3 phase power formula, which accounts for the simultaneous energy flow across three active phase conductors. Real power (measured in kilowatts, kW) and apparent power (measured in kilovolt-amperes, kVA) are governed by the following equations:

Apparent Power (S): S (kVA) = (V_LL × I × √3) / 1000

Real Power (P): P (kW) = (V_LL × I × √3 × PF) / 1000

Where V_LL is the line-to-line three phase voltage (208 V), I is the line current in amperes, and PF is the load power factor (dimensionless, typically between 0.80 and 0.95 for inductive motor loads).

Worked Engineering Example: Consider an industrial packaging facility specifying a new motor control centre fed by a 208V 3 phase feeder. The total continuous connected mechanical load is 150 A per phase with an operating power factor of 0.85 lagging.

1. Calculate Apparent Power:
   S = (208 V × 150 A × 1.73205) / 1000 = 54.04 kVA
2. Calculate Real Power (Active Work):
   P = 54.04 kVA × 0.85 = 45.93 kW
3. Calculate Continuous Overcurrent Protection:
   Applying NEC Article 215.3, continuous loads (operating 3 hours or more) require overcurrent protection rated at 125% of the continuous current:
   I_Protection = 150 A × 1.25 = 187.5 A
   An engineer selects a standard 200 A three-pole molded case circuit breaker (MCCB).
4. Determine Required Step-Down Transformer Rating:
   To feed this 54.04 kVA continuous load without operating beyond the standard 80% thermal loading limit, refer to our comprehensive transformer sizing calculator guide:
   kVA_Min = 54.04 kVA / 0.80 = 67.55 kVA
   The engineer specifies a standard 75 kVA 480V-Delta to 208Y/120V dry-type distribution transformer.

How Do You Get 3 Phase Power for a Commercial Facility?

Facility owners often ask how do you get 3 phase power or how do i get 3 phase electricity when expanding equipment rosters with 208V or 480V industrial machinery. Sourcing three-phase power involves one of two primary pathways: contracting a new medium-voltage or low-voltage utility service drop, or installing transformation equipment downstream of existing onsite distribution.

1. Utility Service Application: If the local distribution feeder along the roadway supports three-phase lines (identifiable by three crossarm conductors and three surge arresters), apply to the electric utility for a four-wire 208Y/120V or 480Y/277V service connection. The utility determines transformer pad locations and service lateral sizing based on your certified load letter.
2. Step-Down Distribution Transformers: If your commercial facility already receives a standard 480V 3 phase three-wire or four-wire service, obtaining 208V does not require utility intervention. Contractors install a 480V Primary Delta to 208Y/120V Secondary Wye indoor dry-type step-down transformer (built to IEEE C57.12.01 or applicable NEMA standards) adjacent to the main electrical room.
3. Solid-State Variable Frequency Drives (Phase Conversion): For isolated commercial workshops where utility three-phase extensions are cost-prohibitive, rotary phase converters or active digital phase converters can convert single-phase 240V utility inputs into synthesised three-phase outputs. However, electronic converters cannot supply 120V line-to-neutral lighting loads and are restricted strictly to motor circuits.
4. Onsite Generation and BESS Integration: Modern industrial microgrids integrate three-phase inverter-based resources, such as commercial battery energy storage systems, which synthesise a true 208V or 480V three-phase sinusoidal waveform through four-quadrant power conversion systems.

Next steps: specifying and sourcing

When specifying equipment for a 208v 3 phase distribution project, compile detailed parameters before issuing your request for quotation. Define primary and secondary voltages (e.g., 480V Delta to 208Y/120V Wye), kVA capacity, winding material (copper or aluminium), enclosure NEMA or IP protection rating, seismic bracing criteria, and required factory routine test certificates under IEEE C57.12.00 or IEC 60076. Explore our engineered dry-type transformers, integrated transformer substations, and low-voltage HV/LV switchgear configurations built to international standards. For custom design reviews, sizing verifications, or rapid quotations, reach out directly to our engineering specialists at our contact page or submit single-line diagrams via our quotation portal.
