Key takeaways
- In a 3 phase delta connection, line voltage equals phase voltage (V_Line = V_Phase), whereas line current is root-three times the phase winding current (I_Line = √3 × I_Phase).
- Standard industrial delta wiring loops three phase windings end-to-end (U2 to V1, V2 to W1, W2 to U1) to form a closed mesh that naturally traps third-harmonic circulating currents.
- A 4-wire high-leg delta provides 120 V single-phase neutral lighting circuits alongside 240 V three-phase power, exhibiting an orange-identified wild leg at 208 V to neutral per NEC 110.15.
- Unlike a star configuration, an ungrounded three phase delta connection can sustain operation during an accidental single phase-to-ground fault without tripping overcurrent protective devices.
- Correct phase-displacement identification following IEC 60076-1 vector conventions (such as Dyn11 or Dd0) is vital before paralleling delta-connected transformers.
Quick answer: A 3 phase delta wiring diagram illustrates an electrical circuit where three transformer or load phase coils are joined end-to-end in a closed triangular loop without an intrinsic neutral point. Each junction forms a line conductor (L1, L2, L3), resulting in a line voltage equal to the winding phase voltage ($V_L = V_{ph}$), while the line current is $\sqrt{3}$ times the internal coil current ($I_L = 1.732 \times I_{ph}$).
Industrial power distribution relies heavily on delta windings for medium-voltage networks, heavy motor loads, and distribution transformer primaries. By connecting the start of one phase winding to the finish of the adjacent winding, the delta circuit establishes an equilateral vector relationship that naturally suppresses triplen (3rd, 9th, 15th) harmonics within the closed mesh. Whether you are reviewing factory terminal connection plates, interpreting a transformer wiring schematic, or verifying field switchgear cabling, understanding the physical terminal mapping and mathematical characteristics of the delta circuit prevents catastrophic phase-reversal short circuits during installation and commissioning.
Understanding the 3 Phase Delta Connection: Fundamentals and Schematics
A 3 phase delta connection connects the three active phase windings in a continuous closed loop, designated geometrically as the Greek letter $\Delta$. In this configuration, there is no common central junction, meaning an ungrounded delta system carries only three phase conductors without an inherent system neutral.
The fundamental operational rules of a symmetrical three-phase delta system operate under steady-state alternating current conditions as follows:
- Voltage relationship: Because each line conductor connects directly across a single phase winding, line-to-line voltage matches the phase winding voltage ($V_{\text{line}} = V_{\text{phase}}$). For example, on a 480 V delta system, each winding experiences the full 480 V potential difference.
- Current relationship: Line current divides between two adjacent windings at each corner terminal node. According to Kirchhoff's Current Law, with balanced sinusoidal waveforms displaced by 120 electrical degrees, the magnitude of the line current ($I_L$) relates to the internal winding phase current ($I_{ph}$) by the equation: $I_L = \sqrt{3} \times I_{ph} \approx 1.732 \times I_{ph}$. Conversely, the internal winding current is $I_{ph} = I_L / \sqrt{3} = 0.577 \times I_L$.
- Harmonic mitigation: Third-harmonic voltages induced by magnetic core saturation are identical in magnitude and in-phase across all three legs (zero-sequence). In a delta loop, these co-phasal voltages drive a circulating current entirely trapped inside the closed mesh, preventing third-harmonic distortion from propagating downstream into distribution feeders.
These characteristics influence winding copper cross-section sizing during manufacturing. Because phase windings in a delta design carry only 57.7% of the external line current, the copper conductor cross-sectional area inside the coils can be engineered smaller than in an equivalent star winding, though insulation must withstand full line-to-line operational voltage.
3 Phase Delta Wiring Diagram: Terminal Markings and Hookup Schematics
Reading a 3 phase delta wiring diagram requires strict adherence to international terminal nomenclature defined by IEC 60076-1 clause 5.4 or IEEE C57.12.70. On high-voltage (HV) transformer windings, phases are marked U, V, W (IEC) or H1, H2, H3 (IEEE/ANSI). On low-voltage (LV) windings, terminals follow u, v, w or X1, X2, X3.

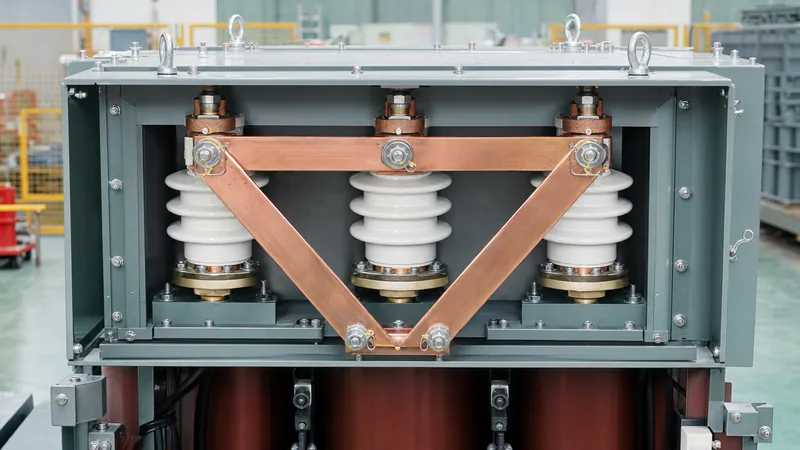

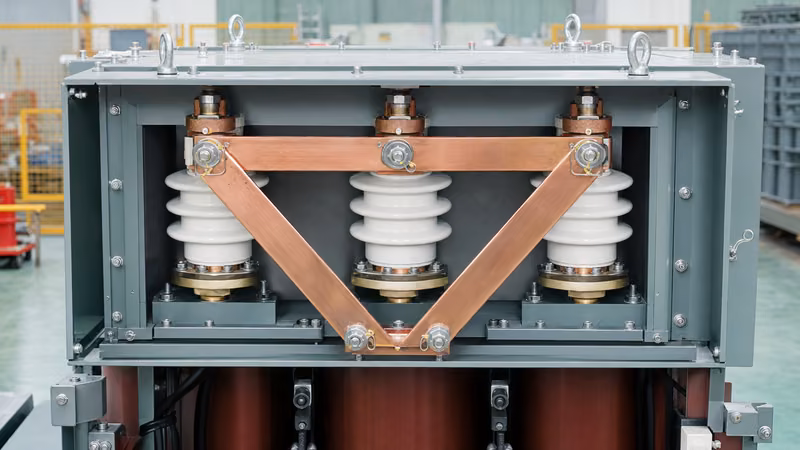

To assemble a standard delta closed loop inside the transformer terminal cabinet or motor connection box, technicians link the winding ends according to the following factory procedure:
- Identify the winding polarity leads: Each independent phase coil possesses two ends: start (U1, V1, W1 or H1, H3, H5) and finish (U2, V2, W2 or H2, H4, H6). Ensure sub-taps or dual-voltage series-parallel links match the target system voltage.
- Bridge finish to start: Connect the finish terminal of Phase 1 to the start terminal of Phase 2 (U2 jumpered to V1).
- Bridge second to third: Connect the finish terminal of Phase 2 to the start terminal of Phase 3 (V2 jumpered to W1).
- Complete the closed mesh: Connect the finish terminal of Phase 3 back to the start terminal of Phase 1 (W2 jumpered to U1).
- Connect external line feeders: Terminate external feeder conductors L1, L2, and L3 directly to the three common junction nodes (Node 1: Phase 1 start to Phase 3 finish; Node 2: Phase 2 start to Phase 1 finish; Node 3: Phase 3 start to Phase 2 finish).
Before torquing busbar joints, testing personnel conduct a winding ratio and polarity verification. If one phase winding is accidentally inverted (connecting start-to-start or finish-to-finish), the resultant vector sum inside the loop will not equal zero volts. Instead, it generates a massive circulating short-circuit voltage equal to $2 \times V_{ph}$ across the closing link, destroying windings upon energisation.
Three Phase Delta Connection Configurations: 3-Wire, 4-Wire, and Grounding
A three phase delta connection is implemented in several standard industrial grounding configurations depending on process reliability requirements, local distribution rules, and neutral requirements.
- Ungrounded 3-Wire Delta: Common in chemical plants, offshore platforms, and continuous industrial processes where process interruption causes equipment damage. A single phase-to-ground fault does not interrupt operation because there is no direct return path for the fault current. However, electrostatic coupling can cause line-to-ground voltages on healthy phases to escalate by a factor of $\sqrt{3}$ (1.732) above normal, requiring sensitive ground-detection voltmeter schemes or insulation monitoring relays per IEEE 142.
- Corner-Grounded Delta (Grounded-Phase Delta): One corner terminal (historically Phase B / L2) is deliberately bonded directly to earth. This stabilises line-to-earth voltages on the remaining two phases at line potential ($V_L$) and provides a defined low-impedance path to trip protective breakers during insulation breakdown. Detailed operational rules and safety considerations for this scheme are covered in our engineering review on inside a corner delta transformer.
- 4-Wire High-Leg Delta (Center-Tapped Delta): Widely deployed in light commercial buildings requiring both three-phase 240 V power and single-phase 120 V circuits. The secondary winding between terminals X1 and X2 is centre-tapped to establish a neutral conductor (N). Terminals X1 to N and X2 to N yield 120 V. However, terminal X3 to neutral results in a geometric vector sum: $V_{high-leg} = V_{phase} \times \frac{\sqrt{3}}{2} = 240 \text{ V} \times 0.866 = 208 \text{ V}$. Per NEC 110.15 and 230.56, this 208 V conductor must be identified with durable orange marking (or other effective means) to alert electricians against connecting standard 120 V single-phase loads to this terminal.
Delta Connection Wiring vs Wye Diagram: Comparative Engineering Analysis
Deciding between delta connection wiring and a wye diagram (star configuration) dictates operational protection schemes, cable sizing, and motor starting dynamics across plant infrastructure. The choice directly influences secondary neutral grounding and harmonic paths.
When specifying power transformer windings, engineers frequently pair primary delta windings with secondary wye windings (such as Dyn11), leveraging delta's harmonic containment with star's stable multi-voltage neutral distribution. For banked pole-top or pad-mounted single-phase units, see our technical analysis on the wye delta transformer bank.
| Engineering Parameter | Delta ($\Delta$) Connection | Wye / Star (Y) Connection | Design Consideration |
|---|---|---|---|
| Line vs Phase Voltage | $V_L = V_{ph}$ | $V_L = \sqrt{3} \times V_{ph}$ | Delta coils experience full line voltage, demanding thicker inter-turn insulation. |
| Line vs Phase Current | $I_L = \sqrt{3} \times I_{ph}$ | $I_L = I_{ph}$ | Delta winding conductors carry 57.7% of line current, permitting smaller winding cross-sections. |
| Neutral Conductor | Absent (except high-leg split) | Naturally present at star point | Wye provides dedicated neutral for mixed single-phase lighting and three-phase power. |
| Zero-Sequence 3rd Harmonics | Circulate in closed loop | Trapped or flow to neutral | Delta prevents third-harmonic voltage distortion from polluting the upstream utility grid. |
| Single-Phase Earth Fault | Maintains operation (ungrounded) | Immediate breaker trip (grounded) | Delta offers high service continuity; wye limits transient overvoltages during faults. |
| Motor Starting Performance | Full torque and line current | Reduces starting current to 33% | Star-delta (Y-$\Delta$) motor starters use star to accelerate, then shift to delta for run mode. |
Worked Sizing and Current Calculation for a Delta-Connected System
Calculating line and phase current values for a delta-connected transformer secondary ensures correct overcurrent protective device (OCPD) selection and busbar thermal sizing.
Consider an industrial power system fed by a 500 kVA three-phase oil-immersed transformer with a 480 V delta secondary operating at full load.
- Apparent Power ($S$): $500 \text{ kVA} = 500,000 \text{ VA}$
- Secondary Line-to-Line Voltage ($V_L$): $480 \text{ V}$
- Winding Phase Voltage ($V_{ph}$): $480 \text{ V}$ (since $V_L = V_{ph}$ in delta)
- Calculate secondary full-load line current ($I_L$):
$$I_L = \frac{S}{\sqrt{3} \times V_L} = \frac{500,000}{1.73205 \times 480} = \frac{500,000}{831.38} = 601.4 \text{ A}$$ - Calculate individual winding phase current ($I_{ph}$):
$$I_{ph} = \frac{I_L}{\sqrt{3}} = \frac{601.4}{1.73205} = 347.2 \text{ A}$$
Alternatively, calculate directly from single-phase coil apparent power ($S_{phase} = 500 \text{ kVA} / 3 = 166.67 \text{ kVA}$):
$$I_{ph} = \frac{166,667 \text{ VA}}{480 \text{ V}} = 347.2 \text{ A}$$ - Conductor sizing verification: Internal coil conductors within the transformer must be designed for continuous duty at $347.2 \text{ A}$, while external transformer secondary bushings, terminal lugs, and feeder cables leaving the enclosure must be sized for the full line current of $601.4 \text{ A} plus safety factors mandated by IEC 60364-5-52 or NEC Article 310. Proper cable cross-sectional area calculations are detailed in our transformer wire sizing guide.
Vector Groups and Commissioning Verification for Delta Windings
Commissioning a transformer featuring delta connections requires verifying phase displacement and clock-hour vector relationships. In standard three-phase power transformers, delta windings are specified within vector codes such as Dyn11, Dd0, or Ynd1 per IEC 60076-1.
In a Dyn11 vector configuration (delta primary, wye secondary with accessible neutral), the low-voltage side leads the high-voltage side by 30 electrical degrees (the minute hand points at 11 o'clock, equivalent to $11 \times 30^\circ = 330^\circ$, or $+30^\circ$ lead). Paralleling two transformers with mismatched vector groups (for instance, attempting to parallel a Dyn11 unit with a Dyn5 or Dd0 unit) produces a large phase displacement across the paralleling breaker. A 30-degree phase difference between identical 480 V systems produces a cross-voltage differential of:
$$V_{diff} = 2 \times V_{L} \times \sin\left(\frac{30^\circ}{2}\right) = 2 \times 480 \times 0.2588 = 248.4 \text{ V}$$
Closing a tie-breaker with an out-of-phase condition of 248 V between nominally matched phase conductors induces destructive fault-level currents, tripping upstream switchgear instantaneously or causing catastrophic coil buckling.
Prior to site energisation, commissioning engineers must execute the following field checklist:
- Turns Ratio and Polarity Test: Use a three-phase transformer turns ratio (TTR) meter to verify winding turn ratios and polarity markings across all tap-changer positions. Acceptable deviation must remain within $\pm 0.5\%$ per IEEE C57.12.90.
- Winding Resistance Balance: Measure DC winding resistance across all line terminal pairs (Phase 1 to Phase 2, Phase 2 to Phase 3, and Phase 3 to Phase 1) using a low-resistance digital ohmmeter (Kelvin bridge). Phase-to-phase resistance values should balance within $1.0\%$ to $2.0\%$ across all three legs; variations indicate loose internal terminal jumpers or winding deformities.
- Insulation Resistance and Polarisation Index: Measure insulation resistance between HV-to-LV, HV-to-Ground, and LV-to-Ground with a 2.5 kV or 5 kV insulation tester. Minimum 1-minute values must comply with factory acceptance standards before applying grid voltage.
- Hot-Phasing Verification: After primary energisation, measure voltage across the open LV incomer circuit breaker terminals against the live busbar (L1-to-L1, L2-to-L2, L3-to-L3). The measured voltage between corresponding phases must read zero volts, while cross-phase measurements must match system line voltage.
Next steps: specifying and sourcing
When preparing procurement documentation or requesting a tender for distribution or power transformers, specifying the correct winding connection avoids costly change orders during factory acceptance testing. Provide the factory with your required high-voltage and low-voltage ratings, vector group (e.g., Dyn11, Dd0, or Ynd11), basic impulse insulation level (BIL), impedance tolerance, and enclosure IP/NEMA rating.
Explore our heavy-duty engineering solutions across oil-immersed transformers for primary substations and cast-resin dry-type transformers for indoor facilities. For project-specific connection diagrams, vector group calculations, or a factory quote, submit your single-line diagram (SLD) directly through our engineering team at our transformer quotation page.
Frequently asked questions
What is a 3 phase delta wiring diagram?
A 3 phase delta wiring diagram is a schematic showing three transformer or motor phase windings connected end-to-end in a closed triangular loop (finish-to-start). It identifies phase terminals, line conductors, and inter-winding links without an inherent neutral conductor.
How do you calculate voltage and current in a 3 phase delta connection?
In a 3 phase delta connection, line voltage equals phase winding voltage (V_Line = V_Phase). Line current equals the phase winding current multiplied by the square root of three (I_Line = √3 × I_Phase, or approximately 1.732 × I_Phase).
Why does a delta connection lack a neutral wire?
A delta connection forms a continuous closed mesh joining phase terminals sequentially without a common star junction. Because all three coils connect in series across the line phases, there is no physical central zero-potential node to derive a neutral wire.
What is the high leg on a 4-wire delta system?
The high leg (or wild leg) on a 4-wire delta transformer is the phase conductor opposite the centre-tapped secondary winding. It produces 208 V to neutral on a 240 V system (calculated as 240 V × 0.866) and must be tagged orange per NEC 110.15.
Can you convert a delta connection to a wye connection?
Yes, dual-voltage transformers and six-lead motors can be converted between delta and wye by rearranging the internal winding links. Rewiring from delta to wye changes the required operating voltage by a factor of √3 (1.732) and reduces starting currents.
What happens if one winding is reversed in a delta connection?
Reversing one winding in a delta loop inverts its 120-degree phase vector, creating an internal vector imbalance. Instead of summing to zero volts, a severe circulating voltage equal to twice the phase voltage develops, triggering destructive short-circuit currents when energized.
