Solar Battery Box: Engineering Sizing & Enclosure Specs

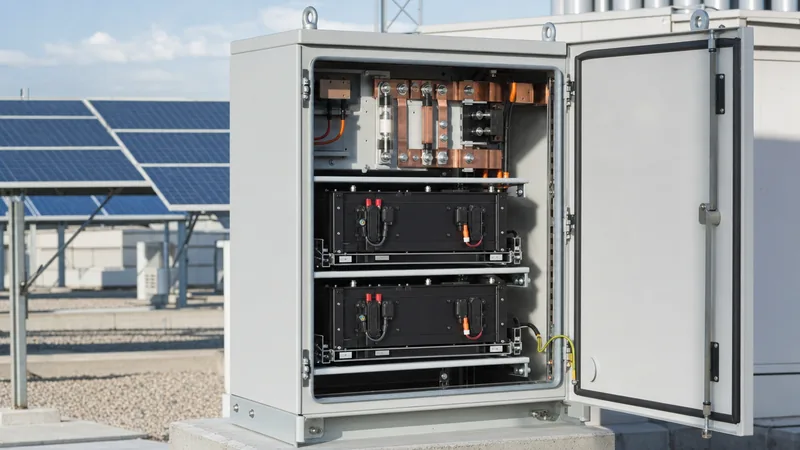

Quick answer: A solar battery box is an engineered, weather-sealed enclosure designed to house, protect, and regulate energy storage cells, battery management systems (BMS), and DC distribution hardware within photovoltaic installations. Proper selection requires calculating ingress protection (a standard unit 3R minimum for outdoor deployments), thermal insulation values, prospective short-circuit withstand, and hydrogen or off-gas pressure relief mechanisms.

In photovoltaic (PV) power infrastructure, secondary cells represent both the highest capital cost component and the most sensitive subsystem. Deploying batteries in exposed commercial, industrial, or remote microgrid environments exposes electrochemical cells to diurnal thermal cycling, humidity, saline mist, and mechanical impact. Without an appropriately rated solar battery box, battery degradation accelerates rapidly, capacity fade compounds, and catastrophic thermal events become genuine system liabilities. Integrating storage into distributed solar networks requires strict alignment with our broader Battery Storage Engineering Guide to preserve asset lifecycle and maintain grid compliance.

Enclosure Materials and Ingress Protection Ratings

A solar battery box installed outdoors must maintain environmental isolation against particulate ingress and moisture while retaining structural rigidity under high thermal and mechanical loads. Specifying engineers must define ingress protection in accordance with IEC 60529 or NEMA 250 standards. For sheltered installations, an IP54 or NEMA 3 enclosure may suffice, but exposed commercial installations require IP55 to IP66 (NEMA 4 or 4X) to eliminate moisture ingress during driving rain or salt-spray exposure.

Substrate selection dictates enclosure longevity across distinct macro-environments:

• Galvanised sheet steel (1.5 mm to 2.5 mm thickness): Hot-dip galvanised or electro-galvanised steel with an electrostatically applied polyester powder coating conforming to ISO 12944 atmospheric corrosivity category C3 or C4. This delivers mechanical impact resistance (IK10 per IEC 62262) at an optimal cost-to-weight ratio.
• Marine-grade aluminium (5052-H32): Highly recommended for coastal installations where salt spray accelerates ferrous oxidation. Aluminium offers superior thermal conductivity for passive heat rejection, combined with a 40% weight reduction compared to steel, easing rooftop and remote field handling.
• Stainless steel (Grade 304 or 316): Deployed in highly corrosive industrial environments, chemical processing facilities, or nearshore marine environments (ISO 12944 category a standard unit). Grade 316 provides superior resistance to chloride pitting due to its molybdenum content.

Continuous closed-cell ethylene propylene diene monomer (EPDM) or silicone perimeter gaskets are essential to preserve the IP seal over thermal operating cycles spanning -20°C to +60°C. Designers should review the detailed physical framing guidelines within our Battery Enclosure Engineering Guide to select appropriate chassis stiffeners and seismic tie-down points.

Integrating a Solar Power Battery Box with Off-Grid PV

Integrating a solar power battery box into a solar PV system requires coordinated routing of DC charge controllers, maximum power point tracking (MPPT) inputs, inverter links, and auxiliary controls. System architecture generally dictates whether the enclosure accommodates modular 19-inch rack-mounted batteries or raw prismatic cells assembled into series strings.

For modular deployments operating at nominal 48 V DC, an engineered solar power battery box should house the DC combiner, the primary battery disconnector, and communication pathways linking individual BMS units to the balance-of-plant controller. When planning system capacity, engineers frequently standardise on 48 V architectures to reduce balance-of-system conductor sizing; consult our 48V Solar Battery Guide for detailed terminal and string sizing calculations. The box must isolate low-voltage (LV) control and Modbus a standard unit bus wiring from power conductors carrying continuous battery currents to eliminate high-frequency electromagnetic interference (EMI) generated by inverter switching circuits.

Thermal Management and Environmental Safeguards

Thermal control within a solar battery box directly controls the rate of capacity fade and operational safety of the enclosed cell chemistry. Lithium Iron Phosphate (LiFePO4) cells experience lithium plating on the graphite anode if charged at temperatures below 0°C, causing irreversible capacity degradation and internal short circuits. Conversely, sustained cell temperatures above 35°C exponentially increase solid electrolyte interphase (SEI) growth, shortening operating life by up to 50% for every 10°C increase above baseline.

To maintain cell core temperatures within the optimum band of 15°C to 30°C, an engineered solar battery box incorporates multi-tier environmental controls:

1. Passive solar radiation shielding: A double-skin roof and radiant barrier side panels provide an air-gap convection boundary, attenuating internal temperature increases driven by high solar insolation (up to 1,000 W/m²).
2. Thermal insulation: High-density polyisocyanurate (PIR) or ceramic-fibre insulation lined with reflective aluminium foil minimizes diurnal heat transfer through enclosure walls.
3. Integrated PTC heating plates: Positive Temperature Coefficient (PTC) heating strips controlled by the internal BMS automatically pre-heat cells to above 5°C before the charge circuit is energised by incoming PV generation.
4. Forced ventilation or liquid cooling: For high C-rate applications (charge/discharge rates ≥ 0.5C), filtered positive-pressure fan systems or closed-loop liquid cooling cold plates reject internal battery losses directly to the ambient air.

Furthermore, in accordance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), enclosures housing lithium batteries must incorporate passive pressure relief vents to prevent structural housing rupture in the unlikely event of thermal runaway and gas generation.

Electrical Protection and DC Busbar Calculation

A fully integrated solar battery box must withstand the prospective fault currents supplied by low-internal-resistance lithium batteries. Unlike AC distribution systems, DC interruption involves sustained electrical arcing without natural current zero-crossings. Therefore, fusegear and isolators must carry certified DC interrupting ratings matching or exceeding prospective short-circuit currents.

Consider an industrial 48 V nominal DC battery bank composed of 16 series-connected 280 Ah LiFePO4 prismatic cells housed inside a solar battery box, feeding a 5 kW hybrid inverter:

• Nominal voltage: 51.2 V (16 cells × 3.2 V)
• Inverter low-voltage cutoff: 42.0 V
• Inverter efficiency (η): 93% (0.93)
• Maximum continuous discharge current: $$I_{cont} = \frac{P_{inv}}{V_{cutoff} \times \eta} = \frac{5,000\text{ W}}{42.0\text{ V} \times 0.93} = 128.0\text{ A}$$
• Design continuous ampacity (NEC 690.8 / 125% safety margin): $$I_{design} = 128.0\text{ A} \times 1.25 = 160.0\text{ A}$$

Conductors must be sized for at least 160 A using stranded, high-temperature copper wiring (e.g., 50 mm² or 1/0 AWG rated for 105°C). Next, consider the short-circuit condition. With an internal cell resistance ($R_{cell}$) of 0.25 mΩ:

• Total battery internal resistance: $$R_{int} = 16 \times 0.00025\ \Omega = 0.004\ \Omega\ (4\text{ m}\Omega)$$
• Conductor and contact loop resistance ($R_{loop}$): $0.002\ \Omega\ (2\text{ m}\Omega)$
• Total circuit resistance: $R_{total} = 0.004 + 0.002 = 0.006\ \Omega$
• Prospective short-circuit current ($I_{sc}$): $$I_{sc} = \frac{V_{oc}}{R_{total}} = \frac{54.4\text{ V}}{0.006\ \Omega} = 9,067\text{ A}\ (9.07\text{ kA})$$

Standard automotive or mini-circuit breakers rated at 3 kA or 5 kA DC will fail catastrophically during a dead short, causing contact welding and arc flash events. The solar battery box must be equipped with a fast-acting Class T fuse or an NH00-type DC disconnector rated for at least 20 kA to 100 kA DC breaking capacity at 80 V DC, fully protecting system equipment.

Specification Checklist for Battery Box RFQs

When submitting a Request for Quotation (RFQ) to an electrical equipment manufacturer, vague enclosure specifications often lead to field failures or costly revisions. Engineering procurement teams should utilise the following structured specification matrix to guarantee mechanical and electrical compliance.

Next steps: specifying and sourcing

Procuring a rugged, code-compliant solar battery box requires sharing clear design inputs with our engineering team: string configuration, nominal battery voltage, continuous discharge amperage, ambient temperature profiles, and targeted site ingress ratings. Whether deploying pre-assembled cabinets or multi-megawatt commercial projects, our factory designs and manufactures custom enclosures and containerised battery solutions built to international standards. Explore our modular energy storage systems and multi-megawatt liquid-cooled ESS containers, or submit your single-line diagrams directly through our quote request portal to receive technical drawings and manufacturing timelines.
