Current Transformer Manufacturers: Sourcing & Engineering Guide

Quick answer: Leading current transformer manufacturers engineer instrument transformers to precise electromagnetic saturation, thermal, and dielectric specifications defined by IEC 61869-2 or IEEE C57.13. Selecting the right supplier requires evaluating core annealing technology, automated secondary winding precision, factory routine test capabilities, and short-circuit withstand validation.

A current transformer (CT) steps down high primary currents into standard secondary currents of 1 A or 5 A, isolating sensitive metering and relay protection equipment from high-voltage primary circuits. When procurement engineers evaluate current transformer manufacturers, the distinction between a reliable unit and an operational liability comes down to design discipline. Inaccurate metering CTs lead to commercial revenue losses, while undersized or poorly wound protection CTs can cause catastrophic relay failure or nuisance tripping during network faults. Whether procuring ring-type CTs for MV switchgear applications, bushing CTs for power transformers, or split-core designs for retrofit systems, rigorous engineering scrutiny of the manufacturing source is essential.

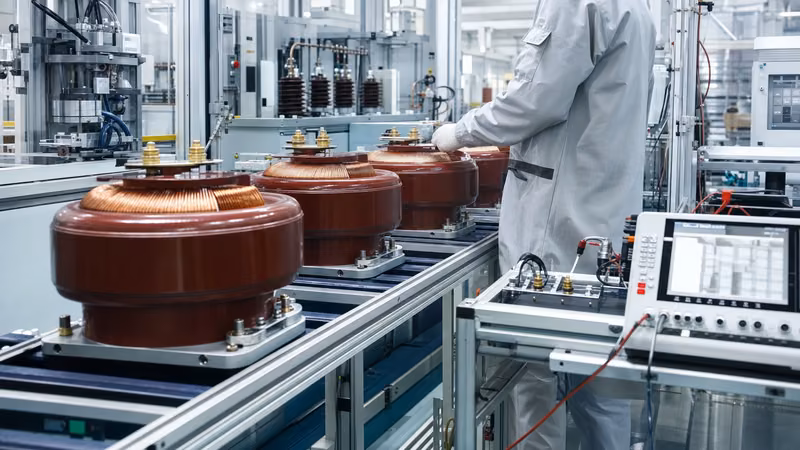

Key Capabilities of Industrial Current Transformer Manufacturers

A high-calibre current transformer manufacturing company maintains full control over core fabrication, winding tension, and vacuum potting. Producing instrument transformers requires sub-millimetre precision in secondary coil winding to ensure uniform turn distribution, eliminating local leakage fluxes that distort accuracy classes. Modern current transformer companies typically produce three distinct structural categories: cast-resin indoor units (polyurethane or epoxy), outdoor oil-immersed or cycloaliphatic epoxy units, and window-type or bushing instrument transformers integrated directly into medium-voltage enclosures.

Factory capabilities that directly affect equipment reliability include:

• Automated Toroidal Winding: CNC winding heads ensure precise tension, preventing turn-to-turn insulation abrading and maintaining symmetric copper distribution around the circumference.
• Controlled Atmosphere Annealing: In-house vacuum or hydrogen-atmosphere annealing furnaces restore magnetic permeability in silicon steel cores after slitting and winding.
• Vacuum Pressure Impregnation (VPI) or Encapsulation: Eliminates microscopic air voids within the insulation matrix, holding partial discharge below 5 pC at 1.2 times maximum operational voltage (per IEC 61869-1 clause 7.3.1).

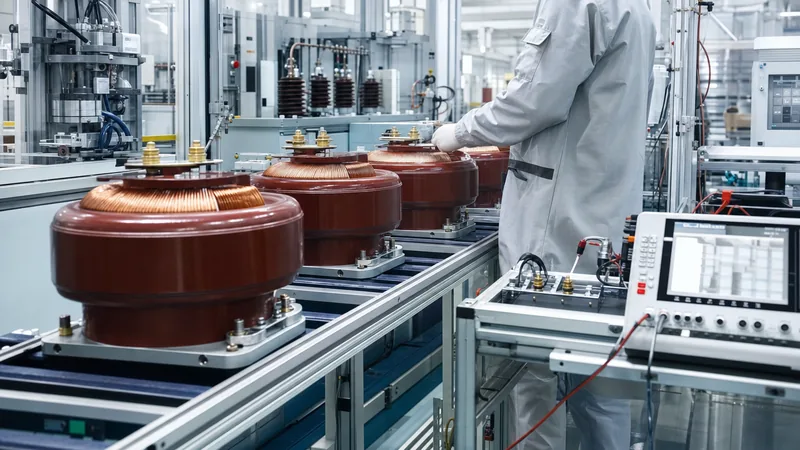

• Comprehensive Test Bays: Dedicated Faraday cages with automated test sets capable of performing ratio error, phase displacement, and excitation testing simultaneously.

Standards and Accuracy Classes: Evaluating Current Transformer Companies

Current transformer companies must design and certify equipment in accordance with regional standards, predominantly IEC 61869-2 internationally and IEEE C57.13 across North America. Specifiers must define whether a core is intended for revenue metering, operational metering, steady-state protection, or transient response. A metering core requires high permeability at low flux densities (5% to 120% of rated current) and deliberate saturation above rated current to protect connected meters, quantified by an Instrument Security Factor (FS ≤ 5 or FS ≤ 10).

Conversely, protection cores must maintain linear transformation up to multiple times the rated current. Under IEC 61869-2 Table 206, standard protection classes include 5P and 10P, where 5P20 indicates a composite error of less than 5% at 20 times rated symmetrical primary current. In contrast, IEEE C57.13 specifies protection accuracy using classifications such as C400 or C800, where 'C' denotes that ratio correction can be calculated (low secondary leakage reactance), and the number represents the secondary terminal voltage that the CT can deliver at 20 times rated secondary current without exceeding 10% ratio error. Qualified current transformer suppliers must supply routine test certificates demonstrating these limits across all specified secondary taps.

Core Materials and Construction: Comparing Current Transformer Brands

Core construction dictates the physical footprint, weight, and saturation flux density across different current transformer brands. High-end current transformer exporters deploy specialised magnetic alloys matched to the target accuracy class and installation environment. The choice of core material directly affects how the unit behaves under extreme primary current conditions, such as asymmetrical short circuits containing direct-current (DC) offset components.

When selecting a core configuration, consulting our Core Current Transformer Guide provides deeper context on continuous thermal ratings and construction geometry. For switchgear integrations built around IEC 61439 standards, busbar-type and ring-type designs must also satisfy clearance limits and thermal withstand parameters during through-fault currents.

CT Sizing and Knee-Point Calculation: A Factory-Floor Example

Accurate sizing calculations ensure that a protection current transformer producer builds a unit that will not saturate prior to relay operation. Saturation during an external through-fault causes false differential current readings, precipitating nuisance tripping. For Class PX or Class 5P protection cores, sizing hinges on verifying that the secondary excitation knee-point voltage (V_k) exceeds the total voltage drop during maximum fault current.

Consider an engineering calculation for a 11 kV feeder protection circuit protecting a feeder tied to substation protection schemes:

1. System Inputs: Maximum prospective symmetrical three-phase fault current (I_f) = 25 kA; CT ratio = 1200/5 A; secondary winding internal resistance (R_ct) = 0.35 Ω; one-way lead length = 75 m using 4.0 mm² copper cable (resistance R_wire = 0.00461 Ω/m); relay burden (R_relay) = 0.10 Ω.
2. Calculate Secondary Fault Current (I_s(max)):
   I_s(max) = 25,000 A × (5 / 1200) = 104.17 A.
3. Calculate Total Loop Burden Resistance (R_burden):
   Cable loop resistance (go and return) = 2 × 75 m × 0.00461 Ω/m = 0.6915 Ω.
   Total external burden = 0.6915 Ω + 0.10 Ω = 0.7915 Ω.
4. Calculate Minimum Required Knee-Point Voltage (V_k):
   V_k ≥ 2 × I_s(max) × (R_ct + R_burden)
   V_k ≥ 2 × 104.17 A × (0.35 Ω + 0.7915 Ω)
   V_k ≥ 2 × 104.17 × 1.1415 = 237.8 ≈ 238 V.

The factor of 2 accounts for typical system DC offset (remanent flux and primary circuit X/R transient response). A qualified manufacturer must confirm that the excitation curve provides an inflection point (where a 10% increase in secondary voltage produces a 50% increase in magnetising current, per IEC 61869-2 clause 3.4.201) at or above 240 V, while maintaining an excitation current under 30 mA at V_k/2.

Quality Assurance and Routine Testing by a Current Transformer Producer

A reliable current transformer producer executes comprehensive routine and type testing on every production batch before dispatch. Field failures frequently trace back to undetected insulation voids or secondary winding shorted turns that escape loose quality regimes. Engineers reviewing vendor test documents should demand individual factory acceptance test (FAT) reports rather than blanket type-test certificates.

Standard routine tests defined under IEC 61869-2 clause 7.2 must include:

• Verification of Terminal Markings and Polarity: Confirming subtractive polarity markings across primary and secondary terminals to prevent reverse-tripping in directional or differential protection schemes.
• Power-Frequency Withstand Tests: Applying 3 kV RMS for 60 seconds on secondary windings, and up to 28 kV, 38 kV, or 72 kV RMS on primary windings (dependent on standard nominal insulation levels).
• Partial Discharge Measurement: Ensuring partial discharge extinction voltage exceeds nominal operational levels with discharge magnitudes strictly below 10 pC (or 5 pC for resin-potted MV designs).
• Secondary Winding Resistance Measurement: Corrected to 75 °C for validation against the thermal and burden limits agreed in the contract specifications.
• Determination of Errors: Measuring ratio error (ε) and phase displacement (Δφ) at 5%, 20%, 100%, and 120% of rated current for metering cores using automated bridge comparators.

How to Qualify Current Transformer Exporters and Suppliers

Procuring from international current transformer exporters requires thorough verification of supply-chain authenticity, factory tooling, and international certifications. A low unit price often masks sub-standard silicon steel with excessive hysteresis losses or secondary coils wound with copper-clad aluminium instead of pure electrolytic copper wire. Establishing an audit protocol prevents project delays and site-level integration failures.

Prior to placing a commercial purchase order with current transformer suppliers, engineering teams should mandate the following qualification criteria:

1. Third-Party Type Test Certification: Verification of type-test reports from accredited independent laboratories or national testing bodies for short-time thermal current (I_th) and dynamic peak current (I_dyn).
2. Thermal Withstand Design: Confirmation that the CT design safely withstands rated short-time thermal currents (e.g., 25 kA or 31.5 kA for 1 or 3 seconds) without exceeding the thermal limits of insulation Class E (120 °C), Class B (130 °C), or Class F (155 °C).
3. Raw Material Traceability: Documented provenance for silicon steel batches, insulating epoxy resin systems, and secondary terminal block assemblies.
4. Packing and Environmental Sealing: Tropicalised packaging with desiccants and vapor-corrosion inhibitors (VCI) for maritime freight to ensure resin surfaces and metal baseplates arrive without micro-fractures or oxidation.

Next steps: specifying and sourcing

When preparing a technical inquiry for current transformer manufacturers, provide a complete schedule of requirements including primary rated current, secondary current (1 A or 5 A), system highest voltage (U_m), basic insulation level (BIL), continuous thermal current rating, accuracy class, and rated burden (VA). For protection cores, specify the required knee-point voltage, maximum secondary winding resistance, and network fault levels. Our factory engineers manufacture and test instrument transformers to IEC, IEEE, and ANSI standards, delivering custom solutions integrated directly with our HV/LV switchgear, power transformers, and transformer substations. Request a detailed engineering review and competitive proposal directly through our quotation inquiry page or discuss your project specifications with our technical sales team via our contact page.
