Key takeaways
- An on-grid solar system generates direct current from sunlight, converts it to alternating current via an inverter, and synchronises voltage, frequency, and phase directly with the utility grid.
- Grid-tied inverters comply with IEEE 1547 and IEC 62116 anti-islanding mandates, disconnecting within 2 seconds or 100 milliseconds depending on voltage deviation during a mains power outage.
- Net metering or feed-in billing calculates financial credits by tracking bidirectional active power flow in kilowatt-hours via Class 1.0 or Class 0.5 utility revenue meters.
- Modern grid-tied PV systems achieve typical inverter peak conversion efficiencies between 97.5% and 98.6% using high-speed Maximum Power Point Tracking (MPPT) algorithms.
- Adding an AC-coupled or DC-coupled lithium iron phosphate battery requires a dedicated power conversion system and automated transfer switch to isolate from the grid during backup operation.
Quick answer: An on-grid solar system works by converting solar irradiance into direct current (DC) electricity via photovoltaic panels, converting that DC power into alternating current (AC) with a grid-tied inverter, and synchronising the voltage and frequency to match the utility network. Electricity supplies on-site electrical loads first, while any surplus power exports through a bidirectional meter to the utility grid for feed-in credits.
Grid-tied installations represent over 90% of global distributed solar capacity. Because these systems lack physical isolation from utility distribution lines, their operational safety, power quality, and equipment sizing are governed by rigorous electrical engineering standards. Understanding how on grid solar system works requires examining the step-by-step conversion chain, synchronization mechanics, islanding protections, and how physical assets interface between the low-voltage distribution board and the local electricity grid. For system designers looking at advanced hybrid configurations, referencing our Battery Storage Engineering Guide: Solar BESS Specs & Sizing provides the broader context for utility and commercial scale integration.

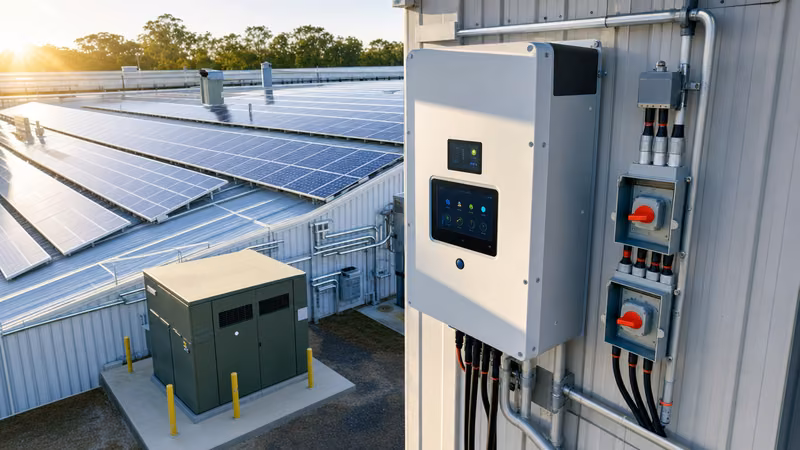

How on grid solar system works: The step-by-step energy conversion path
An on-grid solar system converts sunlight into synchronised alternating current through four distinct electrical operational stages.
- Photovoltaic Generation: Photons strike doped silicon wafers in the photovoltaic (PV) modules, exciting electrons to create a direct current across the P-N junction. Operating voltage typically ranges from 30 V DC to 45 V DC per standard 72-cell module, wired in series strings up to 600 V DC for residential or 1,000 V to 1,500 V DC for commercial arrays.
- Maximum Power Point Tracking (MPPT): The inverter continuously adjusts input impedance to locate the optimal knee on the current-voltage (I-V) curve, ensuring the PV string delivers maximum active power (P = V × I) under dynamic irradiance and cell temperature conditions.
- DC to AC Inversion: Insulated-gate bipolar transistors (IGBTs) or silicon carbide (SiC) MOSFETs within the inverter switch at high frequency (typically 16 kHz to 20 kHz) to reconstruct a pure sinusoidal wave with a Total Harmonic Distortion (THD) under 3%, satisfying IEEE 519 standards.
- Synchronised Distribution and Metering: The inverter matches the utility grid voltage (e.g., 230 V single-phase or 400 V three-phase) and grid frequency (50 Hz or 60 Hz). Current flows through the main distribution panel to supply connected consumer loads, with excess current flowing across a bidirectional smart meter into the distribution network.
How does residential solar power work with the utility grid?
Residential solar power operates in parallel with the utility service entrance to supply residential electrical circuits simultaneously.
Understanding how does residential solar power work on a practical level requires visualizing the main service panel as an electrical junction. Current follows the path of least resistance. When the PV array produces 5 kW and the active house loads draw 3 kW, 3 kW flows instantly into household branch circuits, while the remaining 2 kW flows through the main breaker to the grid. Conversely, if the home loads demand 7 kW while the solar array only generates 5 kW, the home draws the remaining 2 kW from the utility grid seamlessly without voltage sags or interruptions.
Engineers specifying these installations must comply with local installation standards such as NEC 705.12 (the 120% rule). This rule dictates that the sum of the primary main breaker rating and 120% of the inverter overcurrent protection device rating cannot exceed the rated ampacity of the main busbar. For deeper technical sizing considerations on residential busbars, refer to our guide on 200 Amp Solar System Sizing, Busbars & Battery Guide.
Grid-tied operational parameters and technical specifications
Grid-tied solar systems must meet stringent power quality, protection, and operational metrics set by international standardisation bodies including IEC and IEEE.
The table below provides typical electrical engineering parameters for residential and light-commercial on-grid solar installations adhering to IEC 61727 and IEEE 1547 standards:
| System Parameter | Nominal Value | Standard / Compliance Reference | Engineering Significance |
|---|---|---|---|
| AC Inverter Efficiency | 97.0% – 98.6% | IEC 61683 / Euro Efficiency | Minimises thermal losses in switchgear enclosures |
| Grid Frequency Range | 50 Hz ± 0.5 Hz / 60 Hz ± 0.5 Hz | IEC 60038 / IEEE 1547 Table 1 | Inverter tracks and locks via phase-locked loop (PLL) |
| Voltage Total Harmonic Distortion | < 3.0% at rated output | IEEE 519 Clause 5.1 | Prevents harmonic heating in local utility transformers |
| Power Factor Adjustment Range | 0.80 leading to 0.80 lagging | IEC 62116 / IEEE 1547 | Supports grid voltage stabilization via reactive power control |
| Anti-Islanding Disconnect Time | < 2.0 seconds (< 100 ms severe) | IEC 62116 Table 1 / UL 1741 SA | Protects utility maintenance personnel during line outages |
| DC Injection Limit | < 0.5% of rated AC current | IEC 61727 Clause 4.2 | Prevents saturation of distribution transformer iron cores |
How does a residential solar system work during power cuts: Anti-islanding safety
A standard on-grid residential solar system immediately stops producing electricity and disconnects from the premises wiring when utility power fails.
A critical consideration for engineers and homeowners answering how does a residential solar system work during blackouts is the anti-islanding protocol. When mains grid voltage drops to zero, a standard grid-tied inverter cannot remain energized. If it continued feeding electricity into local overhead or underground lines, it would create an energised electrical island. This poses a lethal hazard to line technicians repairing faults downstream.
Standard IEC 62116 defines active and passive methods used by inverters to detect a lost grid reference:
- Passive Detection: Monitoring sudden Rate of Change of Frequency (ROCOF) or vector shift outside statutory operational bands.
- Active Detection: Introducing tiny continuous perturbations in frequency or phase angle. If the utility grid is present, its infinite bus capacity absorbs the perturbation; if the grid is severed, the impedance change amplifies the drift, tripping the internal disconnect switch within 100 to 200 milliseconds.
Homeowners who require continuous electricity during an outage must incorporate energy storage solutions with an automatic transfer switch (ATS), explored in our Grid Intertie Solar Electric Systems: Engineering & Sizing Guide.
Net metering calculations: Worked engineering example
Net metering calculations evaluate the balance between cumulative active power consumed from the network and energy exported over a designated billing cycle.
To calculate the net billable energy for a facility, the metering algorithm applies directional registers:
ENet (kWh) = EImport (kWh) - [EExport (kWh) × CCredit]
Consider a commercial property operating an 80 kWp grid-tied solar array over a 30-day summer billing cycle:
- Array Daily Yield: 80 kWp × 4.5 peak sun hours × 0.82 system PR (Performance Ratio) = 295.2 kWh/day.
- Total Monthly Solar Generation: 295.2 kWh × 30 days = 8,856 kWh.
- On-Site Self-Consumption: Facility uses 5,200 kWh directly during operating hours.
- Monthly Grid Export (EExport): 8,856 kWh - 5,200 kWh = 3,656 kWh exported.
- Total Night/Off-Peak Grid Consumption (EImport): 4,800 kWh imported from utility.
If the utility applies a 1:1 net metering credit (CCredit = 1.0):
ENet = 4,800 kWh - 3,656 kWh = 1,144 kWh net billable energy.
If the utility uses an avoided-cost feed-in tariff where export value is credited at 75% of retail rates (CCredit = 0.75):
Credited Export = 3,656 kWh × 0.75 = 2,742 kWh equivalent
ENet = 4,800 kWh - 2,742 kWh = 2,058 kWh net billable energy.
For facilities dealing with unfavourable export ratios, installing local storage systems enables self-consumption optimisation. You can review detailed capacity calculations in our 10kWh Battery Guide: Sizing, Costs & Backup Engineering.
Engineering and equipment checklist for grid connection approvals
Connecting a grid-tied solar PV array requires technical documentation proving compliance with local network service provider (DNSP) connection codes.
Engineers and contractors should ensure the following documentation and safety apparatus are verified prior to final utility witness testing:
- Single-Line Diagram (SLD): Detailed electrical schematic showing array stringing, DC isolation switches, surge protection devices (SPD Class II, IEC 61643-31), inverter model, AC breaker ratings, and point of common coupling (PCC).
- Lockable AC Isolator: A manual, visible-break isolation switch rated to IEC 60947-3, accessible to emergency services and utility technicians outside the building footprint.
- Inverter Type Test Certificates: Official laboratory certification proving compliance with IEEE 1547.1, UL 1741 SA/SB, or IEC 62109-1/-2.
- Grid Protection Relay Settings: For commercial installations exceeding 30 kVA, an external Central Protection Relay (e.g., G99 in the UK or AS/NZS 4777 in Australasia) configured for under/over-voltage and frequency trip thresholds.
- Power Export Limitation: Verified dynamic curtailment devices if the local grid transformer does not permit unconstrained reverse power flow.
Next steps: specifying and sourcing
When specifying equipment for an on-grid or hybrid solar installation, obtaining exact network parameters from the distribution utility is vital before sourcing electrical plant. Prepare your project single-line diagram, peak DC array wattage, short-circuit current calculations, and utility connection requirements. For complete turnkey grid integration, explore our certified HV/LV switchgear and industrial energy storage systems designed to international IEC and IEEE specifications. Submit your engineering single-line diagram and load profile directly via our quote page to receive a full quotation with factory-backed compliance documentation.
Frequently asked questions
how on grid solar system works
An on-grid solar system works by converting solar energy into direct current electricity through PV panels, which a grid-tied inverter transforms into synchronised alternating current. This power supplies local building loads first, while any surplus is exported to the public utility grid through a bidirectional revenue meter.
how does residential solar power work
Residential solar power works by generating electricity on the roof and feeding it directly into the home main electrical service panel. Household appliances consume the solar electricity immediately, and if energy demand exceeds solar production, the system automatically draws supplementary power from the utility grid.
how does a residential solar system work
A residential solar system operates through interconnected components including solar panels, an inverter, safety disconnects, and a bidirectional meter. It automatically synchronises frequency and voltage with the utility grid, ensuring continuous electrical supply without requiring manual switching between solar and grid power.
Why does an on-grid solar system shut down during a power outage?
On-grid systems shut down during power cuts due to mandatory anti-islanding safety features defined in IEEE 1547 and IEC 62116. The inverter must stop sending electricity into the grid within two seconds to prevent energising distribution lines, protecting utility personnel working to restore power.
What happens to excess electricity in a grid-tied solar system?
Excess electricity generated by a grid-tied system flows backward through the utility service entrance into the public distribution grid. The local utility tracks this exported power via a bidirectional net meter and credits the system owner according to regional net metering or feed-in tariff policies.
