Server Battery Backup: Industrial Sizing & Design Guide

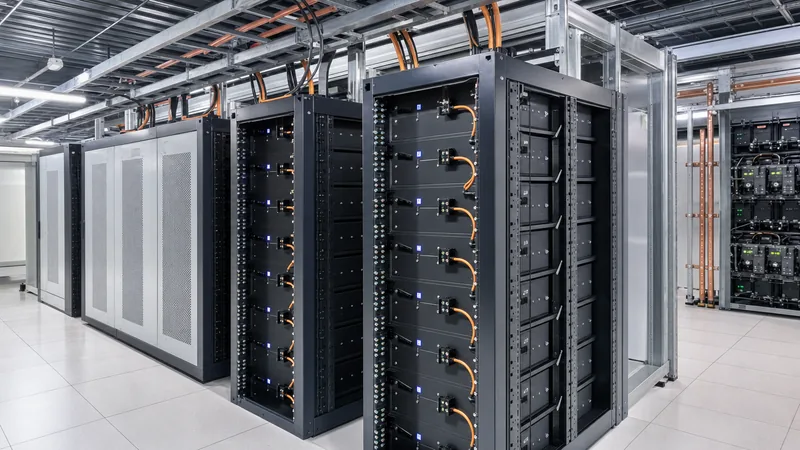

Quick answer: A server battery backup is an industrial-grade uninterruptible energy storage system configured to supply continuous DC power to an inverter, delivering filtered AC electricity to mission-critical IT racks during utility outages until auxiliary generators synchronise. Sizing relies on total rack kilowatt load, power conversion efficiency, system power factor, and required autonomy duration.

In enterprise computing and mission-critical telecommunications facilities, even a transient voltage sag lasting 20 milliseconds can force switch-mode server power supplies (SMPS) to shut down. Modern IT infrastructure demands continuous power quality under IEEE 1159 parameters. Implementing a dependable server battery backup architecture prevents catastrophic hardware failure, preserves data in cache, and supports controlled failovers during unplanned grid disruptions. Understanding how battery chemistry, thermal loads, and conversion electronics interact is vital for plant engineers and facilities directors seeking maximum operational reliability.

Core Functions of a Battery Backup for Server Room Infrastructure

A battery backup for server room operations isolates IT equipment from grid disturbances while delivering instant reserve energy during upstream outages. Modern server power supplies are susceptible to voltage swells, frequency shifts, harmonic distortion, and total blackouts. According to IEC 62040-3 Table 1, Class 1 true online double-conversion systems provide the highest degree of power quality by continually converting incoming AC power into DC to float the battery string, before synthesising pure sine-wave AC for downstream power distribution units (PDUs).

The secondary function is bridging the critical operational gap between utility interruption and the starting of standby generator sets. Most industrial diesel generators require between 10 and 20 seconds from cold cranking to reach stable voltage and frequency before automatic transfer switch (ATS) engagement. The energy storage reserve sustains critical rack infrastructure during this phase, avoiding dropped database transactions and lengthy reboot procedures. To explore medium-voltage site integration, review our guide on transformers for data centers.

Comparing Chemistries for Server Battery Backup Applications

Choosing the correct cell chemistry dictates the total footprint, structural floor loading, replacement lifecycle, and cooling costs of your IT infrastructure backup. Historically, Valve-Regulated Lead-Acid (VRLA) batteries, including Absorbent Glass Mat (AGM), dominated uninterruptible installations due to lower upfront capital expenses. However, Lithium Iron Phosphate (LiFePO4 or LFP) has emerged as the superior alternative across dense enterprise facilities.

LFP chemistry features high energy density, a cyclic endurance exceeding 3,000 to 5,000 cycles at 80 percent Depth of Discharge (DoD), and superior thermal stability. In contrast, VRLA strings typically achieve only 300 to 500 cycles and require planned replacement every three to five years under optimal conditions. For a detailed technical comparison of chemistries, consult our breakdown of LFP vs NMC battery technologies.

Engineering Sizing Calculation for Server Battery Backup

Sizing a server battery backup accurately requires quantifying real compute power, system losses, and battery discharge performance over the design autonomy duration. Avoid relying solely on nameplate power ratings, as compute infrastructure rarely draws 100 percent of power supply ratings continuously.

To calculate the required DC battery bank capacity, use the following engineering sequence:

1. Determine the Total Connected Active Power (kW): Sum the measured or designed maximum IT load in kilowatts, incorporating future growth margins (typically 20 to 25 percent).
2. Account for Inverter Efficiency: Divide the IT load by the inverter efficiency ($\eta_{inv}$), which generally ranges between 0.94 and 0.97 for modern double-conversion systems.
3. Calculate the Required DC Bus Power: Use the formula: $P_{DC} = \frac{P_{load\_kW}}{\eta_{inv}}$.
4. Compute Required Ampere-Hours (Ah): Apply Peukert's compensation or consult the manufacturer constant-power discharge tables based on nominal bus voltage ($V_{bus}$) and end-of-discharge voltage ($V_{cut-off}$).

Worked Example: A server room houses 12 racks drawing an aggregate load of 60 kW. The uninterruptible power system operates with an inverter efficiency of 95% ($\eta_{inv} = 0.95$) across a 480 V nominal DC bus containing 40 individual 12 V blocks in series, with a cut-off threshold of 1.67 V per cell (400 V DC minimum string voltage).

Required DC Power: $$P_{DC} = \frac{60\text{ kW}}{0.95} = 63.16\text{ kW}$$

If supplying power across 40 blocks, each block must deliver: $$\frac{63,160\text{ W}}{40\text{ blocks}} = 1,579\text{ W per block}$$

For a specified autonomy period of 15 minutes, referring to manufacturer constant-power discharge sheets indicates a battery unit rated at roughly 65 Ah is required. Factoring in an aging margin of 1.25 (as recommended by IEEE 1184 to ensure design capacity at the end of life), the minimum battery rating required is 81.25 Ah. For more architectural depth on industrial scale energy, consult our battery bank industrial guide.

Redundancy Configurations: N, N+1, and 2N Architectures

Industrial server rooms require distinct electrical topologies to achieve target availability levels set by standards like Uptime Institute Tier classifications. An N system contains only the capacity required to support the facility load, meaning any cell degradation or module failure drops the entire IT hall.

An N+1 configuration adds a single reserve power module or battery string. If an individual battery cabinet develops a high-resistance cell fault or opens an internal breaker, the remaining units absorb the load without interrupting operational capacity. This satisfies Tier II reliability requirements.

A 2N dual-bus architecture provides complete redundancy from the battery cabinets through power distribution paths to dual-corded server supplies. One entire power train can undergo offline maintenance, cell replacement, or bus cleaning without affecting server uptime. For facilities that demand fail-safe power design, review our principles for commercial backup power system design.

Thermal Management and Environmental Safety Standards

Thermal regulation directly impacts battery system longevity, efficiency, and life safety. For lead-acid architectures, operating temperatures higher than 25°C accelerate plate corrosion and water loss; every sustained 10°C elevation over 25°C cuts operating life by approximately 50 percent. LFP batteries tolerate wider temperature profiles up to 35°C without severe degradation, but internal thermal gradients across cells must be managed to maintain balance.

Engineering installations must strictly follow local safety codes:

• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems, establishing maximum allowable threshold quantities and separation distances to prevent fire propagation.
• NFPA 75 / 76: Fire protection standards for Information Technology Equipment and Telecommunications facilities, mandating clean-agent fire suppression systems (such as gaseous clean agents) instead of water sprinklers directly above energized battery strings.
• Hydrogen Venting (EN 50272-2 / IEEE 1635): VRLA battery rooms require continuous exhaust ventilation designed to maintain atmospheric hydrogen concentration below 1 percent by volume during equalization or heavy charging regimes.
• Seismic Anchoring: In active seismic zones, battery racks must comply with IBC (International Building Code) criteria, featuring braced string enclosures that prevent mechanical disconnects during seismic events.

Factory Acceptance Testing and Commissioning Checklist

Before energising a mission-critical server battery backup, comprehensive testing ensures that all components function within defined tolerances. Omissions during commissioning often cause premature downtime during the first grid outage.

Engineers should execute this factory-floor and site-acceptance sequence:

1. Torque Verification: Confirm all terminal inter-cell bolt torques using a calibrated torque wrench in accordance with manufacturer specifications, applying anti-corrosion grease on lead lugs.
2. Internal Resistance and Impedance Baseline: Record baseline internal resistance/conductance per cell using an impedance meter conforming to IEEE 1188 protocols.
3. Open-Circuit Voltage (OCV) Balance: Verify that individual cell voltages deviate by less than 1.5% across the entire series string.
4. Constant-Load Bank Discharge Test: Subject the array to a continuous 100 percent load bank test for the full designed autonomy period, logging voltage drops, terminal temperatures with a calibrated thermal imager, and cell float behaviour.
5. BMS and Emergency Stop Integration: Trigger simulated overvoltage, undervoltage, and thermal run conditions to confirm automatic tripping of the main DC contactor or molded-case circuit breaker (MCCB).
