230V Single Phase Power: Voltage, Sizing & 3-Phase Guide

Quick answer: A 230V single phase electrical supply delivers alternating current power between one live conductor and a neutral return, or across two active phase conductors, operating at a nominal potential difference of 230 volts. It serves as the global standard for residential, commercial, and light industrial terminal circuits, derived directly from secondary distribution substations or step-down transformers.

In international electrical distribution, understanding how 230V single phase circuits interact with upstream three-phase transformers is essential for proper plant design, load balancing, and equipment protection. While domestic properties run almost exclusively on single-phase circuits, commercial facilities and industrial plants must systematically manage 230 1 phase loads fed from higher-voltage sources such as 400V or 480V distribution networks. Sizing cables, selecting protection ratings, and choosing transformer secondary configurations depend on whether 230V is derived as a line-to-neutral or line-to-line voltage.

What Is 230V Single Phase Power and How Is It Derived?

A 230V single phase system is an alternating-current circuit that delivers electrical energy through a single sinusoidal voltage wave. Per IEC 60038 (IEC Standard Voltages), the nominal low-voltage supply across Europe, the UK, Australia, and many Asian and African territories is 230V with an allowable operating band of +10% to -6% (216.2V to 253V), typically delivered at 50 Hz.

Distribution transformers produce this supply in two distinct ways depending on regional network topology:

• Four-Wire Wye (Star) Distribution: Common in IEC regions, a distribution transformer secondary is configured in a Dyn11 vector group delivering 400V line-to-line. The 230V single phase circuit is derived between any single line conductor (L1, L2, or L3) and the earthed star point (neutral), yielding $400\text{ V} / \sqrt{3} \approx 230.9\text{ V}$. Detailed design aspects of these units are covered in our single phase transformer guide.
• Split-Phase and Line-to-Line Arrangements: In parts of the Americas and Japan operating under ANSI/IEEE standards, a single-phase transformer with a centre-tapped secondary produces 120/240V or 115/230V. In these arrangements, 230V is drawn across the two outer ungrounded conductors, while 115V appears between either active leg and the neutral tap. Alternatively, in certain legacy industrial installations, a 230v 3 phase delta secondary supplies 230V line-to-line.

Comparing 230V Single Phase vs 230V 3 Phase Systems

A 230V single phase circuit delivers power through one alternating wave, whereas a 230v three phase circuit delivers three overlapping sinusoidal waves spaced 120 electrical degrees apart. This fundamental difference dictates conductor requirements, power density, and motor starting performance.

Industrial machinery often requires balanced three-phase power because it produces a constant rotating magnetic field in electric motors without auxiliary capacitors. When evaluating infrastructure upgrades or machinery procurement, engineers compare both topologies using concrete electrical metrics.

To evaluate how 230V systems compare with higher-voltage industrial architectures, review our technical analyses of 208V 3 phase power and 480V 3 phase power distribution.

Calculating Current and Transformer Sizing for 230 1 Phase Loads

Calculating electrical current for a 230 1 phase installation requires applying Ohm's and Joule's electrical laws incorporating apparent power, real power, and operating power factor. Sizing a step-down transformer secondary must account for continuous loading rules defined in IEC 60364 or NEC Article 215/220.

The mathematical relationships are defined as:

$$\text{Current (Amperes)} = \frac{P_{\text{kW}} \times 1000}{V \times \cos\phi} = \frac{S_{\text{kVA}} \times 1000}{V}$$

Consider an engineering calculation for a commercial sub-distribution board supplying a bank of 230V single phase servers and air handling units:

1. Determine the Total Connected Load: Connected real power $P = 42\text{ kW}$ at an average operating power factor ($\cos\phi$) of 0.88 lagging.
2. Calculate Apparent Power ($S$): $$S = \frac{42\text{ kW}}{0.88} = 47.73\text{ kVA}$$
3. Compute Continuous Full Load Amperes (FLA): $$I_{\text{FLA}} = \frac{47,730\text{ VA}}{230\text{ V}} = 207.52\text{ A}$$
4. Apply Continuous Duty Safety Factor: Per standard engineering design rules, circuits operating under sustained load for three hours or more require a 125% continuous rating multiplier: $$I_{\text{design}} = 207.52\text{ A} \times 1.25 = 259.4\text{ A}$$
5. Transformer Rating Selection: The required step-down transformer rating must satisfy: $$S_{\text{min}} = 47.73\text{ kVA} \times 1.25 = 59.66\text{ kVA}$$ Standard international preferred kVA ratings dictate selecting a 63 kVA or 75 kVA dry-type distribution transformer.

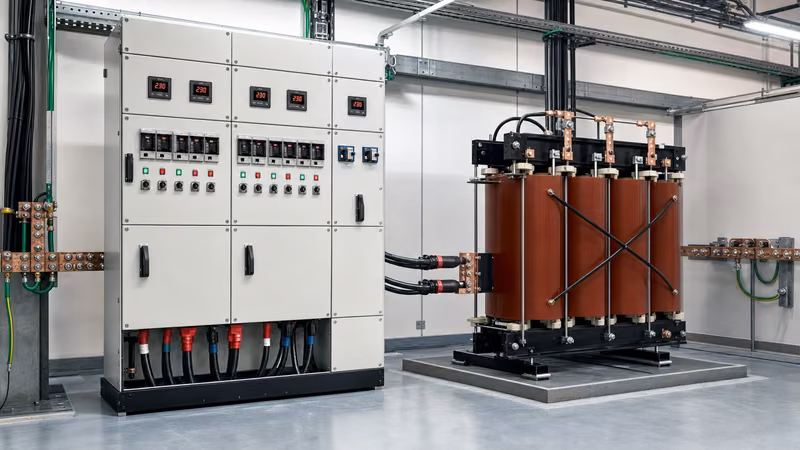

Deriving 230V Single Phase from Three-Phase Transformers

Deriving 230V single phase power from a three-phase transformer secondary requires matching transformer winding configurations to building load characteristics. Unbalanced extraction of single-phase loads from three-phase transformers is one of the primary causes of excessive neutral currents and harmonic distortion in industrial plants.

Two common winding methodologies are deployed:

1. Star (Wye) Secondary with Neutral: In a standard 400V/230V three-phase four-wire wye transformer, single-phase 230V loads are connected phase-to-neutral. If phase loads are not balanced within 10% of one another, the neutral conductor carries substantial return current ($I_{\text{N}} = I_{\text{A}} + I_{\text{B}} + I_{\text{C}}$ as vectors). Under non-linear load conditions, third-order triplen harmonics add arithmetically in the neutral, potentially causing neutral conductor currents to exceed 140% of phase currents. In such installations, fully rated or double-sized neutrals are mandatory.
2. Delta Secondary Configurations: When working with open-delta or closed-delta 240V/230V transformer banks, a centre tap on one winding creates a split-phase source for lighting and controls while preserving three-phase capacity for motors. This creates a high-voltage phenomenon on the third leg, detailed in our technical guide on 3 phase high leg systems. For sites requiring isolated conversion between system types, engineers implement dedicated solutions as outlined in our analysis of three phase to one phase transformers.

Transformer Specification and Testing Checklist for 230V Distribution

Procuring distribution transformers that feed 230V single phase or 230v 3 phase networks requires clear performance criteria in the technical requisition package. Specifying exact winding material, temperature rises, and factory acceptance tests ensures reliability over a 30-year design life.

The following technical parameters should be incorporated directly into the equipment specification schedule:

Next steps: specifying and sourcing

When specifying distribution equipment to supply 230V single phase networks or converting existing lines to 230v three phase power, early collaboration with transformer engineers prevents costly field modifications. Prepare your operational parameters, including primary medium-voltage supply ratings, secondary load profiles, duty cycles, and environmental constraints. Explore our range of oil-immersed transformers for outdoor substation distribution, or select dry-type transformers for indoor commercial installations. Contact our technical sales team directly to submit single-line diagrams or request an engineering review through our transformer quotation page.
