Amps to kVA Conversion Guide: Formulas, Tables and Sizing

Quick answer: To convert amps to kVA, calculate apparent power by multiplying line current by line-to-line voltage and 1.732 (the square root of 3) for three-phase systems, then divide by 1,000. For single-phase systems, multiply line-to-neutral voltage by current and divide by 1,000.

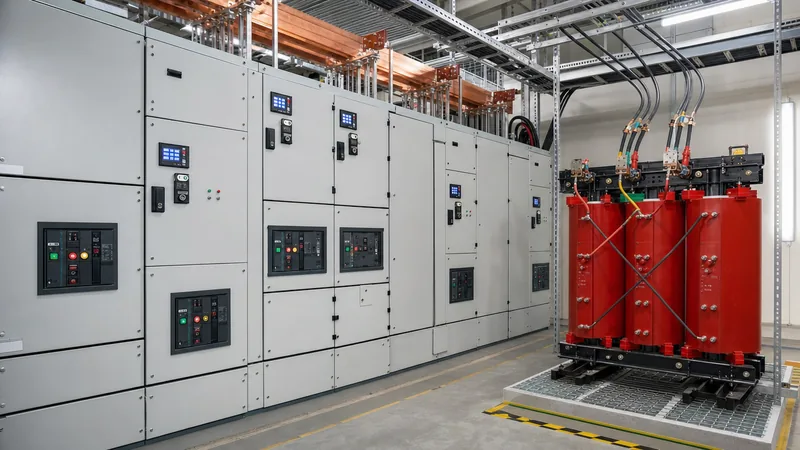

Electrical engineers, plant consultants and commissioning technicians calculate apparent power ratings to select distribution transformers, package substations, busbars and incoming circuit breakers. Because power transformers and switchgear assemblies are thermally limited by current carrying capacity rather than real work performed, nameplate capacities are specified in kilovolt-amperes (kVA) rather than kilowatts (kW). Sizing upstream equipment requires an accurate conversion from measured or design line current to apparent power across different standard voltage levels.

Properly sizing equipment prevents continuous overload tripping, elevated core temperatures and premature insulation ageing. This technical reference presents the underlying mathematics, provides direct formulas for single-phase and three-phase networks, details a 100 A worked engineering comparison, and presents design reference tables tailored for electrical distribution engineers. For comprehensive plant sizing methodologies, consult our companion kVA Calculator: Substation & Transformer Sizing Guide.

Fundamental Formula: How to Convert Amps to kVA

Converting current to apparent power relies on fundamental AC circuit laws defined in IEC 60076-1 clause 4.1, where apparent power represents the product of root-mean-square (RMS) voltage and RMS current.

Apparent power (designated as S) measures the total network demand, encompassing both active power performing mechanical work (kW) and reactive power supporting electromagnetic fields (kVAR). To convert volt amps to kVA, one simply divides the volt-ampere value by 1,000, establishing the foundation for all secondary distribution calculations.

For a single-phase alternating current system, the conversion formula is:

S(kVA) = (V × I) / 1,000

Where:

• S(kVA) is the apparent power in kilovolt-amperes.
• V is the line-to-neutral voltage in volts (RMS).
• I is the phase current in amperes.

For balanced three-phase alternating current distribution systems, apparent power accounts for the 120-degree phase displacement across three lines:

S(kVA) = (√3 × V_LL × I) / 1,000 ≈ (1.73205 × V_LL × I) / 1,000

Where:

• V_LL is the line-to-line voltage in volts (such as 380 V, 400 V, 415 V, 480 V, 6.6 kV, 11 kV or 33 kV).
• I is the line current in amperes.

Because apparent power represents vector magnitude, power factor (cos φ) is excluded from this specific calculation. Power factor is only required when converting between amperes and active power in kilowatts.

Convert Amp to kVA Calculator Step-by-Step Logic

A manual or automated convert amp to kva calculator processes input variables through a deterministic four-step sequence to eliminate phase-configuration errors.

Commissioning engineers and design consultants should follow this standard procedure when verifying equipment ratings during substation design:

1. Identify the electrical phase configuration: Verify whether the circuit is single-phase two-wire, split-phase three-wire, or three-phase three/four-wire. Never assume three-phase supply when examining low-voltage auxiliary panels.
2. Determine true line-to-line RMS operating voltage: Measure or extract nominal phase-to-phase system voltage. In industrial installations, typical line-to-line voltages are 400 V (IEC standard), 480 V (North American industrial), or medium-voltage supplies such as 11,000 V and 33,000 V.
3. Identify peak continuous phase current: Obtain full-load current (FLC) in amperes from equipment schedules or thermal imaging data loggers. Ensure the value reflects continuous thermal load rather than momentary motor inrush.
4. Apply the three-phase multiplier: Multiply line current by line-to-line voltage, multiply by 1.73205, and divide by 1,000 to establish required substation transformer capacity.

When specifying incoming panels for a unit substation installation, always confirm whether the ampacity stated on drawings reflects line current or single-phase tributary load before applying conversion mathematics.

100 Amp to kVA: Worked Engineering Calculations

A 100 amp to kva conversion yields vastly different apparent power capacities depending directly on system voltage and phase arrangements.

A baseline rating of 100 amperes represents a standard modular frame size for low-voltage moulded case circuit breakers (MCCBs) and motor control centres. Below are worked engineering calculations demonstrating how a continuous current of 100 amperes translates across distinct operating voltages.

Case 1: Single-phase 230 V commercial branch circuit

S = (230 V × 100 A) / 1,000 = 23.0 kVA

A 100 A single-phase 230 V sub-distribution feed demands exactly 23 kVA of dedicated distribution transformer capacity.

Case 2: Three-phase 400 V standard European/IEC industrial supply

S = (1.73205 × 400 V × 100 A) / 1,000 = 69.28 kVA

On a standard 400 V grid, 100 ampere to kva equates to 69.28 kVA. For practical procurement, this load requires a standard 75 kVA or 100 kVA distribution transformer to avoid running near thermal limits.

Case 3: Three-phase 480 V North American industrial busway

S = (1.73205 × 480 V × 100 A) / 1,000 = 83.14 kVA

At 480 V line-to-line, drawing 100 A requires 83.14 kVA of transformer source capability.

Case 4: Three-phase 11 kV medium-voltage distribution feeder

S = (1.73205 × 11,000 V × 100 A) / 1,000 = 1,905.26 kVA

At 11 kV, a 100 A line current translates to 1.91 MVA (1,905 kVA), requiring a standard 2,000 kVA medium-voltage transformer. This demonstrates why voltage must be rigorously verified before running conversion routines.

Standard Current to kVA Reference Table for Substation Sizing

Direct lookup tables allow plant designers to translate nominal continuous current ratings directly into equivalent three-phase apparent power requirements without repetitive hand calculations.

The table below outlines calculated three-phase apparent power across standard low-voltage distribution levels alongside recommended nominal switchgear busbar ratings structured under IEC 61439 low-voltage switchgear standards.

Values in this table assume ideal sinusoidal waveforms and symmetrical three-phase loading in accordance with IEEE C57.12.00 Table 1 guidelines for liquid-immersed and dry-type distribution transformers.

Specification and Engineering Checklist for Switchgear Rating Sizing

Converting current to apparent power represents only the initial calculation in specifying industrial switchboards, transformers and package substations.

Procurement specifications must account for real-world environmental derating, safety margins and harmonic currents to prevent thermal failure. Engineers should verify each item on this factory specification checklist before issuing a request for quotation (RFQ):

• Operating thermal headroom: Apply a minimum safety factor of 1.20 to 1.25 (80% continuous operating rule per NFPA 70 Article 215.2 and IEC 60364-5-52) over calculated continuous kVA.
• Harmonic spectrum (K-factor): In facilities with variable speed drives, data servers or battery storage inverters, non-linear currents generate additional eddy current losses. Specify K-4, K-13 or K-20 rated units when total harmonic distortion of current (THDi) exceeds 15 percent.
• Ambient temperature derating: Standard nameplates assume an average ambient temperature of 30°C over 24 hours with a maximum peak of 40°C (IEC 60076-1 clause 5.1). If installation sites reach 45°C or 50°C, apply transformer manufacturer thermal derating tables (typically 1% capacity reduction per °C above 40°C).
• Altitude derating: Installations exceeding 1,000 metres above sea level require thermal and dielectric clearance derating due to decreased air density cooling efficiency.
• Short-circuit withstand compatibility: Ensure rated symmetrical fault-clearing capabilities of incoming HV/LV switchgear match prospective short-circuit levels calculated from the upstream source impedance and transformer percentage impedance (%Z).

Common Site Pitfalls when Converting Current to Transformer Capacity

Discrepancies between theoretical calculations and site performance often emerge from misinterpreting nameplate metrics and unbalance factors.

One widespread design error is summing individual phase currents directly on an unbalanced three-phase network. For example, if Phase A measures 120 A, Phase B measures 95 A, and Phase C measures 85 A, calculating kVA using the average current (100 A) produces an undersized selection. Distribution transformers must be sized to support the highest loaded phase continuously without exceeding individual coil temperature-rise limits specified in IEC 60076-2.

A second common pitfall is confusing rated secondary voltage under no-load conditions with nominal load voltage. In accordance with standard distribution transformer design, no-load secondary terminal voltage is intentionally engineered 5 percent higher (for example, 420 V or 433 V no-load for a 400 V nominal rating) to compensate for internal impedance voltage drop under full load. Using measured no-load secondary voltage in full-load current calculations introduces mathematical skew into switchgear busbar selections.

Finally, engineering teams occasionally confuse real power in kW with apparent power in kVA when calculating current requirements for power conversion equipment, including commercial battery systems and solar installations. Motors and inductors draw reactive current that increases total line amperes without increasing kilowatt output. Converting amps directly to kVA ensures all magnetic and thermal physical constraints are accurately accommodated.

Next steps: specifying and sourcing

Selecting transformers, ring main units and low-voltage incoming switchgear requires transitioning from simple mathematical formulas to verified factory specifications. When preparing inquiries for custom assemblies, supply our engineering team with your nominal primary and secondary voltages, target full-load continuous current, prospective short-circuit levels and site environmental limits. We design and manufacture comprehensive power equipment, including modular prefabricated transformer substations and high-efficiency cast resin dry-type transformers engineered to IEC and IEEE standards. Visit our substation quote portal or submit your equipment schedules to our project engineers through the factory contact page for project-specific engineering reviews and commercial tenders.
