Electrical Enclosures: Engineering, Ingress & Sizing Guide

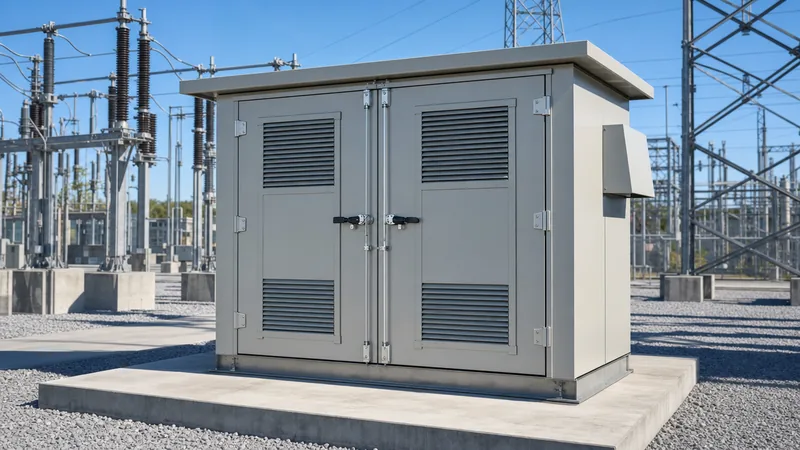

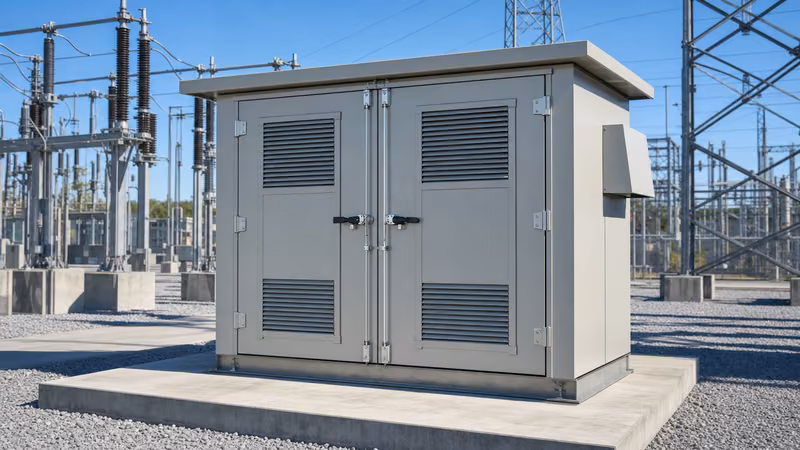

Quick answer: Electrical enclosures are engineered housings that protect sensitive medium- and low-voltage electrical equipment from moisture, dust, chemical ingress, mechanical impact, and thermal extremes while preventing accidental human contact with energised components. Engineered under standards such as IEC 62208, IEC 60529, and NEMA 250, they dictate power distribution reliability in outdoor box-type substations, industrial plants, and utility yards.

In high-capacity power distribution networks, an enclosure is not merely a sheet-metal shell. It serves as an active barrier against environmental degradation, arc-flash hazards, and thermal runaway. Whether housing secondary distribution switchgear, transformer protection relays, or modular auxiliary controls, deploying properly engineered electrical enclosures guarantees plant uptime and structural longevity under severe ambient operating conditions.

Material Selection: Steel Electrical Cabinet vs Stainless and Aluminium

Selecting the correct structural material for a steel electrical cabinet determines whether the installation will achieve a 25-year design life or suffer premature wall thinning and weld failure from oxidation. Specifiers must balance structural rigidity, magnetic eddy-current heating, weight constraints, and atmospheric corrosivity categories as defined by ISO 12944-2.

For standard indoor industrial motor control centres and medium-voltage switchgear, cold-rolled mild steel (CRCA) electro-galvanised with a thermoset polyester powder coat (minimum 80 to 120 microns dry film thickness) provides adequate mechanical strength at a competitive cost profile. However, outdoor installations such as unit substation engineering assemblies demand heavy-duty alternatives to counter rain, particulate bombardment, and fluctuating ultraviolet radiation.

Where ambient marine salts or sulphur compounds are present, standard carbon electrical metal enclosures degrade rapidly at seams and hinge cutouts. Specifying grade 316L stainless steel with continuous passivation or marine-grade aluminium prevents pitting corrosion. Additionally, non-magnetic aluminium gland plates are required on bottom entry panels where single-core medium-voltage cables pass through, eliminating localised eddy current induction and heating around the conductor entry points.

Ingress Protection and NEMA Standards for Electrical Enclosures

Ingress protection defines the barrier efficiency of an enclosure against solid particulate ingress and water penetration under specified test conditions. While European and international markets reference the IEC 60529 standard for Ingress Protection (IP) ratings, North American jurisdictions enforce NEMA 250, which includes mechanical durability, internal condensation drainage, and ice formation parameters not covered by the IP system alone.

For utility distribution switchgear and pad-mounted cabinets, specifying IP54 per IEC 60529 ensures complete protection against contact, limits harmful dust accumulation, and protects equipment against water splashing from any direction. Where high-pressure washdown occurs or driving desert dust storms are anticipated, engineers specify IP65 or IP66. In North American projects, a NEMA Type 3R enclosure is the industry baseline for outdoor installations housing IEC 61439 switchgear assemblies, providing protection against falling rain, sleet, and external ice accumulation without trapping condensation.

To preserve ingress integrity, door seals must feature foamed-in-place polyurethane (FIPFG) or continuous EPDM neoprene gaskets. Gasket materials must resist permanent compression set under high ambient temperatures (exceeding 55 degrees Celsius inside the sun-exposed skin) and remain resilient against chemical degradation. Bolted access covers require torque-controlled blind fasteners or captured captive screws to prevent localized gasket pinching that compromises the ingress barrier.

Thermal Dissipation and Sizing for Large Electrical Enclosures

Thermal sizing for large electrical enclosures prevents critical internal switchgear and digital relay components from exceeding their maximum permissible operating temperatures under continuous rated load. Equipment life halves for every 10 degrees Celsius rise above nominal thermal thresholds, making accurate heat transfer modelling critical during the design phase.

Internal heat generation ($P_{loss}$, in Watts) originates from switchgear busbar resistance, contactor coils, circuit breaker poles, and transformer auxiliary losses. When relying on natural convection across the enclosure envelope, the equilibrium temperature rise inside the enclosure ($\Delta T$, in Kelvin) is determined in accordance with IEC/TR 60890 using the following fundamental heat transfer relation:

$$\Delta T = \frac{P_{total}}{k \times A_{eff}}$$

Where $k$ represents the composite heat transmission coefficient (typically 5.5 W/(m²·K) for sheet steel and 3.5 W/(m²·K) for double-walled insulated aluminium), and $A_{eff}$ denotes the effective cooling surface area calculated per IEC 60890 clause 5.2 based on installation geometry (free-standing, wall-mounted, or banked).

Consider an outdoor secondary distribution enclosure housing 24 kV switchgear with internal auxiliary equipment, configured as follows:

• Internal heat generation ($P_{loss}$): 1,450 W
• Solar radiation absorption ($P_{solar}$): 500 W/m² hitting an effective horizontal roof and exposed southern facade (yielding an added thermal load of approximately 850 W on an unshaded dark panel)
• Total thermal load ($P_{total}$): 2,300 W
• Total effective external surface area ($A_{eff}$): 14.2 m²
• Enclosure construction: Single-wall carbon steel, $k = 5.5\text{ W}/(\text{m}^2\cdot\text{K})$

Under natural convection: $$\Delta T = \frac{2300\text{ W}}{5.5\text{ W}/(\text{m}^2\cdot\text{K}) \times 14.2\text{ m}^2} \approx 29.4\text{ K}$$

If the maximum ambient temperature outside the substation is 40 degrees Celsius, the internal internal air temperature will stabilize at approximately 69.4 degrees Celsius. Because standard LV microprocessors and trip units suffer erratic thermal-magnetic tripping or memory lockups above 55 degrees Celsius, natural convection is insufficient. The design must incorporate forced ventilation with dual exhaust filter fans rated for at least 650 m³/h or an active industrial closed-loop air conditioner to decouple internal air circulation from contaminated ambient air.

Internal Segregation and Arc-Fault Mitigation in an Electrical Enclosure Panel

Internal segregation inside an electrical enclosure panel isolates major functional components from busbars and terminal fields, minimizing the risk of accidental contact and containing potential short-circuit faults. Standardised under IEC 61439-2, internal separation forms range from Form 1 (no internal partition) up to Form 4b (full separation between busbars, functional units, and external cable connection terminals).

In industrial infrastructure and utility box-type substations, Form 3b or Form 4b enclosures are preferred for low-voltage compartments. This construction allows maintenance technicians to service a feeder breaker or terminate incoming cabling while adjacent feeders and central busbars remain fully energized. Metal or insulating barriers must maintain a minimum mechanical barrier rating of IP2X to safeguard human fingers against live terminals during routine maintenance.

For medium-voltage equipment, enclosure construction shifts toward metal-clad configurations meeting IEC 62271-200. These assemblies feature earthed metallic partitions separating the circuit breaker compartment, busbar compartment, and cable termination box, aligned with criteria detailed in our guide to metal-clad switchgear. Furthermore, when an internal arc fault occurs, an arc-resistant enclosure redirects explosive overpressure, superheated gases, and vaporised copper upward through calibrated pressure-relief flaps located on the enclosure roof, shielding operators standing in front of, beside, or behind the cabinet perimeter.

Specifying an Electrical Enclosure Box: Engineering Checklist

Specifying an electrical enclosure box or continuous metal electrical cabinet suite requires a rigorous technical definition of mechanical, electrical, and environmental boundary constraints. Omitting key integration parameters causes costly site revisions, compromised ingress ratings, or premature component failure.

1. Define Environmental Baseline: Identify maximum and minimum ambient temperatures, peak relative humidity, solar radiation exposure, and seismic ground acceleration according to IEEE 693 or local building codes.
2. Determine Material and Finish: Select between hot-dip galvanised steel, 304, or 316L stainless steel. Specify dry film thickness (DFT), powder chemistry (pure polyester for UV exposure), and salt-spray test hours per ASTM B117 (minimum 1,000 hours for industrial outdoor sites).
3. Establish Ingress and Mechanical Protection: Confirm the required IP code (IEC 60529) or NEMA rating (NEMA 250), alongside the mechanical impact resistance (IK rating per IEC 62262, with IK10 recommended for unprotected outdoor substations).
4. Calculate Dynamic Short-Circuit Forces: Ensure the internal mounting framework, DIN rails, and busbar supports withstand electrodynamic repulsion forces under maximum prospective fault current ($I_{cw}$ and $I_{pk}$) without deflection.
5. Plan Cable Entry and Earthing: Specify bottom or top gland plates (3 mm non-magnetic brass or aluminium for single-core MV cables), earthing copper busbars sized for prospective earth-fault current (e.g., 300 mm² hard-drawn copper bar), and door earth bonding straps.
6. Integrate Environmental Controls: Calculate the requirement for anti-condensation heating elements (controlled by hygrostat/thermostat combinations) and active forced cooling or closed-circuit heat exchangers.

Before signing off factory acceptance tests (FAT), verify dimensional clearances, verify that lifting lugs or forklift channels align with total dynamic shipping loads, and ensure the enclosure aligns with overarching standards detailed in the modular substation design documentation.
