Substation Breaker Sizing, Ratings & Selection Guide

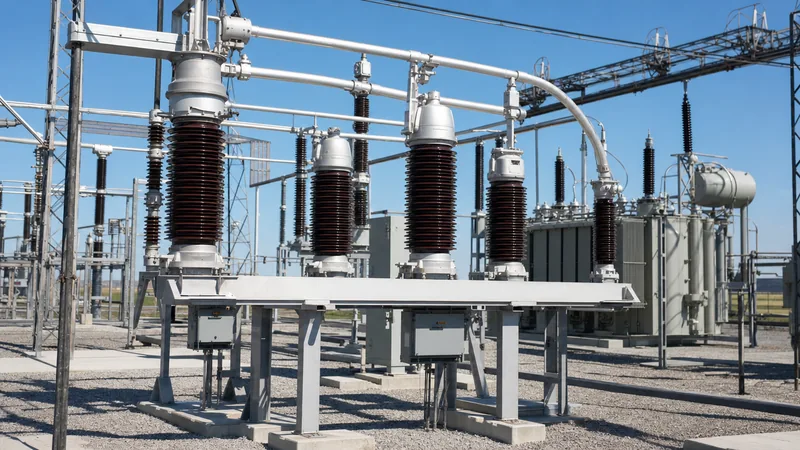

Quick answer: A substation breaker is a heavy-duty mechanical switching device capable of making, carrying, and interrupting electrical currents under normal circuit conditions and automatically interrupting abnormal short-circuit currents. It serves as the primary operational and protective barrier within electrical substations, preserving grid stability and isolating equipment within tens of milliseconds.

In electrical power infrastructure, selecting the correct substation breaker dictates both capital expenditure and operational reliability. Engineers must configure breakers to clear extreme fault currents without exceeding thermal, dielectric, or mechanical stress thresholds. A misapplication risks catastrophic tank rupture, contact welding, or failure to clear, resulting in wide-area blackouts and severe plant destruction. This technical guide outlines core interruption principles, standard ratings, practical sizing calculations, and factory-level inspection protocols across medium-voltage (MV) and high-voltage (HV) networks.

What Is the Function of a Circuit Breaker in Substation Systems?

The primary function of a circuit breaker in substation networks is to interrupt fault currents instantly upon receiving a trip command from protection relays while safely conducting continuous load currents during normal operations. Unlike disconnectors or load break switches, which lack the ability to break short-circuit energy, the circuit breaker in substation schemes extinguishes electric arcs generated across separating contacts under thousands of amperes of inductive stress.

Substation breakers operate in direct coordination with current transformers, voltage transformers, and intelligent electronic devices (IEDs) deployed within the protection zone. As detailed in our guide to substation protection engineering, the breaker serves as the final mechanical actuator in clearance sequences. Key functional roles include:

• Fault Interruption: Rapid clearing of phase-to-phase, three-phase symmetrical, and phase-to-ground faults to prevent thermal damage to power transformers and underground cables.
• Network Reconfiguration: Energising or de-energising transmission lines, busbar ties, and distribution feeders during maintenance or operational switching.
• Capacitive and Inductive Switching: Breaking charging currents of unloaded overhead lines, underground cables, and filter banks without sustaining destructive dielectric restrikes.
• Auto-Reclosing Duties: Clearing transient faults on overhead distribution systems by executing an Open-Close-Open duty cycle before locking out on permanent faults.

Substation Breaker Arc Quenching Technologies: Vacuum vs SF6

Modern utility and industrial networks select between vacuum and sulphur hexafluoride (SF6) arc-extinguishing media depending on system voltage, switching frequency, and environmental footprint. The mechanical separation of contacts in a high-energy circuit creates a plasma channel composed of ionised metal vapour or gas molecules that conducts current until the natural alternating current zero.

For medium-voltage distributions between 3.3 kV and 40.5 kV, vacuum interrupters represent the global industry standard. Within a vacuum bottle evacuated to less than 10^-5 Pa, the metallic arc vaporises contact material that rapidly condenses back onto metal shields at current zero, providing exceptional dielectric recovery speeds. Readers can review detailed contact designs in our vacuum circuit breaker guide. Conversely, high-voltage substations operating from 72.5 kV up to 800 kV rely primarily on SF6 puffer technologies due to the superior dielectric strength and thermal heat transfer properties of electronegative SF6 gas, as examined in our review of SF6 gas in electrical switchgear.

Substation Breaker Ratings and Sizing Calculations

Specifying a substation breaker requires verifying that its assigned ratings exceed the worst-case continuous, transient, and short-circuit parameters defined by power system studies. Key ratings are standardised internationally under IEC 62271-100 and IEEE C37.04.

To evaluate breaking capacity, engineers calculate the three-phase symmetrical fault level ($I_{sc}$), the peak making current ($I_{peak}$), and the direct current (DC) component percentage at contact separation. Consider a 33 kV, 50 Hz substation busbar fed by a 40 MVA transformer with an impedance voltage ($u_k$) of 12.5% connected to an upstream grid with a 1,000 MVA fault level.

1. Calculate Grid Impedance ($X_{grid}$):
   $$X_{grid} = \frac{V_{rated}^2}{S_{sc,grid}} = \frac{(33\text{ kV})^2}{1000\text{ MVA}} = 1.089\ \Omega$$
2. Calculate Transformer Impedance ($X_{tx}$):
   $$X_{tx} = \frac{u_k}{100} \times \frac{V_{rated}^2}{S_{rated}} = 0.125 \times \frac{(33\text{ kV})^2}{40\text{ MVA}} = 3.403\ \Omega$$
3. Total Fault Impedance ($X_{total}$):
   Assuming purely inductive reactance for conservative clearing: $$X_{total} = X_{grid} + X_{tx} = 1.089 + 3.403 = 4.492\ \Omega$$
4. Rated Symmetrical Short-Circuit Breaking Current ($I_{sc}$):
   $$I_{sc} = \frac{V_{rated}}{\sqrt{3} \times X_{total}} = \frac{33,000\text{ V}}{1.732 \times 4.492\ \Omega} = 4,242\text{ A} \approx 4.24\text{ kA}$$
5. Rated Peak Making Current ($I_{peak}$):
   Per IEC 62271-100 clause 5.101, for a standard system time constant of 45 ms at 50 Hz, the peak making factor is 2.5:
   $$I_{peak} = 2.5 \times I_{sc} = 2.5 \times 4.24\text{ kA} = 10.6\text{ kA}_{peak}$$

In practice, standard commercial switchgear ratings dictate selecting the next standard frame size, which is a 36 kV, 25 kA (or 31.5 kA) rated breaker with an assigned making capacity of 63 kA (or 82.5 kA peak), leaving adequate margin for future substation expansions.

Operating Mechanisms and Standard Duty Cycles

A substation breaker mechanism provides the stored physical energy required to drive heavy electrical contacts across their travel stroke within 30 to 60 milliseconds. The mechanism must possess sufficient mechanical force to overcome dynamic electromagnetic repulsion forces during high-current fault making.

Three primary mechanism architectures are utilised across utility networks:

• Spring-Charged Mechanisms: Employs an electric motor to compress or tension heavy helical springs. Closing the breaker discharges the closing spring, which simultaneously tensions the opening spring. This architecture dominates medium-voltage and sub-transmission circuit breakers due to its mechanical simplicity and proven field reliability.
• Hydraulic / Hydro-Mechanical Mechanisms: Utilises nitrogen accumulators and hydraulic fluid pumps to exert extremely high forces required for high-voltage SF6 interrupters rated at 245 kV and above.
• Magnetic Actuators: Replaces mechanical linkages and latches with permanent magnets and electromagnetic coils driving a single moving armature, paired with energy storage capacitor banks. Widely adopted in modern medium-voltage distribution switchgear.

Under IEC 62271-100 clause 4.104, standard auto-reclosing duty cycles dictate mechanism spring charging rates. The most common sequence is: O - 0.3s - CO - 3min - CO. Here, the breaker opens (O) upon fault detection, recloses after a 0.3-second dead-time to check for cleared transient line faults, trips immediately (CO) if the fault persists, and recharges its mechanism energy reserves within 3 minutes before permitting a final Close-Open (CO) operation.

Substation Breaker Commissioning and Field Testing Checklist

Field commissioning tests verify that transport shock, mechanical misalignments, and installation stresses have not degraded breaker insulation or mechanical linkage synchronism. Site testing must be conducted before energisation in accordance with IEEE C37.09 and IEC 62271-100 procedures, aligned with broad substation testing guide practices.

1. Contact Resistance Measurement: Inject a minimum of 100 A DC across each primary phase pole using a micro-ohmmeter. Contact resistance must typically remain below 40 to 60 µΩ depending on rated continuous current. Elevated readings indicate contact oxidation, pitting, or loose terminal torques.
2. Mechanical Timing and Contact Synchronism: Measure opening time, closing time, and contact pole discrepancy. In a three-phase breaker, the maximum allowable non-simultaneity between the earliest and latest pole closing should not exceed 2 to 3 ms to prevent dangerous transient overvoltages.
3. Insulation Resistance and Dielectric Withstand: Apply high-voltage DC (typically 2.5 kV or 5 kV) between phases, across open contacts, and to earth. Perform power-frequency AC withstand tests (Hi-Pot) across the vacuum or gas gap to verify dielectric integrity.
4. SF6 Gas Quality and Moisture Check (for gas-insulated units): Verify that gas purity exceeds 97% and moisture levels remain below 150 ppmv at rated operational pressure.
5. Minimum Operating Voltage Verification: Confirm that the close and trip coils actuate reliably at minimum auxiliary supply voltages (typically 70% to 85% of rated DC supply for trip coils per IEC standards).

Next steps: specifying and sourcing

Specifying a reliable substation breaker requires supplying your engineering single-line diagrams, short-circuit study results (including symmetrical breaking current, system X/R ratio, and DC component), duty cycle requirements, and environmental ambient parameters. Whether configuring standalone outdoor live-tank breakers or integrated assemblies within complete HV/LV switchgear or modular prefabricated transformer substations, our engineering factory team designs and manufactures type-tested switchgear conforming rigorously to IEC 62271 and IEEE C37 standards. Contact our technical department or request an engineering proposal directly via our substation quote portal.
