480 Arc Flash Mitigation: Incident Energy Calculations & Specs

Quick answer: A 480 arc flash generates high incident energy—frequently exceeding 40 cal/cm²—because low-voltage distribution transformers supply immense prospective short-circuit currents while upstream circuit breakers often operate with intentional time delays. Mitigating this hazard requires accurate IEEE 1584-2018 calculations, rapid fault clearing via optical sensors or maintenance switches, and switchgear engineered to contain internal arcing.

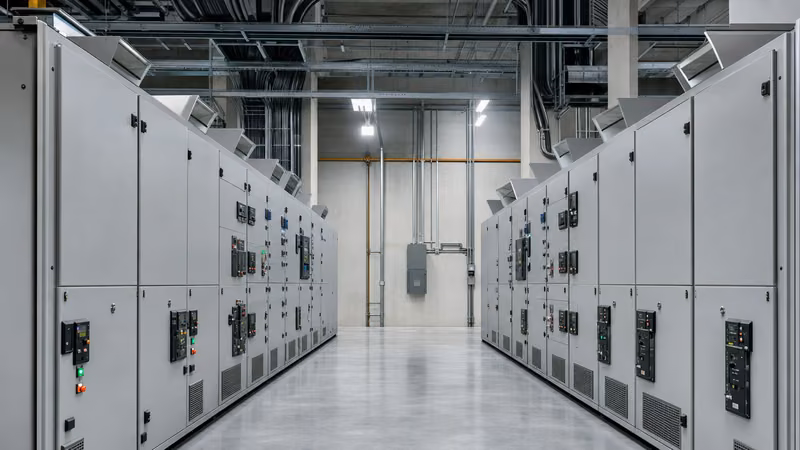

In industrial facilities, operating personnel routinely treat 480 V systems with less caution than 11 kV or 33 kV installations. However, field data demonstrates that catastrophic arc flashes occur far more frequently in low-voltage motor control centres (MCCs), switchboards, and distribution panels. To understand the physics and systemic risks behind electrical explosions, read our guide on what is arc flash. Managing the 480 arc flash hazard requires combining precise protection coordination, rigorous adherence to international safety codes, and modern switchgear architecture.

Why 480 Arc Flash Incident Energy Exceeds Medium Voltage Systems

A 480 arc flash often yields far higher incident energy than a medium-voltage fault because low-voltage circuits sustain severe arcing currents without triggering instantaneous magnetic trips. In medium-voltage substations, fast differential and instantaneous overcurrent relays clear faults within 50 to 100 milliseconds. Conversely, on a 480 V bus fed by a standard 1,500 kVA or 2,500 kVA distribution transformer, fault impedance is low, yielding bolted fault currents between 30 kA and 65 kA.

When an arcing fault initiates, the arc itself introduces an impedance that depresses the current below the bolted three-phase value. On 480 V networks, this arcing fault current ($I_{arc}$) can drop to 40% to 60% of the prospective short-circuit current. Consequently, the upstream moulded-case circuit breaker (MCCB) or low-voltage power circuit breaker (LVPCB) fails to detect an instantaneous fault. The breaker defaults to its short-time delay (typically 0.1 to 0.5 seconds) or its long-time inverse thermal characteristic (clearing in 1.0 to 2.0 seconds). Because incident energy ($E_i$) scales linearly with time ($t$), an arcing event sustained for one second releases catastrophic thermal energy capable of vaporising copper busbars and exceeding the 40 cal/cm² threshold where standard personal protective equipment (PPE) fails.

480 Arc Flash Calculations: A Worked Transformer Example

Calculating the incident energy of an arc flash 480v system requires applying IEEE 1584-2018 equations using the lower arcing current variation to capture worst-case clearing times. The following worked engineering example illustrates the parameters for a standard step-down substation delivering power to an industrial motor control centre.

Consider an oil-filled transformer rated at 1,500 kVA, 13.8 kV to 480 V (phase-to-phase), three-phase, 60 Hz, with an impedance voltage of 5.75% ($Z\% = 5.75$). The primary medium-voltage utility supply is assumed to have an infinite bus capacity for conservative screening.

1. Calculate transformer full-load current ($I_{FLA}$):
   $$I_{FLA} = \frac{S}{\sqrt{3} \times V_{LL}} = \frac{1500}{\sqrt{3} \times 0.48} = 1804.2\text{ A}$$
2. Calculate bolted three-phase fault current ($I_{bf}$):
   $$I_{bf} = \frac{I_{FLA}}{Z_{pu}} = \frac{1804.2}{0.0575} = 31,377\text{ A} = 31.38\text{ kA}$$
3. Estimate arcing current ($I_{arc}$) using IEEE 1584-2018:
   For a 480 V switchboard with vertical busbars terminated in an insulating barrier (VCBB configuration) and an electrode gap of 32 mm, empirical models show an arcing current factor of approximately 0.62. Thus, $I_{arc} = 31.38\text{ kA} \times 0.62 = 19.46\text{ kA}$.
4. Determine clearing time ($t$) from breaker time-current curves (TCC):
   If the main secondary breaker relies on a short-time delay set at 0.35 seconds plus a 0.05-second mechanical parting time, the total clearing time is $t = 0.40\text{ s}$.
5. Compute incident energy ($E_i$) at working distance:
   At a standard low-voltage working distance of 457 mm (18 inches), the resulting thermal exposure is:
   $$E_i \approx 18.6\text{ cal/cm}^2$$
   The arc flash boundary ($D_{AFB}$), defined as the distance where incident energy falls to 1.2 cal/cm², extends past 2.1 metres.

If the upstream breaker fails to clear in short time and shifts to an inverse-time curve clearing at 1.1 seconds, the incident energy spikes to $51.2\text{ cal/cm}^2$, creating an unworkable condition under NFPA 70E guidelines.

480V Incident Energy and Boundary Comparison Table

Low-voltage equipment configurations exhibit widely varying arcing dynamics based on enclosure dimensions, bus orientation, and protective settings. The table below compares typical calculated parameters across standard 480 V industrial gear designed under IEC 61439 low-voltage switchgear and North American IEEE standards.

These values highlight that bus orientation and enclosure confinement dramatically influence energy concentration. Horizontal conductors (HCB) direct the plasma jet outwards toward the technician, raising energy densities significantly compared to open-air arrangements.

Engineering Mitigation Strategies for 480 Arc Flash Risk

Mitigating an arc flash 480v risk requires engineering controls that lower arcing duration, redirect blast energy, or eliminate personnel exposure entirely. Passive and active mitigation strategies should be embedded directly into switchgear procurement specifications rather than relying strictly on administrative PPE protocols.

Key protection schemes detailed in our analysis of substation protection schemes provide reliable fault suppression:

• Arc Energy Reduction Maintenance Switch (ARMS): Mandated by NEC 240.87 for breakers rated 1,200 A or higher, an ARMS switch temporarily eliminates intentional short-time delays. When engaged by a technician prior to racking or servicing, clearing time drops below 50 milliseconds, reducing incident energy from over 30 cal/cm² to below 4 cal/cm².
• Zone Selective Interlocking (ZSI): Hardwired communication between downstream feeder breakers and the upstream main breaker ensures that if a fault occurs directly on the 480 V main bus, the main breaker trips instantaneously without waiting for coordination delays.
• Optical Detection Systems: Combining point or loop fibre-optic light sensors with high-speed overcurrent elements (IEC 60255 compliant), optical arc relays issue a trip command in 1 to 3 milliseconds, bringing total clearing times down to 35 to 50 milliseconds when matched with modern stored-energy circuit breakers.
• Internal Arc Classification: Specifying low-voltage switchgear verified to IEC TR 61641 (criteria 1 through 7) or IEEE C37.20.7 Type 2B ensures that the structural enclosure, pressure-relief vents, and internal barriers contain blast pressures and direct toxic thermal gases into safe exhaust pathways.

Specifying Low-Arc 480V Switchgear: RFQ Engineering Checklist

When preparing a Request for Quotation (RFQ) for low-voltage power distribution equipment, engineers must explicitly define thermal, structural, and protection parameters to prevent under-specified assemblies. Incorporate the following technical requirements into equipment schedules:

• Short-Circuit Withstand and Fault Rating: Define the busbar 1-second symmetrical root-mean-square (RMS) short-time withstand current ($I_{cw}$) matching the transformer secondary capacity (e.g., 50 kA or 65 kA at 480 V per IEC 61439-2 clause 9.3).
• Internal Arc Withstand Verification: Require type-test certification to IEC TR 61641 for 0.3 seconds or IEEE C37.20.7 arc-resistant construction, specifying accessibility Type 2B (protection on front, sides, and rear with control compartments open).
• Protection Trip Units: Specify electronic trip units equipped with integrated maintenance mode inputs, Modbus or IEC 61850 communications, and ZSI capability across all main, tie, and feeder breakers.
• Compartmentalisation: Require Form 4b (IEC 61439) or metal-enclosed compartmentalised construction (UL 1558 / IEEE C37.20.1) separating busbars, cable terminations, and switching devices with non-hygroscopic insulating barriers.
• Remote Racking and Control: Include closed-door motorized racking mechanisms for drawout air circuit breakers (ACBs) to ensure operators remain outside the 480 arc flash boundary during racking operations.

Next steps: specifying and sourcing

To protect your operations and personnel from low-voltage electrical hazards, specify distribution equipment engineered to active containment and rapid-clearing standards. When requesting a quotation, supply your single-line diagram, transformer kVA ratings, primary utility fault contribution, preferred protection relays, and enclosure ingress requirements. Our engineering team designs and manufactures certified low-voltage switchgear assemblies, complete compact transformer substations, and cast-resin dry-type transformers tailored to international EPC specifications. Submit your project requirements via our quotation inquiry page to receive a fully coordinated proposal.
