Custom Transformer Guide: Engineering Specs & Sourcing

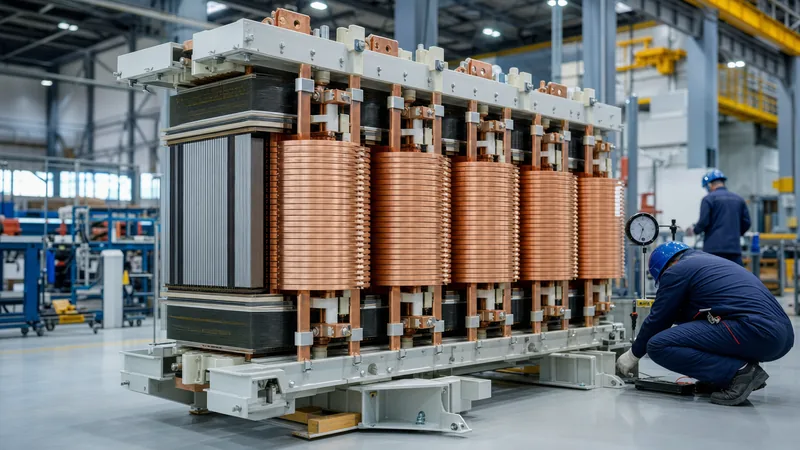

Quick answer: A custom transformer is a tailored electrical induction apparatus engineered to non-standard electrical, mechanical, or thermal specifications. Unlike catalogue distribution units, custom units solve unique constraints such as restricted physical dimensions, harmonic pollution, harsh operating environments, or multi-winding voltage matching for industrial, utility, and renewable energy installations.

Standard off-the-shelf distribution units conform to rigid catalogue dimensions and standard losses, but modern installations rarely feature standard conditions. Whether retrofitting an aging transformer inside a legacy vault with restrictive door clearances, matching fault levels across paralleled networks, or mitigating high harmonic currents from variable frequency drives, non-standard engineering is essential. Engaging a qualified custom power transformers manufacturer ensures that winding geometry, core metallurgy, dielectric insulation, and tank topology align precisely with site boundaries and grid interconnection standards.

When Standard Catalogue Units Fail: Drivers for a Custom Transformer

Standard catalogue units fail when site conditions, electrical constraints, or physical boundaries deviate from standard distribution parameters defined in standards like EN 50588-1 or IEEE C57.12.20. When engineering teams specify dry-type transformers or liquid-immersed units, several distinct operational challenges demand bespoke engineering solutions:

• Dimensional and Weight Footprints: Brownfield retrofits inside historic buildings, underground mining chambers, or offshore platforms often present structural headroom and doorway width limitations. A custom manufacturer can design a taller, narrower core-and-coil assembly or reposition high-voltage (HV) and low-voltage (LV) cable boxes to preserve cable bend radii without civil reconstruction.
• Severe Harmonic Profiles: Power electronic loads, multi-pulse rectifiers, and large solar inverters inject substantial harmonic currents into the secondary windings. Non-standard applications demand specific custom transformer design calculations, incorporating electrostatic copper shielding between windings and uprated neutral conductors (frequently 200% rated) to withstand eddy-current losses.
• Unusual Voltage and Tapping Ratios: Standard units provide fixed 2.5% off-circuit tap ranges. Bespoke applications often require dual primary voltages (e.g., 11 kV switchable to 22 kV for network transitions) or wide on-load tap changer (OLTC) ranges covering +/-15% in 1.25% increments.
• Extreme Ambient and Environmental Factors: Installation altitudes exceeding 1,000 metres above sea level require increased external clearance and derated cooling calculations per IEC 60076-2 clause 6.4 due to lower air density. High-corrosion coastal or offshore sites demand 316L stainless steel tanks and heavy-duty marine protective paint systems.

Engineering and Custom Transformer Design Calculations

Engineering a reliable custom transformer requires balancing electromagnetic flux density, thermal dissipation limits, and short-circuit mechanical strength. A primary consideration during bespoke design is calculating the required percentage impedance (%Z) to limit short-circuit currents on downstream switchgear while ensuring adequate terminal voltage regulation.

Consider an industrial facility specifying a custom 3-phase unit to feed a low-voltage switchboard rated for a maximum busbar withstand of 50 kA symmetrical fault current. If the custom rating is 2,500 kVA with a primary voltage of 11,000 V and a secondary voltage of 400 V (line-to-line), the base full-load current ($I_{FLC}$) on the secondary is calculated as:

$$I_{FLC} = \frac{S}{\sqrt{3} \times V_{LL}} = \frac{2,500,000}{\sqrt{3} \times 400} = 3,608.43\text{ A}$$

To prevent secondary fault currents ($I_{SC}$) from exceeding the switchboard busbar limit of 50,000 A (neglecting primary grid source impedance for conservative design), the minimum transformer impedance percentage is calculated by:

$$\%Z_{min} = \left(\frac{I_{FLC}}{I_{SC(max)}}\right) \times 100 = \left(\frac{3,608.43}{50,000}\right) \times 100 = 7.22\%$$

Standard catalogue units of this rating typically offer 6.0% or 6.5% impedance, which would generate over 55 kA of fault current, breaching the downstream switchgear capacity. A specialised custom industrial transformer manufacturer designs the physical spacing between the concentric HV and LV windings, along with core diameter, to yield an exact 7.25% impedance within the allowable manufacturing tolerances defined in IEC 60076-1 Table 1 (+/-10% for impedance values between 2.5% and 10%). This design avoids replacing the entire low-voltage distribution infrastructure.

Standard vs Custom Made Transformers: Technical Comparison

Choosing between standard catalogue units and custom made transformers requires evaluating engineering compromises against operational longevity. The following table contrasts standard production units with custom engineered solutions across critical performance criteria.

For modular integrations such as pad-mount packages, engineers can review our unit substation engineering guide to evaluate layout clearances and mechanical terminations before specifying tank dimensions.

Evaluating a Custom Transformer Manufacturer: Factory Capability Checklist

Selecting a capable custom transformer manufacturer demands strict auditing of engineering software, fabrication machinery, and quality control systems. Because custom units deviate from standard manufacturing runs, supplier competence determines long-term plant reliability.

1. Finite Element Method (FEM) Simulation: Verify that the engineering department utilises electromagnetic and thermal FEM software. FEM modelling predicts leakage flux concentrations, stray losses in structural clamping plates, and localized hot-spot temperatures in windings under non-linear harmonic conditions.
2. In-House Core Slitting and Winding Cleanliness: Inspect whether the factory shears its own grain-oriented electrical steel (such as high-permeability laser-treated grades) with step-lap mitred joints. For dry-type transformers, vacuum pressure impregnation (VPI) or vacuum casting autoclaves must be located in positive-pressure, dust-controlled environments.
3. Tank Fabrication and Structural Rigidity: Bespoke designs often subject tanks to non-standard internal pressure dynamics. Ensure the factory performs full vacuum and pressure-decay leak testing per IEC 60076-1 clause 11.8, certifying tank withstand under vacuum filling without plastic deformation.
4. Design Flexibility across Configurations: Confirm technical experience across both liquid-immersed topologies and dry-type units. For systems feeding critical industrial motor control or energy storage, review our 3-phase transformer guide for fundamental vector and earthing criteria.

Testing and Quality Assurance for Custom Power Transformers

Testing custom power transformers requires rigorous adherence to international standards to validate that non-standard performance parameters have been met. Because custom equipment operates under specialised electrical parameters, factory acceptance testing (FAT) extends beyond standard routine checks.

Routine tests per IEC 60076-1 clause 10 must establish baseline winding resistance across all taps, precise voltage ratio, vector group alignment, no-load losses, and load losses. However, for a custom transformer, special and type tests become critical:

• Temperature Rise Test (IEC 60076-2): Crucial for bespoke enclosures, reduced-footprint tanks, or units with custom ONAF (Oil Natural Air Forced) cooling configurations. Calibrated resistance methods measure bulk winding temperature rise to verify that insulation hot-spots remain well below thermal limits.
• Lightning Impulse Test (IEC 60076-3 clause 13): Full-wave and chopped-wave basic impulse insulation level (BIL) tests prove that custom winding clearances and layer insulation withstand transient network surges, particularly in renewable collector substations.
• Partial Discharge (PD) Measurement: Highly critical for dry-type and high-voltage custom designs. In accordance with IEC 60076-11, PD levels must remain below 10 pC at 1.3 times the rated line voltage to prevent progressive dielectric breakdown.
• Acoustic Sound Level Testing (IEC 60076-10): Urban or indoor installations require noise attenuation, mandating sound pressure testing to confirm that reduced core flux densities achieve target decibel levels.

For an exhaustive breakdown of field procedures and factory test circuits, refer to our technical manual on power transformer testing.

Comprehensive RFQ Checklist for Custom Made Transformers

Preparing a complete request for quotation (RFQ) prevents costly design revisions and ensures the factory accurately prices core steel, copper conductor weight, and insulation systems. Engineering procurement teams should extract and populate the technical parameters detailed in the checklist below.

Next steps: specifying and sourcing

When specifying a bespoke electrical transformer, early coordination between your design consultants and the equipment engineering team eliminates costly field modifications. Whether your project requires high-efficiency oil-immersed transformers for demanding utility networks or specialised dry-type transformers for confined commercial spaces, our technical team provides full electromagnetic simulations, mechanical dimensional drawings, and loss calculations tailored to your scheme. Submit your single-line diagram (SLD), mechanical layout constraints, and detailed technical specifications through our transformer quotation portal to receive a detailed engineering review and competitive manufacturing proposal.
