Single Phase Distribution Transformer: Engineering & Selection

Quick answer: A single phase distribution transformer is an electrical device that reduces medium-voltage utility distribution power (typically 2.4 kV to 34.5 kV) to lower, consumer-level single-phase voltages, such as 120/240 V split-phase or 230 V single-phase. It serves rural grids, residential estates, and municipal overhead infrastructure where three-phase density is uneconomical.

In electrical utility infrastructure, stepping down voltage near the final customer boundary is vital for suppressing line losses and safeguarding consumer assets. Whether deployed as an overhead canister on an aerial line or as a pad-mounted compartment adjacent to a residential feeder, selecting the right single phase distribution transformer requires precision. Network engineers must reconcile primary impulse insulation levels, load-loss capitalisation, impedance boundaries, and mounting hardware against strict international design standards.

What Is a Single Phase Distribution Transformer?

A single phase distribution transformer is an electromagnetic induction device designed to transfer alternating-current power between a single medium-voltage primary phase (or phase-to-phase pair) and a low-voltage service circuit. Unlike polyphase units that accommodate three interconnected phase windings, these units feature a single high-voltage winding and a low-voltage winding partitioned into two distinct coils around a laminated silicon steel or amorphous metal magnetic core.

Modern designs are built according to standards such as IEEE C57.12.00, IEEE C57.12.20, or IEC 60076-1. The secondary windings are normally configured for series or parallel arrangements. Connecting the two secondary coils in series with a central tap establishes a three-wire split-phase system providing 120 V line-to-neutral and 240 V line-to-line. Connecting them in parallel supplies the full nominal capacity at a single voltage (120 V or 230 V). Cooling is usually classified as Liquid Natural Air Natural (ONAN), utilising inhibited mineral oil per IEC 60296 or synthetic/natural esters per IEEE C57.147 to dissipate heat from the core and winding assembly to the cylindrical tank walls.

Single Phase Pole Mounted Distribution Transformer Configurations

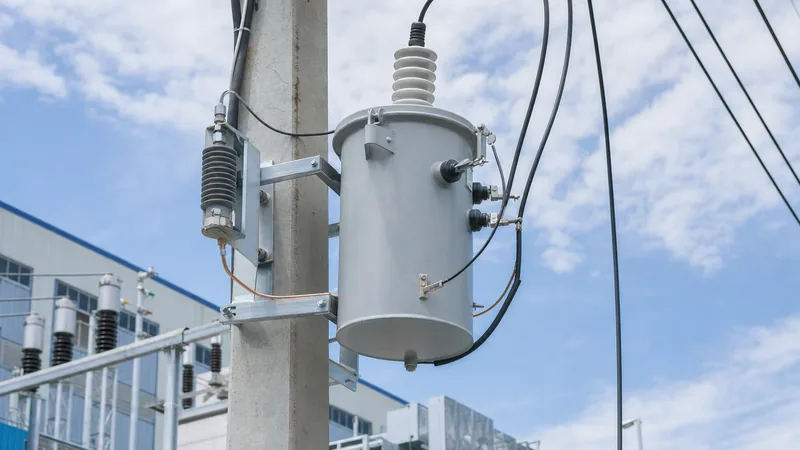

A single phase pole mounted distribution transformer—widely nicknamed a bucket transformer by linesmen due to its cylindrical canister design—is engineered specifically for aerial installation on timber, concrete, or steel utility poles. These units are configured either as conventional transformers or Completely Self-Protected (CSP) designs.

Conventional overhead units require external medium-voltage protection. They connect to the primary line through a separate fused cutout switch and an adjacent lightning arrester mounted on the crossarm. In contrast, a CSP single phase distribution transformer integrates protection directly into the sealed vessel:

• Internal Weak-Link Fuse: Positioned in series with the primary winding beneath the oil level to clear internal insulation breakdowns without triggering upstream reclosers.
• Secondary Circuit Breaker: Submerged in the dielectric liquid, sensing secondary current and fluid temperature to protect the windings against prolonged consumer overloads and external low-voltage short circuits.
• Direct-Mounted Surge Arresters: Fixed directly to the external tank wall and connected to the primary bushings, providing minimal lead lengths to clamp high-voltage lightning surges per IEEE C57.111.

For utilities designing overhead networks, reviewing the structural parameters outlined in our telephone pole transformer guide ensures that mechanical cantilever loads and wind-shear ratings of the pole assembly are never exceeded.

Canister vs Padmount: Key Technical Comparison

Selecting between an overhead canister and a ground-level padmount depends primarily on whether distribution lines are routed via overhead lines or underground residential distribution (URD) cables. Both utilise identical electromagnetic principles, but their mechanical enclosures, safety barriers, and cabling terminations diverge significantly.

When selecting units for underground developments, the primary feed configuration plays a decisive role. As detailed in our guide on radial feed vs loop feed, loop-feed padmounts allow sectionalising switches to isolate faulty cable runs without disrupting downstream loads, an option rarely applied to overhead bucket transformers.

Electrical Sizing and Loss Calculation

Calculating the correct rating for a single phase distribution transformer avoids both premature thermal degradation and unnecessary capital expenditure on oversized no-load core losses. Below is a practical worked calculation for a standard 50 kVA residential installation.

Worked Example Parameters:

• Rated Apparent Power ($S$): 50 kVA
• Primary Voltage ($V_1$): 7,200 V (phase-to-ground on a 12,470Y/7,200 V system)
• Secondary Voltage ($V_2$): 120/240 V split-phase (3-wire)
• Frequency ($f$): 60 Hz
• Impedance (%Z): 2.2% ($0.022 ext{ per-unit}$)
• No-Load Loss ($P_0$): 90 W (core hysteresis and eddy currents)
• Full-Load Loss ($P_k$): 580 W at 85 °C reference temperature

Step 1: Calculate Rated Primary and Secondary Currents

Primary Full-Load Current ($I_1$):
$$I_1 = \frac{S}{V_1} = \frac{50,000\text{ VA}}{7,200\text{ V}} = 6.94\text{ A}$$

Secondary Full-Load Current at 240 V ($I_2$):
$$I_2 = \frac{S}{V_2} = \frac{50,000\text{ VA}}{240\text{ V}} = 208.33\text{ A}$$

Step 2: Determine Maximum Low-Voltage Fault Current

Assuming an infinite primary bus, the prospective symmetrical short-circuit current ($I_{SC}$) on the secondary terminals is governed strictly by the unit's internal impedance:

$$I_{SC} = \frac{I_2}{\%Z} = \frac{208.33\text{ A}}{0.022} = 9,470\text{ A} \approx 9.47\text{ kA}$$

Downstream low-voltage panels and circuit protective devices must therefore feature an ultimate breaking capacity of at least 10 kA to clear dead shorts safely.

Step 3: Operating Efficiency at 60% Loading (0.95 Power Factor)

At 60% load ($m = 0.60$), load loss scales quadratically:
$$P_{k(60\%)} = m^2 \times P_k = (0.60)^2 \times 580\text{ W} = 0.36 \times 580\text{ W} = 208.8\text{ W}$$

Total Losses ($P_{total}$):
$$P_{total} = P_0 + P_{k(60\%)} = 90\text{ W} + 208.8\text{ W} = 298.8\text{ W} = 0.2988\text{ kW}$$

Output Active Power ($P_{out}$):
$$P_{out} = S \times m \times \cos\phi = 50\text{ kVA} \times 0.60 \times 0.95 = 28.5\text{ kW}$$

Efficiency ($\eta$):
$$\eta = \frac{P_{out}}{P_{out} + P_{total}} = \frac{28.5}{28.5 + 0.2988} = \frac{28.5}{28.7988} = 98.96\%$$

For further load curves and duty-cycle optimisation, refer to our comprehensive transformer sizing calculator guide.

Specification and Factory Inspection Checklist

A comprehensive procurement specification ensures that the single phase distribution transformer withstands environmental stress, lightning impulses, and cyclic loading over several decades. When issuing a Request for Quotation (RFQ) or executing Factory Acceptance Testing (FAT), use the following technical checklist.

1. Standards Baseline: Verify full compliance with IEEE C57.12.20 or IEC 60076-1. Ensure dielectric tests match the system BIL per power distribution voltages tables (e.g., 95 kV BIL for a 15 kV class primary).
2. Tank and Coating Integrity: Require hot-rolled or stainless steel (304L or 316L for coastal environments) tested to ASTM B117 for 1,000 to 3,000 hours of continuous salt spray exposure. Finish coating thickness must meet or exceed 75 microns (3 mils).
3. Fluid and Environmental Parameters: Specify PCB-free mineral oil tested according to ASTM D877 (minimum breakdown voltage of 30 kV) or high-fire-point ester liquid (K-class fluid per IEC 61039) for wildland-urban interfaces.
4. Loss Evaluation Factors: Declare commercial evaluation figures ($A-factor for core losses in $/W, $B-factor for load losses in $/W) in the tender to avoid suppliers bidding inefficient silicon steel cores.
5. Pressure Relief System: Check for a resealing mechanical pressure relief valve operating at 35 to 50 kPa (5 to 7 psig), equipped with a visual indicator to reveal internal overpressurisation without tank rupture.
6. Factory Routine Tests: Mandate factory reports covering winding resistance, voltage ratio, phase displacement, no-load loss, excitation current, impedance voltage, load loss, applied voltage, and induced overvoltage testing per IEEE C57.12.90.

Next steps: specifying and sourcing

To obtain an accurate, project-specific proposal for a single phase distribution transformer, compile your primary distribution voltage, required secondary voltage (split-phase or two-wire), kVA capacity, and target loss capitalisation rates. Specify the deployment style—such as overhead pole-mount bucket units or pad-mounted enclosures—alongside any coastal corrosion requirements. Explore our engineered pole-mounted transformers, heavy-duty pad-mounted transformers, and comprehensive compact transformer substations. Contact our application engineering team directly through our transformer quotation portal to submit your single-line diagrams and tender specifications.
