Key takeaways
- A station service voltage transformer (SSVT) combines high-voltage potential measurement with high-capacity auxiliary power delivery directly from transmission lines up to 765 kV.
- Using an SSVT substation layout eliminates the need to build third-party medium-voltage distribution lines or tap tertiary windings on primary power transformers.
- SSVT power ratings commonly range from 25 kVA to 333 kVA per single-phase unit, providing up to 1 MVA in three-phase configurations with thermal capacities governed by IEEE C57.13 and IEC 61869-3.
- Core sizing for substation auxiliary power must incorporate continuous loads, battery bank recharge current, and intermittent motor-starting demands for disconnect switches and circuit breakers.
- Effective ferroresonance mitigation and dedicated secondary protection coordination are vital to prevent thermal damage to the SSVT primary windings during system line switching.
Quick answer: An SSVT substation uses a station service voltage transformer connected directly to high-voltage transmission busbars to provide low-voltage station power alongside instrumentation-grade voltage monitoring. This architecture eliminates dependency on local distribution feeders while delivering 25 kVA to 1,000 kVA of auxiliary power with primary ratings up to 765 kV.
High-voltage transmission and switching substations frequently sit in remote areas devoid of dependable local medium-voltage utility feeds. Establishing dedicated auxiliary power feeds across long distances incurs high capital expenditure and exposes the site to external line faults. An ssvt substation resolves this vulnerability by tapping the incoming transmission line directly, transforming transmission voltages down to standard auxiliary utility voltages such as 120/240 V single-phase or 480 V three-phase.
By unifying station service duties with voltage metering in a single physical column, design engineers minimise civil yard footprints and simplify layout complexities outlined in our electric substation engineering guide. Understanding the operational limits, sizing methodologies, and protection schemes of these units ensures uninterrupted power to protection relays, motor mechanisms, cooling equipment, and station battery systems.

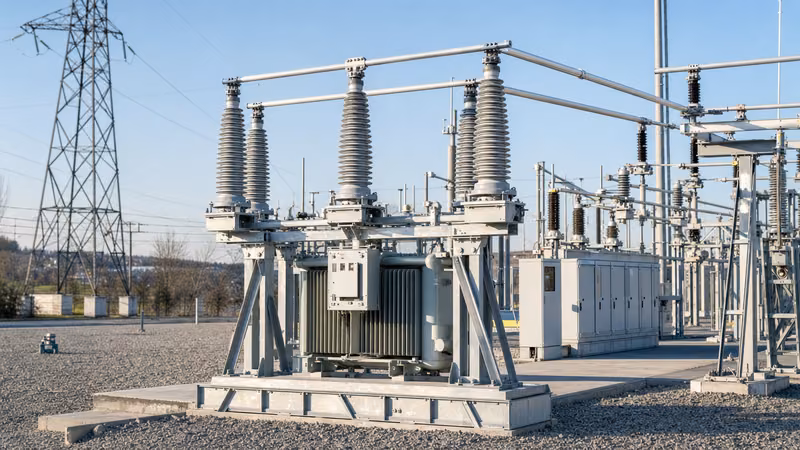

What Is a Station Service Voltage Transformer?
A station service voltage transformer (SSVT) is a hybrid electromagnetic apparatus designed to step down extra-high or transmission-level voltages directly to low utilisation voltages while providing the thermal power output of a distribution transformer.
Conventional capacitive voltage transformers (CVTs) and standard inductive voltage transformers (VTs) supply signal-level power, typically rated between 100 VA and 1,000 VA according to IEC 61869-3 clause 6, intended purely for metering instruments and protective relays. When auxiliary loads exceed these thresholds, standard VTs saturate thermally and fail. Conversely, an SSVT features a heavy magnetic core and power-rated windings capable of continuous power outputs ranging from 25 kVA to 333 kVA per single-phase column, and up to 1,000 kVA in a three-phase bank.
Inside the hermetically sealed, oil-immersed or SF6-insulated tank, an SSVT integrates high dielectric insulation with low secondary impedance. Dual secondary windings are standard: one winding dedicated to revenue metering or high-accuracy relaying (accuracy class 0.2 or 0.3 per IEEE C57.13), and a separate, low-impedance power winding configured to feed auxiliary panels in the substation control house.
SSVT Substation Design vs Conventional Auxiliary Power
Choosing the correct auxiliary power source in an ssvt substation depends on transmission voltage, site remoteness, and reliability criteria.
Historically, substation engineers secured low-voltage station power through one of three routes: tapping the delta tertiary winding of a large autotransformer, installing an extended medium-voltage distribution feeder from a local utility, or building dedicated diesel generators. Each alternative introduces specific technical tradeoffs regarding availability, fault risk, and civil installation expenses.
The following table contrasts the functional characteristics of an SSVT against traditional auxiliary supply methods:
| Evaluation Metric | SSVT Direct Tap | Main Transformer Tertiary Tap | External Utility MV Feeder |
|---|---|---|---|
| Primary Voltage Capability | 69 kV to 765 kV | Limited to main unit rating | Typically 11 kV to 34.5 kV |
| Auxiliary Power Availability | Independent of main transformer status | Zero when main transformer is offline | Vulnerable to off-site rural line trips |
| Civil Footprint in Yard | Minimal (instrument post footprint) | Zero external yard space | Requires external incoming poleline/pad |
| Short-Circuit Risk | Self-limiting impedance (typically 8–12%) | High fault energy transfer from primary | Limited by utility source impedance |
| Capital Cost at Remote Sites | Moderate, highly cost-effective | Low initial; high risk if tertiary faults | Prohibitive over long distances (>5 km) |
| Metering Capability | Integrated class 0.2 / 0.3 windings | Requires separate external VTs | Requires external metering cabinets |
As demonstrated, an ssvt substation design decouples auxiliary site power from the operational state of the primary power transformer, providing black-start and station-commissioning capability whenever the overhead transmission bus is energised.
Core Engineering Ratings and Technical Specifications
Specifying an SSVT requires precise alignment between line transmission ratings, mechanical cantilever limits, and thermal output requirements.
Because the device mounts directly in the switchyard alongside disconnectors and instrument transformers, it must withstand systemic transient stresses. High Basic Impulse Insulation Levels (BIL) are mandatory; for example, a 138 kV system typically requires a 650 kV BIL, while a 230 kV installation demands 900 kV or 1,050 kV BIL under IEEE C57.12.00 Table 5. The primary terminal must accommodate thermal expansion and static conductor pull from overhead tubular bus or stranded conductors.
Critical performance parameters governed by IEC and IEEE standards include:
- Thermal Burden Capacity: Continuous thermal output commonly rated at 50 kVA, 100 kVA, or 167 kVA for single-phase units. Maximum winding temperature rise must not exceed 55°C or 65°C over a 40°C ambient baseline.
- Impedance Voltage (%Z): Typically designed between 7% and 12% on the power winding base. Elevated impedance limits prospective fault currents on downstream low-voltage switchgear boards without requiring external current-limiting reactors.
- Accuracy Performance: Secondary metering taps must maintain accuracy standards (e.g., class 0.2S or 0.5 per IEC 61869-2/3) across operational power fluctuations on the power tap.
- Insulation Media: Mineral oil with nitrogen gas cushion, or high-dielectric gas insulation housed within high-grade porcelain or silicone composite polymer insulators for harsh environmental pollution zones.
Auxiliary Load Sizing Calculation for Station Service Duty
A worked auxiliary load calculation prevents undersizing the station service transformer windings while avoiding unnecessary core loss overheads.
Auxiliary loads within a high-voltage substation comprise continuous baseload demands, cyclic environmental systems, and short-duration intermittent motor operations. In this worked sizing calculation, we evaluate a 230 kV switching substation requiring a dedicated 120/240 V single-phase auxiliary supply fed from a single SSVT unit.
Step 1: Tally the continuous and cyclic loads
- Relay and control protection panels: 4.5 kW continuous
- SCADA, telecommunications, and security electronics: 2.2 kW continuous
- Control house HVAC continuous running baseline: 6.5 kW (seasonal peak)
- Transformer cooling fans and oil pumps (manual or auto run): 8.0 kW
- Substation yard and perimeter LED lighting: 3.0 kW (night-time peak)
Total continuous real power: $P_{\text{cont}} = 4.5 + 2.2 + 6.5 + 8.0 + 3.0 = 24.2\text{ kW}$. Applying an average operational power factor (PF) of 0.88 yields an apparent continuous power requirement:
$$S_{\text{cont}} = \frac{24.2\text{ kW}}{0.88} = 27.5\text{ kVA}$$
Step 2: Add battery charging boost requirements
Following an AC outage, the station battery charger enters equalize/boost mode to recharge the 125 V DC battery bank within 12 hours. Charger input draw is rated at 9.5 kVA at 0.85 PF:
$$S_{\text{battery}} = 9.5\text{ kVA}$$
Step 3: Factor intermittent transient demands
Spring-charging motors for high-voltage circuit breakers and motor-operated disconnects (MODs) operate sporadically. Simultaneous operation of two breaker motors contributes 4.0 kVA for 5 to 10 seconds. We apply a demand diversity factor of 0.60 to non-continuous motor starting loads ($4.0 \times 0.60 = 2.4\text{ kVA}$).
Step 4: Establish minimum nameplate rating with expansion margin
Total design demand is the sum of operational components:
$$S_{\text{design}} = S_{\text{cont}} + S_{\text{battery}} + S_{\text{motor}} = 27.5 + 9.5 + 2.4 = 39.4\text{ kVA}$$
Applying a standard 25% future growth margin:
$$S_{\text{minimum}} = 39.4\text{ kVA} \times 1.25 = 49.25\text{ kVA}$$
Conclusion: A standard 50 kVA single-phase station service voltage transformer satisfies the baseline load profile. However, if yard expansion entails additional high-voltage circuit breakers, selecting the next commercial standard size of 100 kVA provides sufficient headroom and keeps operating temperatures low, prolonging insulation life.
Installation, Grounding, and Protection Schemes
Integrating an SSVT into an ssvt substation configuration necessitates strict protective coordination to isolate low-voltage faults and prevent destructive ferroresonance.
Because SSVTs connect directly to transmission busbars without dedicated circuit breakers due to bay cost constraints, protection engineers apply high-voltage power fuses or rely on bus-differential protection tripping. Secondary circuits must deploy coordinated low-voltage circuit breakers inside an external outdoor distribution cabinet located adjacent to the SSVT support structure. Downstream integration with substation protection schemes prevents a low-voltage busbar fault from escalating into a line trip.
Key installation principles include:
- Earthing: The grounded neutral terminal of the primary winding must connect directly to the copper substation ground grid using appropriately sized bare copper conductor (minimum 95 mm² or 4/0 AWG) to dissipate lightning discharge and fault currents safely.
- Ferroresonance Mitigation: Due to interaction between the saturable magnetising inductance of the SSVT core and the capacitance of transmission lines or open disconnect switches, ferroresonance can occur. Damping circuits consisting of a loading resistor installed across a broken-delta secondary winding neutralize harmonic overvoltages.
- Secondary Cable Segregation: Power secondary circuits (carrying load current up to several hundred amperes) must run in shielded cables separate from low-level instrumentation cables to prevent electromagnetic interference from distorting metering accuracy.
Commissioning and Pre-Energisation Field Procedures
Pre-energisation testing validates insulation integrity, winding turns ratio, and secondary phase orientation before the SSVT connects to high-voltage busbars.
Adhering to rigorous field commissioning routines aligns with protocols defined in our substation testing guide. Engineers must execute the following sequential commissioning tasks:
- Insulation Resistance and Polarisation Index: Measure insulation resistance between primary-to-ground, primary-to-secondary, and secondary-to-ground using a 5 kV DC insulation test set. Minimum values must exceed 5,000 MΩ, with a 10-minute/1-minute Polarisation Index (PI) greater than 2.0.
- Dielectric Dissipation Factor (Tan Delta): Conduct capacitance and dissipation factor tests on the internal insulation system at 10 kV. The dissipation factor must remain below 0.5% at 20°C for modern oil-paper systems.
- Turns Ratio and Polarity Verification: Verify voltage transformation ratios on both the power winding tap and the metering winding tap across all nominal voltage settings using a precision three-phase turns ratio tester. Confirm additive or subtractive polarity markings against the engineering nameplate.
- Winding Resistance Measurement: Measure DC winding resistance across all taps using a digital low-resistance ohmmeter (DLRO). Compare measurements against factory test reports; field values must deviate by less than 2% after temperature correction.
- Secondary Circuit Injection and Phasing: Back-feed 120 V or 240 V into the secondary power winding with the primary isolated to confirm circuit breaker trip operations, interlocks, and automatic transfer switch (ATS) operation with the emergency standby supply.
Next steps: specifying and sourcing
When specifying an SSVT for upcoming transmission or substation projects, compile comprehensive single-line diagrams, nominal primary system voltages, maximum fault levels, environmental pollution levels, and auxiliary load schedules. Our engineering team assists consultants, EPC contractors, and network operators in configuring tailored auxiliary power solutions. Review our complete range of turnkey transformer substations and high-reliability HV/LV switchgear. Submit your technical specifications, line diagrams, and tender requirements directly to our engineering desk via the substation quotation portal for comprehensive engineering evaluations and equipment schedules.
Frequently asked questions
What is the difference between an SSVT and a standard VT?
A standard voltage transformer supplies measurement signals up to roughly 1 kVA for protection and metering circuits. A station service voltage transformer incorporates heavy-gauge windings and a larger magnetic core to supply up to 333 kVA per phase for station auxiliary power.
Can an SSVT replace a tertiary winding on a power transformer?
Yes, an SSVT replaces transformer tertiary power windings, eliminating failure risks such as tertiary short-circuits. It also provides low-voltage auxiliary power even when the main power transformer is taken out of service for maintenance.
What voltage classes are station service voltage transformers available in?
Station service voltage transformers are manufactured for primary system voltages from 46 kV up to 765 kV. Secondary windings provide standard station power voltages, such as 120/240 V single-phase or 480 V three-phase.
How does an SSVT handle ferroresonance?
Engineers mitigate ferroresonance by adding passive damping resistors across broken-delta auxiliary windings or installing external ferroresonance suppression circuits. These damping elements dissipate energy caused by oscillations between line capacitance and transformer core magnetising inductance.
Is an SSVT suitable for black-start operations?
An SSVT supports black-start operations provided the incoming high-voltage transmission line is energised from a remote source. It immediately restores AC auxiliary power to battery chargers, protection panels, and breaker mechanisms without on-site generators.
