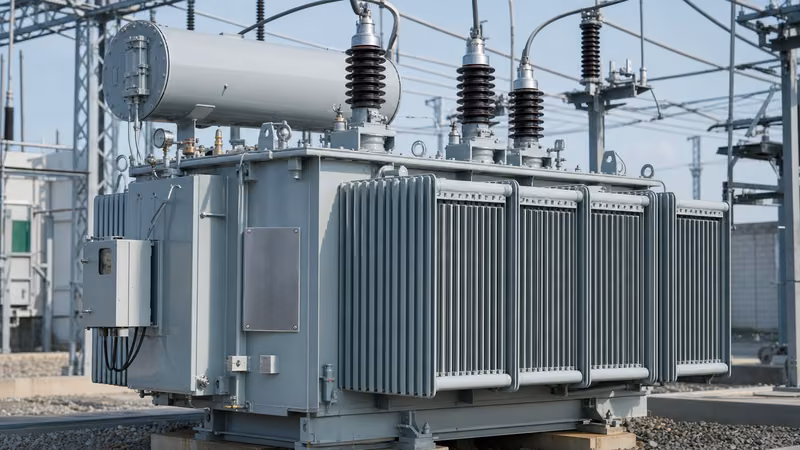

Transformer kVA: Sizing Formulas and Engineering Guide

Quick answer: Transformer kVA is the apparent power rating representing the maximum total electrical load a transformer can deliver continuously at rated voltage and frequency without exceeding thermal insulation limits. Sizing requires calculating total apparent power via the three phase transformer calculation formula, factoring in power factor, motor inrush, and environmental derating.

In electrical power distribution, selecting the correct transformer kVA ensures that downstream infrastructure operates reliably without risking dielectric degradation or nuisance protection trips. Specifying engineers must calculate steady-state demands, evaluate prospective load growth, and reconcile nameplate kVA against harsh site operating conditions. Miscalculations lead either to premature thermal breakdown or to unnecessarily high capital expenditure and elevated no-load losses.

What Is Transformer kVA and Why Is It Used Instead of kW?

A transformer kVA rating quantifies the unit's thermal and magnetic design capacity under defined voltage and current boundaries, independent of the downstream load power factor. Active power, measured in kilowatts (kW), represents only the useful energy consumed by the process. In contrast, kilovolt-amperes (kVA) represent apparent power, which is the vector combination of active power (kW) and reactive power (kVAR).

Transformers are manufactured to withstand physical constraints governed by internal losses: iron (core) losses and copper (winding) losses. Iron losses depend directly on operating voltage and magnetic flux density, whereas copper losses ($I^2R$) depend directly on the current flowing through conductors. Neither loss mechanism depends on the phase angle between voltage and current. According to IEC 60076-1 clause 4.1, the rated apparent power assigned to a winding corresponds to a continuous duty cycle under specified service conditions. If a transformer were rated in kW, a purely inductive or low-power-factor load could drive conductor currents beyond thermal limits while the apparent kW reading remained deceptively low. For a broader overview of three-phase configurations, consult our 3-phase transformer guide.

Three Phase Transformer Calculation Formula and Derivations

The three phase transformer calculation formula derives from balanced three-phase line quantities, yielding the total apparent power transferred through the core and windings. Engineers use this formula to translate measurable field currents and voltages into nameplate apparent power ratings.

For any balanced three-phase system, apparent power $S$ in kilovolt-amperes is calculated as:

S (kVA) = (√3 × V_LL × I_L) / 1000

Where:

• S = Apparent power in kilovolt-amperes (kVA)
• √3 ≈ 1.73205 (mathematical constant for three-phase systems)
• V_LL = Line-to-line RMS voltage in volts (V)
• I_L = Rated full-load line current in amperes (A)

When solving for the rated secondary line current at a specific transformer kVA, the formula rearranges as:

I_L = (S × 1000) / (√3 × V_LL)

For single-phase installations, the factor of √3 is omitted: S (kVA) = (V × I) / 1000. When sizing distribution assets feeding low-voltage infrastructure governed by IEC 61439 low-voltage switchgear standards, line-to-line voltages (such as 400 V or 480 V) must always be inserted into the three-phase equation rather than phase-to-neutral voltages.

Worked Calculation: Sizing Transformer kVA for an Industrial Plant

A practical calculation demonstrates how to determine the required transformer kVA by aggregating diverse active loads, accounting for operating power factors, and applying engineering safety margins. For automated calculations, engineers often reference our dedicated kVA calculator substation sizing guide.

Consider an industrial workshop supply fed at 400 V, 50 Hz, with the following load profile:

• Continuous motor loads: 280 kW at an average lagging power factor of 0.82
• Linear heating and lighting loads: 65 kW at unity power factor (1.00)
• DC power supplies and variable-speed drives: 45 kW at a displacement power factor of 0.90
• Largest single direct-on-line (DOL) motor: 55 kW motor with a starting code multiplier of 6.0 × full-load current

Step-by-step sizing calculation:

1. Calculate continuous apparent power per load:
   Motors: $S_1 = 280 \text{ kW} / 0.82 = 341.46 \text{ kVA}$ (Reactive load: $Q_1 = \sqrt{341.46^2 - 280^2} = 195.42 \text{ kVAR}$)
   Heating/Lighting: $S_2 = 65 \text{ kW} / 1.00 = 65.00 \text{ kVA}$ ($Q_2 = 0 \text{ kVAR}$)
   VSD loads: $S_3 = 45 \text{ kW} / 0.90 = 50.00 \text{ kVA}$ (Reactive load: $Q_3 = \sqrt{50.00^2 - 45^2} = 21.79 \text{ kVAR}$)
2. Sum vector components:
   Total Active Power ($P_{total}$) = $280 + 65 + 45 = 390.00 \text{ kW}$
   Total Reactive Power ($Q_{total}$) = $195.42 + 0 + 21.79 = 217.21 \text{ kVAR}$
   Total Steady-State Apparent Power: $S_{total} = \sqrt{390.00^2 + 217.21^2} = 446.33 \text{ kVA}$
3. Incorporate future expansion margin:
   Applying a standard 20 per cent expansion margin yields: $446.33 \times 1.20 = 535.60 \text{ kVA}$.
4. Verify motor starting transient voltage drop:
   The 55 kW motor running full-load current at 400 V is approximately 98 A; starting draw equals $98 \times 6.0 = 588 \text{ A}$. Starting apparent power is $\sqrt{3} \times 400 \times 588 / 1000 = 407.38 \text{ kVA}$. On a 630 kVA transformer with an impedance voltage of 4.0 per cent, the maximum instantaneous voltage dip remains under 7.5 per cent, which complies with IEEE 141 recommendations.

Conclusion: The plant requires a standard rating of 630 kVA.

Standard Transformer kVA Ratings and Technical Parameters

Standard transformer kVA ratings follow preferred numerical series established by international standards committees to streamline manufacturing, interchangeability, and switchgear coordination. IEC 60076-1 Table 1 and ANSI C57.12.00 outline standardized distribution ratings across global networks.

Selecting an off-the-shelf standard rating shortens lead times and lowers manufacturing cost compared to non-standard ratings. The table below outlines standard ratings alongside typical full-load currents at common industrial distribution voltages and impedance voltage (%Z) values according to IEC 60076-5.

For large industrial plants integrating packaging substations, engineers frequently configure these units directly within unit substation installations to minimise low-voltage busbar runs.

Critical Factors Affecting Field Transformer kVA Delivery

Field ambient conditions, load profiles, and non-linear harmonic currents dictate whether a transformer can continuously supply its nameplate kVA without exceeding temperature rise limits. Nameplate ratings assume standard operating conditions: an ambient temperature not exceeding 40 °C (with a daily average below 30 °C) and an altitude below 1000 metres above sea level.

Key environmental and electrical derating criteria include:

• Ambient Temperature Rise (IEC 60076-2): For ambient temperatures consistently exceeding 40 °C, the effective permissible kVA drops by approximately 1.0 to 1.5 per cent for every degree Celsius above the design limit, unless equipped with auxiliary forced-air cooling (FA/AF).
• High-Altitude Operation (IEC 60076-1 clause 2.1): Thin air reduces convective cooling effectiveness and external dielectric clearance strengths. For installations above 1000 metres, core and winding temperature rises must be derated by 2.5 per cent for every 500 metres of additional elevation on dry-type units (1.5 per cent on oil-immersed designs).
• Harmonic Heating and K-Factor: Non-linear loads produced by rectifiers, variable frequency drives, and IT infrastructure induce high-frequency eddy current losses in windings. Supplying non-linear loads with a standard distribution transformer requires derating according to IEEE C57.110 or ordering a specialised K-factor rated unit (such as K-4, K-13, or K-20).
• Load Cycle and Intermittent Duty: Peak loads occurring during cooler night-time hours permit short-term cyclic overloading under IEC 60076-7 thermal loading guidelines without reducing asset life expectancy.

Procurement and Engineering Checklist for Transformer Sizing

A structured technical checklist prevents omissions when preparing an engineering requisition or Request for Quotation (RFQ) for liquid-filled or dry-type distribution units. Supplying exact parameters to the manufacturing plant ensures that impedance, loss limits, and temperature thresholds match project realities.

1. Primary and Secondary Voltage Specifications: Define nominal voltages (e.g., 11 kV to 415 V), connection vector group (e.g., Dyn11), and required off-circuit or on-load tap changer ranges (e.g., ±2 × 2.5%).
2. Required Rating and Overload Strategy: Specify rated continuous base kVA (ONAN/AN) and stage-one forced cooling kVA (ONAF/AF) if peak shedding capability is required.
3. Impedance (%Z) Limits: Define acceptable short-circuit impedance boundaries to balance maximum fault current on downstream switchgear with secondary voltage regulation limits.
4. Loss Evaluation Values: Provide capitalised loss evaluation figures (capital cost per watt of no-load loss $P_0$ and load loss $P_k$) to guide magnetic core steel grade selection.
5. Environmental Classification: Document installation altitude, ambient temperature extremes, seismic zone, and indoor IP rating or outdoor enclosure finish.
