Low Voltage Electrical Systems: IEC Standards & Sizing

Quick answer: A low voltage electrical system encompasses all alternating current infrastructure operating up to 1000 V AC or direct current up to 1500 V DC, serving as the final power distribution tier across industrial plants, commercial facilities, and utility substations. Sizing these networks requires strict adherence to IEC 60364 installation rules and IEC 61439 switchboard manufacturing standards to guarantee short-circuit thermal withstand, selective fault clearance, and personnel safety.

Industrial facilities depend on low voltage electrical infrastructure to step down utility grid transmission levels into usable motive and control power. Unlike medium-voltage equipment designed primarily for bulk network isolation, lower-voltage networks interface directly with operational assets, variable speed drives, motor control centres (MCCs), and process equipment. Achieving an optimal design demands meticulous load-flow modeling, rigorous short-circuit analysis at busbar nodes, and systematic earthing selection to balance service continuity against arc-flash hazards.

Voltage Thresholds and Standards in Low Voltage Electrical Networks

Low voltage electrical thresholds are strictly defined by international standards bodies to delineate equipment design rules, clearances, and worker qualification tiers. Per IEC 60038 Table 1 and IEC 60364-1, alternating-current systems are categorised as low voltage when the nominal line-to-line RMS potential ranges between 50 V and 1000 V (or 120 V to 1500 V for ripple-free direct current). In North American practice governed by NFPA 70 (NEC Article 100) and IEEE standards, low voltage historically applied up to 600 V AC, though modern harmonised revisions extend this boundary to 1000 V AC to accommodate utility-scale renewable generation and battery storage busbars.

Voltages below 50 V AC fall under Extra-Low Voltage (ELV) classifications, subdivided into Safety Extra-Low Voltage (SELV) and Protective Extra-Low Voltage (PELV), where direct contact under dry conditions does not pose a lethal shock hazard. Any installation operating between 1 kV and 35 kV qualifies as medium voltage (MV). Specifying engineers must consult the primary design standards governing components within this band:

• IEC 60364: Low-voltage electrical installations (rules for verification, cable sizing, earthing arrangements, and disconnection times).
• IEC 61439 series: Low-voltage switchgear and controlgear assemblies (rules for design verification, temperature rise limits, and short-circuit withstand).
• IEC 60947 series: Low-voltage switchgear and controlgear components (circuit breakers, disconnectors, contactors, and soft starters).
• NFPA 70E / IEEE 1584: Standard for Electrical Safety in the Workplace and guide for performing arc-flash hazard calculations.

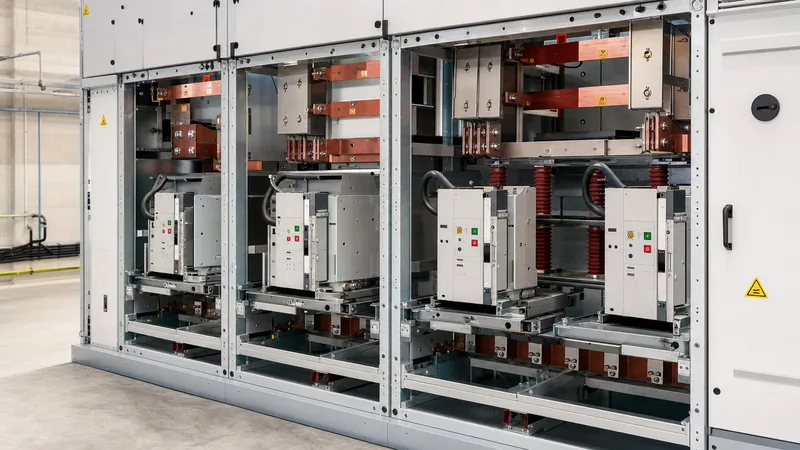

Low Voltage Electrical Architecture and Internal Form Separation

The architecture of a facility-wide low voltage electrical distribution network dictates its operational resilience, maintenance flexibility, and arc containment profile. Typical configurations originate at the secondary winding of a step-down distribution transformer or unit substation, transitioning through a main low-voltage switchboard before feeding sub-distribution panels, final branch circuits, and critical motor control systems. For deeper context on primary assembly layouts, review our low voltage panel engineering guide.

To protect maintenance technicians during partial de-energisation and prevent internal arc propagation, IEC 61439-2 defines forms of internal separation. These forms isolate three critical elements: busbars, functional units (such as circuit breakers and starters), and cable termination areas:

• Form 1: No internal separation between busbars, functional units, or terminals. Common only in basic wall-mounted sub-distribution boards.
• Form 2 (2a / 2b): Separation of busbars from functional units. In Form 2b, terminals are separated from the main busbars.
• Form 3 (3a / 3b): Separation of busbars from functional units, and individual separation of functional units from one another. Terminals for external conductors remain common to functional units.
• Form 4 (4a / 4b): Complete separation of busbars from functional units, functional units from each other, and individual separation of external termination compartments for each functional unit. Form 4b represents the standard for heavy process industries, power plants, and marine systems.

Adhering to high-integrity separation criteria detailed in the IEC 61439 engineering guide ensures that pulling a new feeder cable or swapping a withdrawable starter bucket can be executed without taking the entire main busbar offline.

Designing and Sizing a Low Voltage Circuit: Engineering Methodology

Designing an industrial low voltage circuit requires a disciplined, sequential calculation process to ensure continuous current carriage, thermal protection under bolted faults, and compliance with statutory voltage drop limits. Omitting any phase of this workflow risks cable insulation failure, nuisance tripping, or catastrophic switchgear damage during downstream short circuits. For component selection criteria, reference our low voltage circuit breaker guide.

1. Determine Design Current (Ib): Calculate the continuous full-load operating current based on the nameplate kVA or kW rating of the connected load, incorporating continuous duty factors, diversity factors, and the operational power factor ($\cos\phi$).
2. Select Protective Device Rating (In): Choose a protective device (such as an MCCB or ACB) whose nominal continuous rating meets the condition: $I_b \le I_n \le I_z$, where $I_z$ represents the derated current-carrying capacity of the selected cable.
3. Apply Conductor Derating Factors: Calculate the effective current capacity of the candidate cable by applying correction factors for ambient installation temperature ($k_t$), grouping or bunched tray routing ($k_g$), and thermal soil resistivity ($k_s$) per IEC 60364-5-52 tables: $I_z = I_{base} \times k_t \times k_g \times k_s$.
4. Evaluate Voltage Drop: Verify that the steady-state running voltage drop ($\Delta V$) between the main board and the furthest load remains within standard limits (maximum 3% for lighting circuits, 5% for industrial motive power circuits per IEC 60364-5-52 normative Annex G).
5. Verify Short-Circuit Thermal Withstand: Calculate the minimum conductor cross-sectional area ($S$) capable of withstanding the energy let-through ($I^2t$) of the protective device clearing the fault under adiabatic conditions using the formula: $S \ge \frac{\sqrt{I_{sc}^2 \times t}}{k}$, where $k$ is the conductor thermal constant (143 for PVC-insulated copper, 176 for XLPE-insulated copper).

Worked Calculation: Fault Level and Voltage Drop for a 400 V Feeder

Engineering a dependable low voltage circuit requires validating prospective short-circuit currents and operational voltage drop against concrete site parameters. Consider a dedicated motor control centre fed directly from a secondary substation transformer.

Input Parameters:

• Transformer Rating ($S_n$): 1000 kVA
• Secondary Voltage ($U_n$): 400 V (3-phase, 50 Hz, phase-to-phase)
• Transformer Impedance ($u_k$ or $Z\%$): 5.0%
• Feeder Cable: 45 metres of 4-core copper conductor with XLPE insulation, tray-mounted (flat touching).
• Connected Load: 250 kW induction motor running at full load ($\cos\phi = 0.85$, efficiency $\eta = 0.94$).
• Protective Device: Air Circuit Breaker with electronic trip unit, total clearing time $t = 40\text{ ms}$ ($0.04\text{ s}$).

Step 1: Transformer Rated Secondary Current ($I_{nt}$)

$$I_{nt} = \frac{S_n}{\sqrt{3} \times U_n} = \frac{1,000,000}{\sqrt{3} \times 400} = 1443.38\text{ A}$$

Step 2: Prospective Symmetrical Short-Circuit Current ($I_{sc}$) at Transformer Terminals

Assuming an infinite primary utility source for conservative calculation:

$$I_{sc} = \frac{I_{nt} \times 100}{u_k} = \frac{1443.38 \times 100}{5.0} = 28,867.5\text{ A} \approx 28.87\text{ kA}$$

Consequently, all main busbars and incomer switchgear must maintain a minimum rated short-time withstand current ($I_{cw}$) of 30 kA for 1 second, or possess a conditional short-circuit rating exceeding 35 kA.

Step 3: Motor Operating Current ($I_b$) and Conductor Sizing

$$I_b = \frac{P}{\sqrt{3} \times U_n \times \cos\phi \times \eta} = \frac{250,000}{\sqrt{3} \times 400 \times 0.85 \times 0.94} = 451.6\text{ A}$$

Two parallel runs of $3 \times 150\text{ mm}^2 + 95\text{ mm}^2$ copper XLPE cables are selected. Each run carries an adjusted continuous capacity of approximately 275 A in tray configuration (total $I_z = 550\text{ A}$), safely satisfying $I_b \le I_z$.

Step 4: Conductor Thermal Withstand Check

Checking adiabatic short-circuit tolerance using the copper XLPE factor ($k = 176$):

$$S_{min} = \frac{\sqrt{I_{sc}^2 \times t}}{k} = \frac{\sqrt{(28,867.5)^2 \times 0.04}}{176} = \frac{5,773.5}{176} = 32.8\text{ mm}^2$$

The combined copper area of $300\text{ mm}^2$ (two $150\text{ mm}^2$ conductors per phase) far exceeds the $32.8\text{ mm}^2$ threshold, guaranteeing robust thermal integrity during fault clearance.

Step 5: Steady-State Voltage Drop ($\Delta V$)

With single-conductor AC resistance $R = 0.153\ \Omega/\text{km}$ and reactance $X = 0.08\ \Omega/\text{km}$, the parallel circuit exhibits $R_{eq} = 0.0765\ \Omega/\text{km}$ and $X_{eq} = 0.04\ \Omega/\text{km}$. For $L = 0.045\text{ km}$:

$$\Delta V = \sqrt{3} \times I_b \times L \times (R_{eq}\cos\phi + X_{eq}\sin\phi)$$

$$\Delta V = \sqrt{3} \times 451.6 \times 0.045 \times (0.0765 \times 0.85 + 0.04 \times 0.527) = 35.19 \times (0.0650 + 0.0211) = 3.03\text{ V}$$

$$\% \Delta V = \left(\frac{3.03}{400}\right) \times 100 = 0.76\%$$

This falls well within the maximum permissible 5.0% threshold mandated by IEC 60364-5-52.

Earthing Schemes and Safety Protection in Low Voltage Systems

Earthing systems dictate fault loop impedance, touch potential limits, and the operating profile of protective disconnect devices across every low voltage electrical installation. Selecting an improper configuration compromises circuit integrity and elevates life-safety hazards. IEC 60364-3 classifies three primary earthing topologies denoted by two-letter identifiers: the first letter defines the source supply relationship to earth (T = direct connection to Earth; I = isolated), while the second letter defines the exposed-conductive-parts relationship to earth (T = directly earthed; N = connected to neutral point).

To safeguard operators against severe electrical hazards and thermal release, designers must implement arc detection and isolation strategies explained in our guide to arc flash safety and switchgear design. The operational trade-offs of the standard earthing topologies are evaluated below:

Inspection and Testing Checklist for Low Voltage Assemblies

Routine verification and site acceptance testing (SAT) of low voltage electrical switchboards must adhere rigidly to IEC 61439-1 Clause 11 before energisation. Performing these verification steps prevents premature flashovers, unverified temperature rises, and control logic failure in operating substations.

Next steps: specifying and sourcing

When preparing engineering procurement packages for low voltage electrical infrastructure, providing precise design inputs avoids costly redesign cycles. Issue your single-line diagram (SLD), prospective fault level ($I_{cw}$/kA), required form of separation (Forms 2 through 4b), enclosure ingress rating, and metering communication protocols to our technical team. Review our factory-built HV and LV switchgear assemblies and integrated compact transformer substations to match your operational parameters. To initiate an equipment sizing evaluation or obtain a comprehensive budget estimate, submit your technical specification directly through our quotation inquiry portal.
