Generator kVA to Amps Calculator: 3-Phase Sizing Guide

Quick answer: To calculate amperes from generator kVA, use the formula I = (kVA × 1000) / (√3 × V) for three-phase systems, or I = (kVA × 1000) / V for single-phase systems, where V is line-to-line voltage. A generator kva to amps calculator provides the baseline full-load current required to coordinate protective switchgear, circuit breakers, and distribution cables.

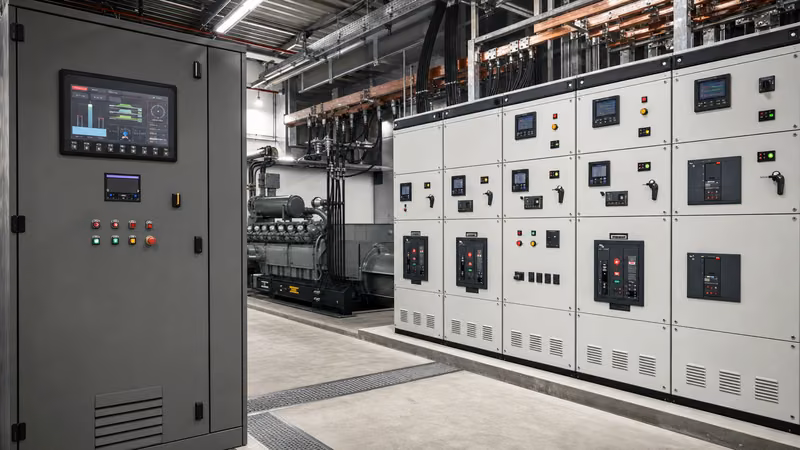

In industrial power plants, mining facilities, and commercial backup installations, matching alternator output to the incoming switchgear requires rigorous mathematical verification. When deploying standalone alternators or emergency backup units alongside utility feeds, electrical engineers cannot rely on rough approximations. Sizing main incoming circuit breakers, low-voltage distribution panels, and thermal overload relays depends directly on calculating full-load current under continuous and standby operating regimes.

Whether calculating rated currents for a new facility or cross-checking nameplate figures against our kVA calculator substation sizing guide, understanding the relationship between apparent power (kVA), active power (kW), line-to-line voltage, and phase current is essential. This technical guide outlines the underlying formulas, provides practical engineering tables, demonstrates worked examples such as evaluating 75 kva to amps, and details electrical protection guidelines in accordance with international standards.

How the generator kva to amps calculator formula works

The mathematical conversion of generator apparent power to rated current depends entirely on the system phase configuration and the measured voltage. Apparent power, represented in kilovolt-amperes (kVA), represents the total vector sum of active power (kW) and reactive power (kVAR) produced by the alternator windings.

For a standard three-phase alternating current (AC) alternator, the line current is distributed across three phase conductors separated by 120 electrical degrees. The mathematical expression to determine full-load rated current per phase is:

Three-Phase Formula:

I (Amperes) = (kVA × 1000) / (√3 × V_L-L)

Where:

• I = Rated line current in Amperes (A)
• kVA = Alternator apparent power rating (1 kVA = 1000 VA)
• √3 = Mathematical constant approximately equal to 1.73205
• V_L-L = Root-mean-square (RMS) line-to-line voltage in Volts (V)

For single-phase alternating current generators, common in small auxiliary systems, light commercial equipment, or rural electrification, the square root of three is omitted because there is only one voltage vector feeding the circuit:

Single-Phase Formula:

I (Amperes) = (kVA × 1000) / V_L-N

Where V_L-N represents the line-to-neutral RMS voltage (typically 120 V, 220 V, 230 V, or 240 V). Engineers carrying out switchboard design can review our in-depth amps to kVA conversion guide for reciprocal formulas and system balance equations.

Three-phase generator kVA to amps conversion table

The following engineering reference table presents full-load line currents calculated across typical industrial generator capacities and standard low-voltage distribution voltages. All calculations use the standard three-phase line-to-line formula with unity decimal precision.

These values represent the continuous current carrying capacity required for the terminal outgoing circuit breaker and busbars under balanced load conditions. For applications involving stepped distribution voltages through dedicated step-up or step-down units, refer to our companion transformer sizing calculator guide.

Step-by-step worked calculation: 75 kVA to amps

A worked example demonstrates how to calculate rated current for a mid-scale standby installation, specifically converting 75 kva to amps across different common supply architectures. Consider a project requiring an auxiliary emergency generator rated at 75 kVA, 0.8 power factor, configured for dual-voltage operation in industrial facilities.

1. Identify system parameters: Total apparent power S = 75 kVA. Target line-to-line voltages: 400 V (standard European/IEC grid) and 480 V (standard North American grid).
2. Calculate baseline denominator: Determine the three-phase multiplier (√3 × V). For 400 V: 1.73205 × 400 V = 692.82 V. For 480 V: 1.73205 × 480 V = 831.38 V.
3. Calculate current at 400 V: I = (75 × 1000) / 692.82 = 75,000 / 692.82 = 108.25 A.
4. Calculate current at 480 V: I = (75 × 1000) / 831.38 = 75,000 / 831.38 = 90.21 A.
5. Calculate single-phase equivalent (230 V): For single-phase lighting tapped directly from a single phase winding: I = 75,000 / 230 = 326.09 A.

This calculation verifies that an engineer specifying an incoming moulded case circuit breaker (MCCB) for a 400 V system must select a frame size above 108.25 A, typically choosing a 125 A or 160 A adjustable trip unit to accommodate standard thermal deratings and motor starting inrush.

Conversion kva a amperes and power factor considerations

When international procurement teams handle bilingual specifications requiring conversion kva a amperes, confusion often arises regarding active power (kW) and apparent power (kVA). Alternators are wound, rated, and thermally limited based on kVA and output amperes, not mechanical kilowatts.

Industrial alternating current generators are universally rated by manufacturers at a standard lagging power factor (cos φ) of 0.8 according to ISO 8528-1 clause 13. This accounts for inductive loads including squirrel-cage induction motors, fluorescent ballasts, and dry-type transformers. The relationship between active power and apparent power is defined by:

P (kW) = S (kVA) × cos φ

For a 75 kVA machine operating at 0.8 power factor, the real engine shaft power demanded from the prime mover is: 75 kVA × 0.8 = 60 kW (approximately 80.5 brake horsepower before alternator efficiency losses). However, regardless of whether the operating load runs at unity power factor (1.0 pf resistive heaters, yielding 75 kW) or 0.8 pf (60 kW with inductive motors), the current circulating through the stator copper windings cannot exceed the calculated full-load current (108.25 A at 400 V). Exceeding this amperage induces excessive stator heating (I²R losses) and accelerates dielectric breakdown of winding insulation conforming to IEC 60034-1 thermal limits.

Practical switchgear and protection sizing rules

Sizing switchgear downstream of an alternator requires careful consideration of continuous thermal capacity, ambient derating, and short-circuit withstand capabilities. Connecting a generator output directly into low-voltage distribution switchboards must comply with strict protection standards.

Under National Electrical Code (NEC/NFPA 70) Article 445.13, generator terminal conductors must carry an ampacity of not less than 115% of the nameplate full-load current rating where design and operation prevent overloading. In European and international projects governed by IEC 60364-5-52 and IEC 61439 low-voltage switchgear engineering standards, conductors and incoming circuit breakers are sized according to rated continuous thermal current (I_th) adjusted for ambient temperature, grouping, and installation method.

Engineers must also evaluate the generator subtransient reactance (X"d), which generally ranges between 12% and 18% for salient pole alternators. Unlike the infinite utility grid, where prospective short-circuit currents can exceed 50 kA, a generator sustained fault current rarely exceeds 3 to 5 times its rated full-load amperes. Consequently, incoming circuit breaker electronic trip units (ETUs) must feature adjustable short-time delay (Isd) and instantaneous (Ii) pickup settings low enough to detect internal alternator faults, yet selective enough to coordinate with downstream branch feeders.

Specification checklist for generator-switchgear integration

When specifying generator connections within factory acceptance testing (FAT) protocols and site installation tenders, include these precise electrical and mechanical parameters:

To ensure system safety, confirm whether the automatic transfer switch (ATS) incorporates overlapping neutral contacts. Switched neutrals prevent ground loop currents and spurious tripping of residual current devices (RCDs) during transfers between utility transformers and emergency generators.

Next steps: specifying and sourcing

Accurately determining rated amperage using a generator kva to amps calculator is the first step in engineering a resilient power distribution network. To obtain an engineered proposal for your project, supply our technical team with your site single-line diagram (SLD), planned generator ratings, ambient temperature profile, and utility fault levels.

We manufacture custom integrated power infrastructure, including complete low-voltage and medium-voltage switchgear assemblies, synchronising control panels, and prefabricated compact transformer substations tested to IEC and IEEE standards. Contact our application engineering department at inquiry@electrical-equipment-factory.com or submit your site data via our dedicated quotation request page for comprehensive design assistance and competitive equipment pricing.
